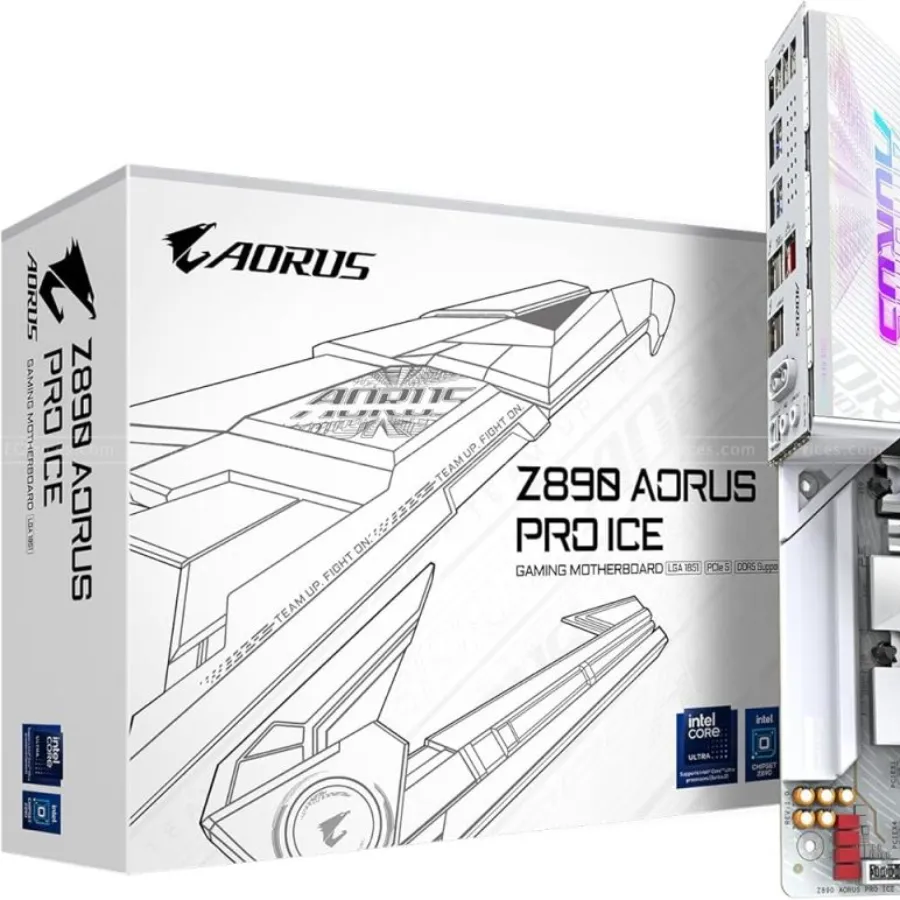

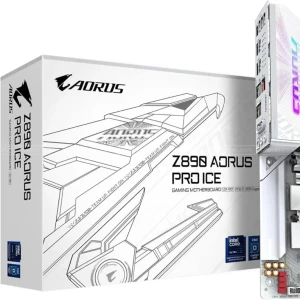

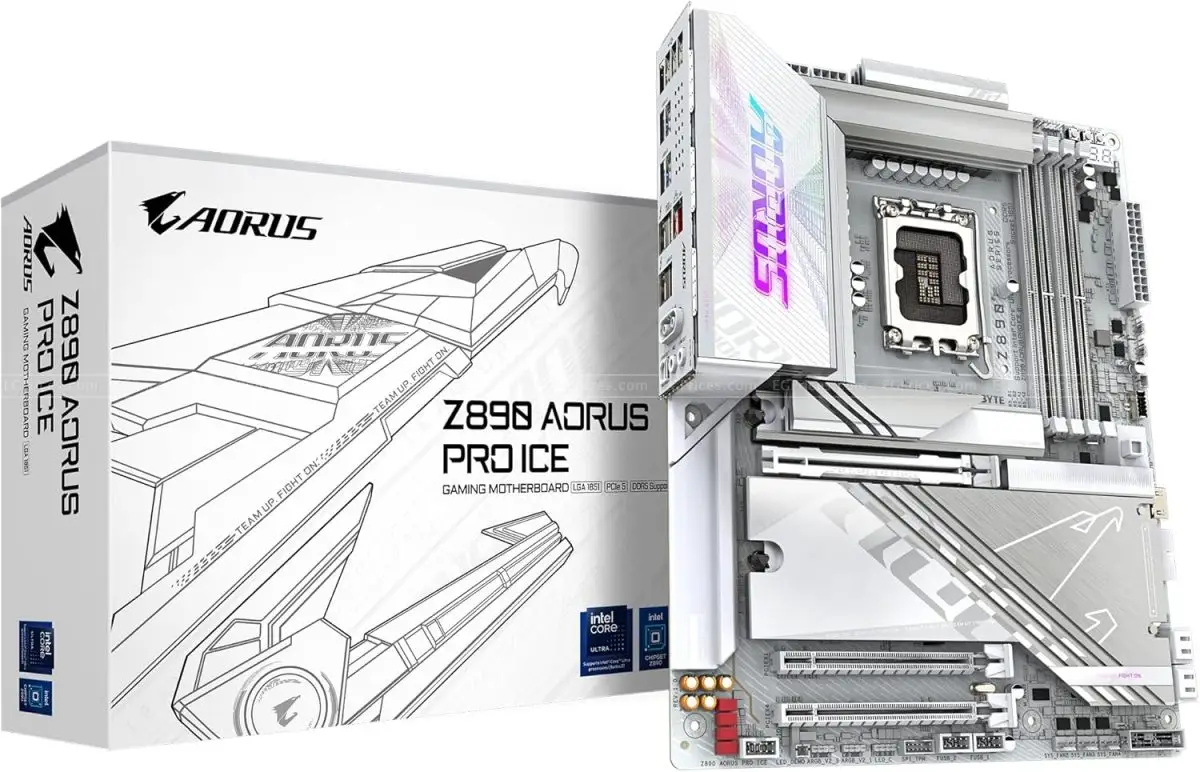

Gigabyte Z890 AORUS PRO ICE Motherboard specs:

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU
• * Please refer to “CPU Support List” for more information.

• Intel® Z890 Express Chipset

• Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Support CUDIMM memory module
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• Integrated Graphics Processor-Intel® HD Graphics support:
• – 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
• (Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.)When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).
• When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).
• * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)
• * Support for DisplayPort 1.4 version and HDCP 2.3- 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
• * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
• Support for up to triple-display at the same time

• Realtek® ALC1220 CODEC
• * The back panel line out jack supports DSD audio.High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out

• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

• Intel® Wi-Fi 7 BE200
• – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• – BLUETOOTH 5.4
• – Support for 11be 320MHz wireless standard
• (Actual data rate may vary depending on environment and equipment.)
• * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.

• CPU:
• – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:
• – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

• CPU:
• – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• Chipset:
• – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• – 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• – 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• CPU:
• – 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
• *Support up to 40Gbps with Thunderbolt devices
• *Support up to 20Gbps with USB4 devices
• *Support up to 10Gbps with USB 3.2 devicesChipset:
• – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
• – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+3 USB 2.0 Hubs:
• – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 5 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x HDMI port (Note)
• 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x noise detection header
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper(Note) Actual support may vary by CPU.

• 4 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 4 x USB 3.2 Gen 1 ports
• 2 x Intel® Thunderbolt™ 4 (Note) connectors (USB Type-C® ports)
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks(Note) Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit

• ATX Form Factor; 30.5cm x 24.4cm
