CPU & Chipset

Socket: LGA1851 (Supports Intel® Core™ Ultra processors)

Chipset: Intel® Z890 Express

L3 Cache: Varies by CPU

Memory

Type: DDR5

Speeds: Up to 9200MT/s (O.C.)

Capacity: Up to 256GB (4 x 64GB DIMMs)

Features: Dual-channel architecture, ECC/Non-ECC support, XMP profiles.

Graphics

Integrated Intel® HD Graphics:

1x USB4 Type-C: 3840x2160@144Hz (DisplayPort 2.1)

1x DisplayPort: 3840x2160@144Hz (DisplayPort 2.1)

Audio

Codec: Realtek® HD Audio

Channels: 2/4/5.1/7.1 (Configurable via software)

Networking

LAN: Realtek® 2.5GbE

Wi-Fi: MediaTek Wi-Fi 7 (MT7925 or RTL8922AE)

Frequencies: 2.4/5/6 GHz

Bluetooth 5.4

Note: Windows 11 SV3 required for Wi-Fi 7 features.

Expansion Slots

CPU:

1x PCIe 5.0 x16 (Graphics/Storage)

Chipset:

2x PCIe 4.0 x4

Storage

M.2 Slots:

CPU: 1x PCIe 5.0, 1x PCIe 4.0

Chipset: 1x PCIe 4.0, 1x PCIe 4.0/SATA

SATA Ports: 4x SATA 6Gb/s

RAID Support: NVMe & SATA (RAID 0/1/5/10)

USB Ports

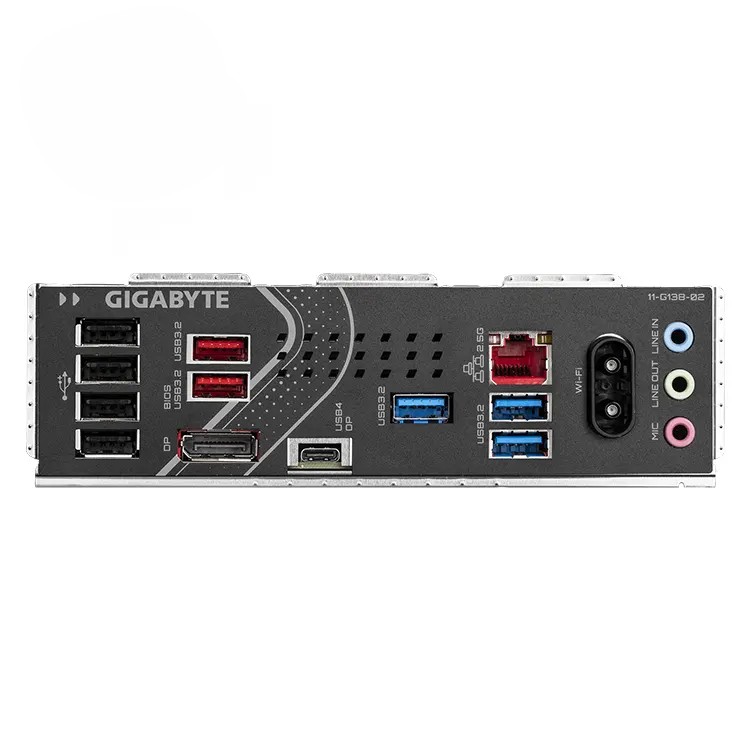

Back Panel:

1x USB4 Type-C

2x USB 3.2 Gen 2 (Type-A)

3x USB 3.2 Gen 1

4x USB 2.0

Internal:

USB Type-C (USB 3.2 Gen 2 header)

2x USB 3.2 Gen 1 headers

2x USB 2.0 headers

Cooling & Monitoring

6 Fan Headers (CPU/System/Water Cooling)

Voltage, Temperature, and Fan Speed Monitoring

BIOS

Chip: 256 Mbit Flash (AMI UEFI BIOS)

Features: Q-Flash, Q-Flash Plus

Form Factor

Type: ATX (30.5 x 24.4 cm)
