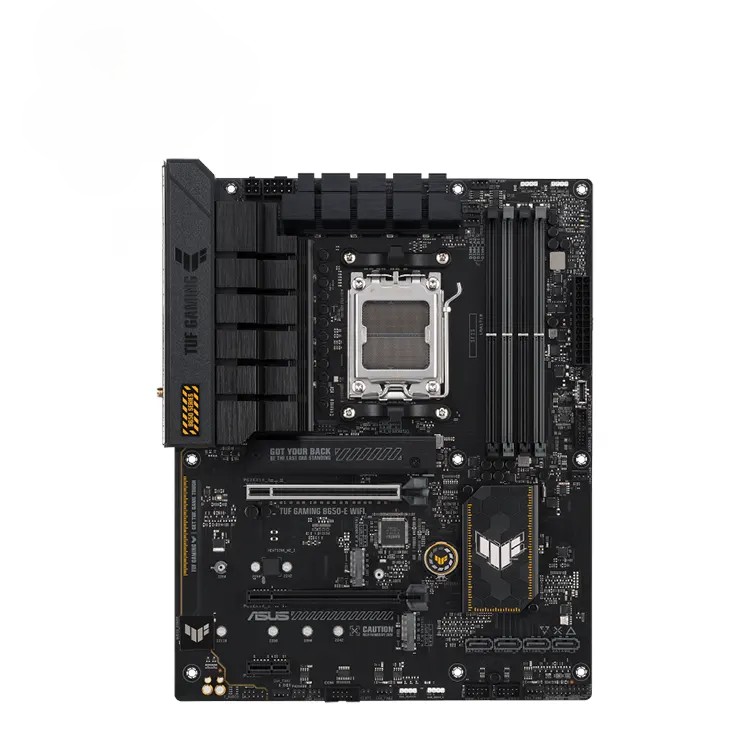

Model:

TUF GAMING B650-E WIFI

CPU Support:

AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors

Refer to the official ASUS website for the CPU support list

Chipset:

AMD B650

Memory:

4 x DIMM, Max. 192GB, DDR5

Overclocking support for DDR5 speeds from 5200MHz to 8000+MHz

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

Graphics:

1 x DisplayPort (Supports max. 8K@60Hz, DisplayPort 1.4)

1 x HDMI® port (Supports 4K@60Hz, HDMI 2.1)

Expansion Slots:

1 x PCIe 4.0/3.0 x16 slot for AMD Ryzen™ 9000 & 7000 Series processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode) for AMD Ryzen™ 8000 Series processors

1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) for AMD B650 Chipset

1 x PCIe 4.0/3.0 x1 slot

Storage:

3 x M.2 slots (supporting PCIe 5.0 x4 mode for M.2_1 and PCIe 4.0 x4 mode for M.2_2 and M.2_3)

4 x SATA 6Gb/s ports

RAID support (PCIe and SATA RAID 0/1/10 via AMD RAIDXpert2)

Ethernet:

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2x2, supporting 2.4/5/6GHz frequency bands

Bluetooth® v5.3

USB Ports:

Rear USB:

2 x USB 10Gbps (1 x Type-A + 1 x USB Type-C®)

3 x USB 5Gbps (Type-A)

3 x USB 2.0 (Type-A)

Front USB:

1 x USB 20Gbps (supports USB Type-C®)

1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit/192 kHz playback

Audio features include:

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

Audio cover

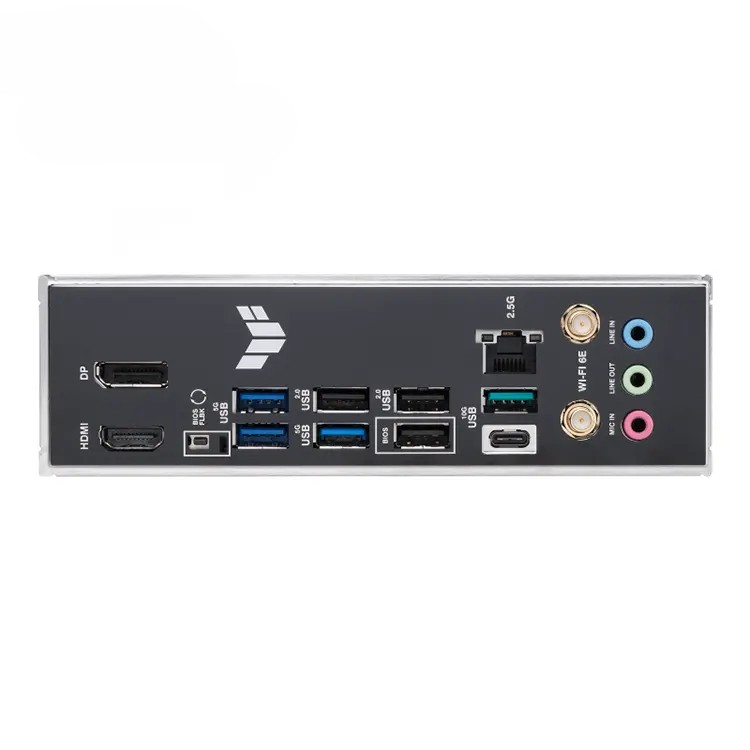

Back Panel I/O Ports:

2 x USB 10Gbps (1 x Type-A + 1 x USB Type-C®)

3 x USB 5Gbps (Type-A)

3 x USB 2.0 (Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Internal I/O Connectors:

Fan and Cooling:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power:

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage:

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB:

1 x USB 20Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Special Features:

ASUS TUF PROTECTION:

DIGI+ VRM Digital Power Design with DrMOS

Enhanced DRAM Overcurrent Protection

ESD Guards

TUF LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design:

M.2 Q-Latch

Q-DIMM

Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])

Q-Slot

ASUS Thermal Solution:

M.2 heatsink

VRM heatsink

ASUS EZ DIY:

BIOS FlashBack™ button

BIOS FlashBack™ LED

ProCool

Pre-mounted I/O shield

SafeDIMM

Aura Sync:

Aura RGB header(s)

Addressable Gen 2 header(s)

Software Features:

ASUS Exclusive Software:

Armoury Crate

Aura Creator

Aura Sync

Fan Xpert 4

Power Saving

Two-Way AI Noise Cancellation

AI Suite 3:

TurboV EVO

DIGI+ VRM

PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

ASUS EZ DIY features:

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

Operating System Support:

Windows® 11

Windows® 10 64-bit

Form Factor:

ATX

12 inch x 9.6 inch (30.5 cm x 24.4 cm)
