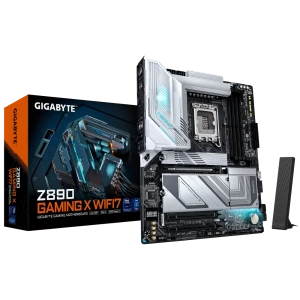

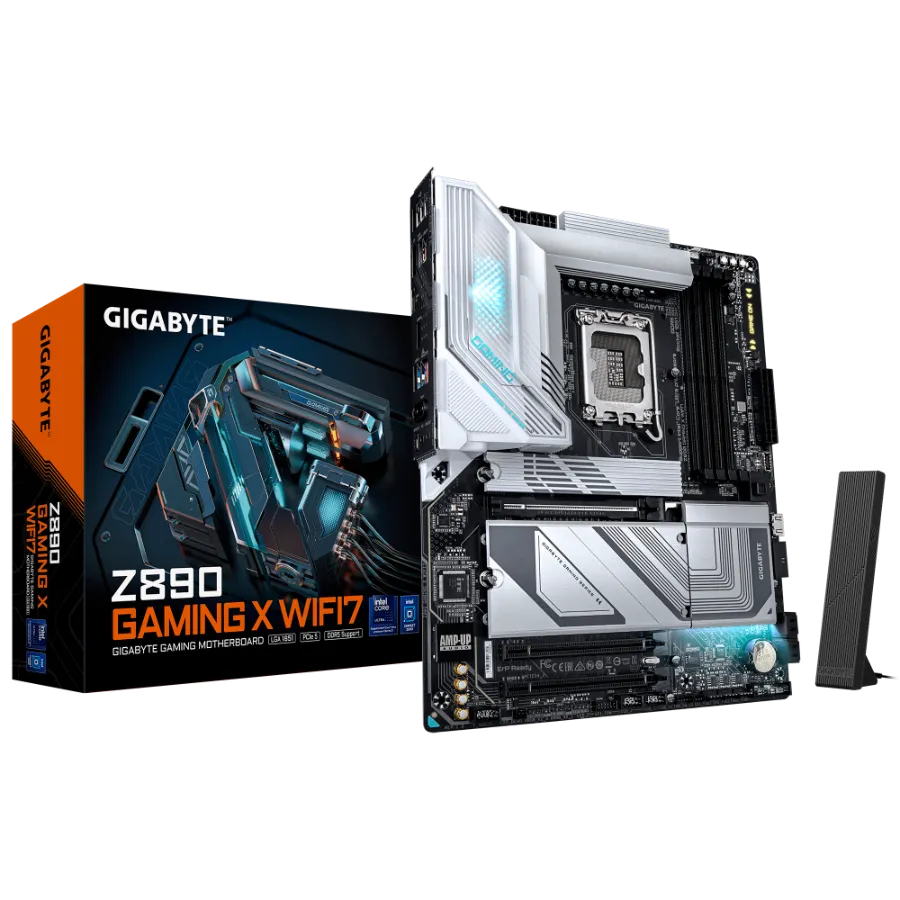

GIGABYTE Z890 Gaming X WIFI7 Socket LGA 1851 Motherboard

Volar - GIGABYTE Z890 Gaming X WIFI7 Socket LGA 1851 Motherboard

المنتج	الكمية
GIGABYTE Z890 Gaming X WIFI7 Socket LGA 1851 Motherboard		EGP 14,000 ~~14,700~~

فترة الضمان

ضمان المنتج سنتين

وصف المنتج
- CPU
- LGA1851 socket: Support for Intel® Core™ Ultra Processors
- L3 cache varies with CPU
- * Please refer to “CPU Support List” for more information.
- Chipset
- Intel® Z890 Express Chipset
- Memory
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support CUDIMM memory module
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
- * Support for DisplayPort 2.1 version
- – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
- * Support for DisplayPort 2.1 version
- – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
- * Support for HDMI 1.4 version
- (Graphics specifications may vary depending on CPU support.)
- Support for up to 3 displays at the same time
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication module
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- – BLUETOOTH 5.4
- – Support for 11be 160MHz wireless standard
- Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- – BLUETOOTH 5.4
- – Support for 11be 160MHz wireless standard
- (Actual data rate may vary depending on environment and equipment.)
- * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
- ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
- Expansion Slots
- CPU:
- – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
- Storage Interface
- CPU:
- – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
- Chipset:
- – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- – 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- USB
- CPU:
- – 1 x USB4® USB Type-C® port on the back panel
- Chipset:
- – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- Chipset+2 USB 2.0 Hubs:
- – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x HDMI port (Note)
- 1 x power button
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- (Note) Actual support may vary by CPU.
- Back Panel Connectors
- 1 x USB4® USB Type-C® port (DisplayPort (Note))
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x DisplayPort (Note)
- 2 x antenna connectors (2T2R)
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
- (Note) Actual support may vary by CPU.
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- ater cooling flow rate detection
- Fan fail warning
- Fan speed control
- * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC)
- * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
