CPU

Socket: LGA1851, supporting Intel® Core™ Ultra processors.

Chipset: Intel® Z890 Express Chipset.

Memory

Type: DDR5 (up to 9200MT/s with overclocking).

Capacity: 4 DIMM slots, up to 256GB total (64GB per module).

Features: Dual-channel, ECC (non-ECC mode), XMP support.

Graphics

Integrated Intel® HD Graphics (CPU-dependent).

Ports:

Thunderbolt™ 4 (DisplayPort, max res: 5120x2880@60Hz).

HDMI (1920x1080@30Hz).

DisplayPort (4096x2304@60Hz).

Triple-display support.

Audio

Realtek® ALC1220 CODEC, 7.1-channel, S/PDIF Out.

Networking

LAN: Realtek® 2.5GbE LAN.

Wi-Fi: MediaTek/Realtek Wi-Fi 7, Bluetooth 5.4 (PCB-specific).

Windows 11 SV3 required for full Wi-Fi 7 features.

Expansion Slots

PCIe:

1x PCIe 5.0 x16 for GPU/NVMe SSD.

2x PCIe 4.0 x4.

Storage

M.2 Slots: 4x M.2 (PCIe 5.0/4.0, SATA support).

SATA Ports: 4x SATA 6Gb/s.

RAID: Supports RAID 0, 1, 5, 10 (NVMe & SATA).

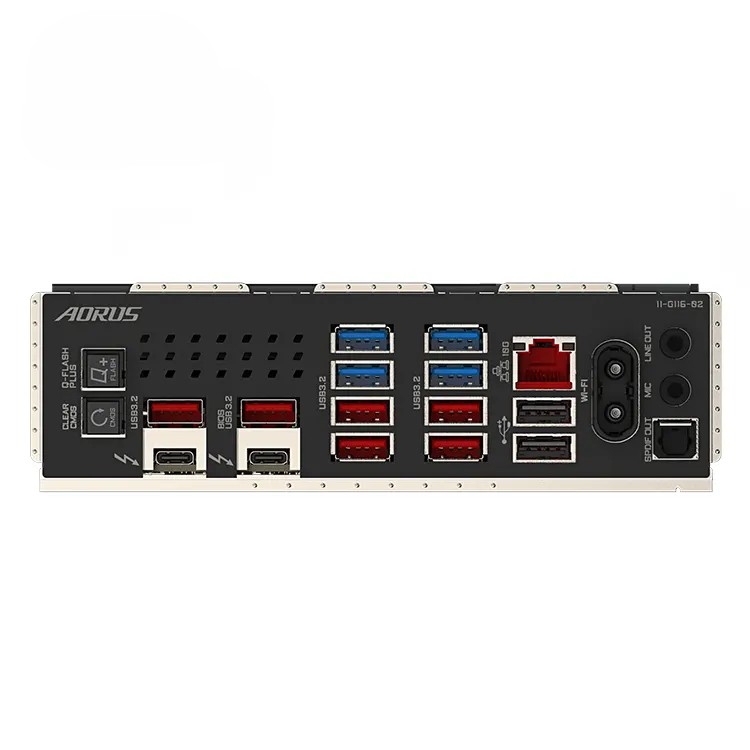

USB Ports

Thunderbolt 4: 1x (40Gbps).

USB 3.2 Gen 2: 3x (2 rear, 1 internal Type-C®).

USB 3.2 Gen 1: 5x (3 rear, 2 internal).

USB 2.0: 8x (4 rear, 4 internal).

Power Connectors

24-pin ATX, 2x 8-pin ATX 12V.

Cooling & RGB

Multiple fan/water pump headers.

3x ARGB Gen2 headers, 1x RGB header.

Special Features

Q-Flash Plus, Smart Backup, GIGABYTE Control Center.

Form Factor

ATX (30.5cm x 24.4cm).
