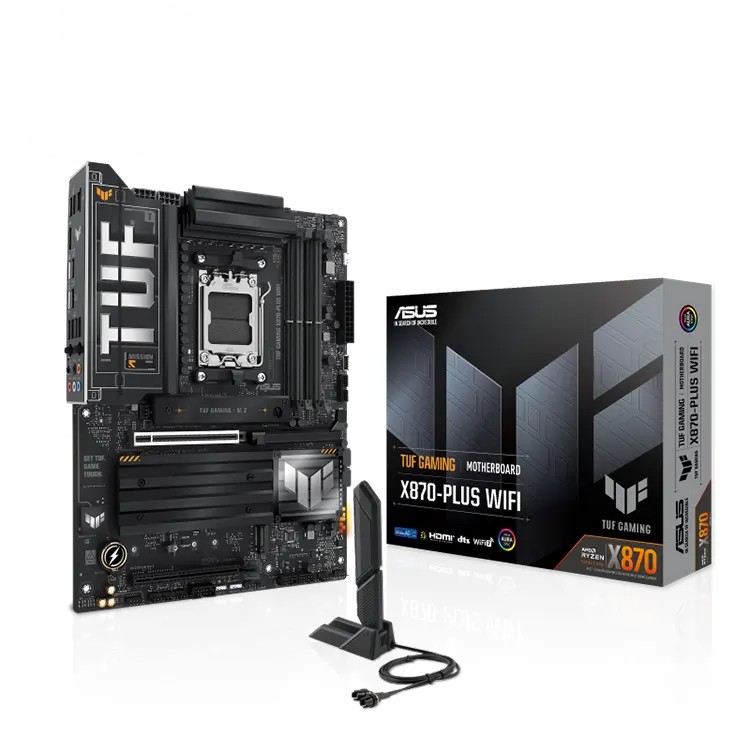

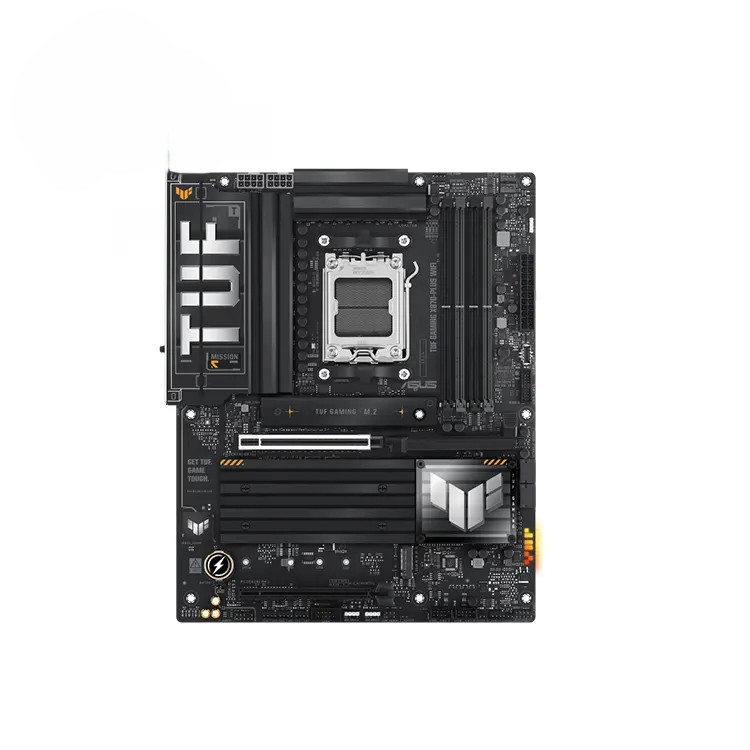

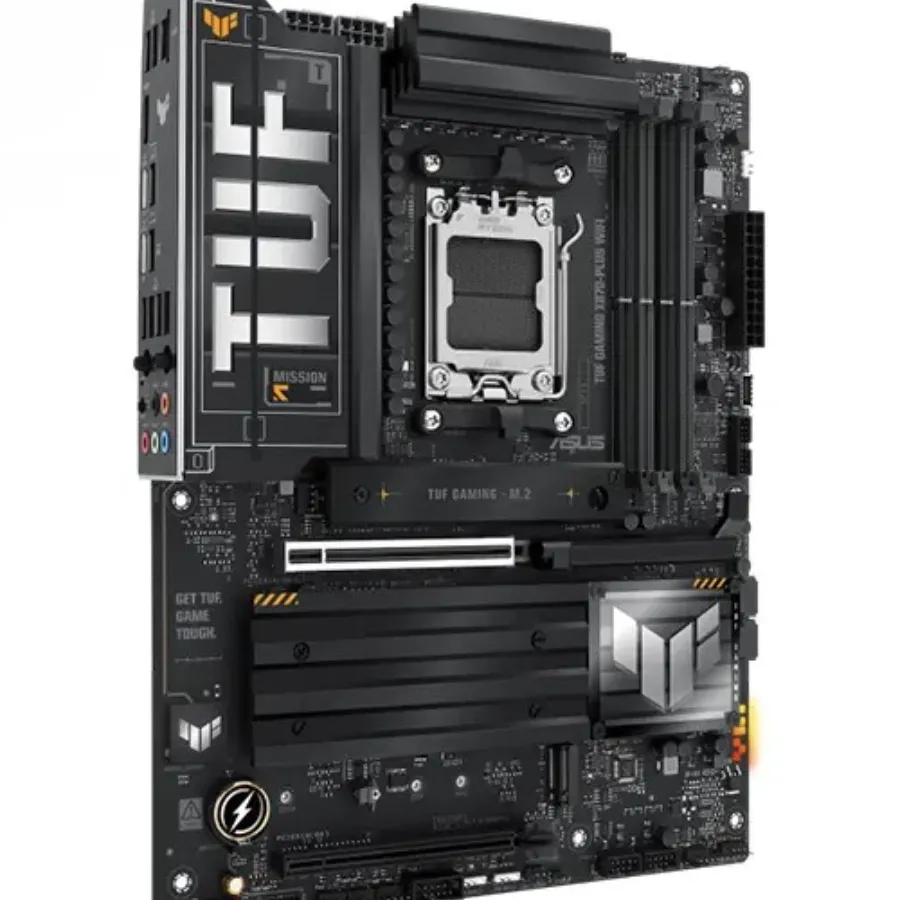

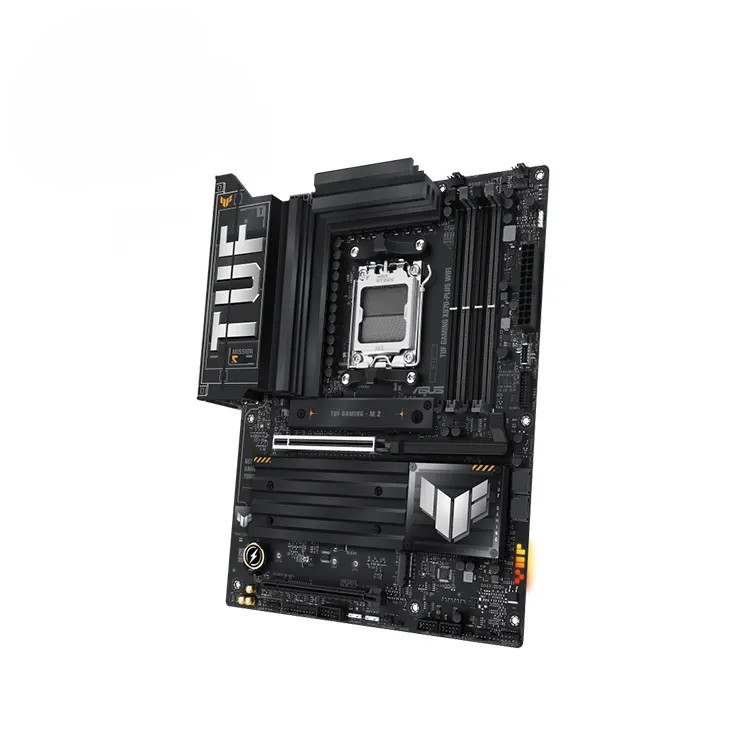

ASUS TUF GAMING X870-PLUS WIFI Motherboard Specifications

Model Information

Model: TUF GAMING X870-PLUS WIFI

Operating System: Windows 11

Form Factor: ATX (12 inch x 9.6 inch or 30.5 cm x 24.4 cm)

Key Features

CPU Compatibility:

AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.

For the latest CPU support list, visit ASUS Support.

Chipset:

AMD X870 Chipset.

Memory:

4 x DIMM slots, max. 192GB DDR5.

Supports speeds up to 8000+MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series.

Dual-channel architecture.

Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP).

Graphics:

1 x HDMI™ port (supports 4K@60Hz).

2 x USB4® (40Gbps) ports (supports USB Type-C® display outputs, max. 4K@60Hz).

Expansion Slots:

1 x PCIe 5.0 x16 slot for Ryzen™ 9000 & 7000 Series.

1 x PCIe 4.0 x16 slot for Ryzen™ 8000 Series.

1 x PCIe 4.0 x16 slot (AMD X870 Chipset).

Storage:

4 x M.2 slots and 2 x SATA 6Gb/s ports.

M.2_1 and M.2_2 support PCIe 5.0/4.0 depending on CPU type.

Ethernet:

1 x Realtek 2.5Gb Ethernet with TUF LANGuard.

Wireless & Bluetooth:

Wi-Fi 7 (2x2, up to 2.9Gbps) and Bluetooth® v5.4.

Wi-Fi 6GHz features vary by region.

USB Ports:

Rear: 10 total (including USB4® and Type-A ports).

Front: 7 total (including USB Type-C® with PD Fast-charge).

Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC.

High-quality audio features including shielding and capacitors.

Back Panel I/O Ports

2 x USB4® (40Gbps) Type-C ports

3 x USB 10Gbps Type-A ports

4 x USB 5Gbps Type-A ports

1 x USB 2.0 Type-A port

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Special Features

TUF Protection:

Includes features like DIGI+ VRM, ESD Guards, and overvoltage protection.

ASUS Q-Design:

Simplifies installation with features like M.2 Q-Latch and PCIe Slot Q-Release.

Aura Sync:

Customizable RGB lighting with addressable Gen 2 headers.

BIOS Features:

Includes FlashBack™ and EZ Flash 3.

Accessories Included

2 x SATA 6Gb/s cables

1 x ASUS WiFi Q-Antenna

1 x Quick start guide

1 x TUF GAMING sticker
