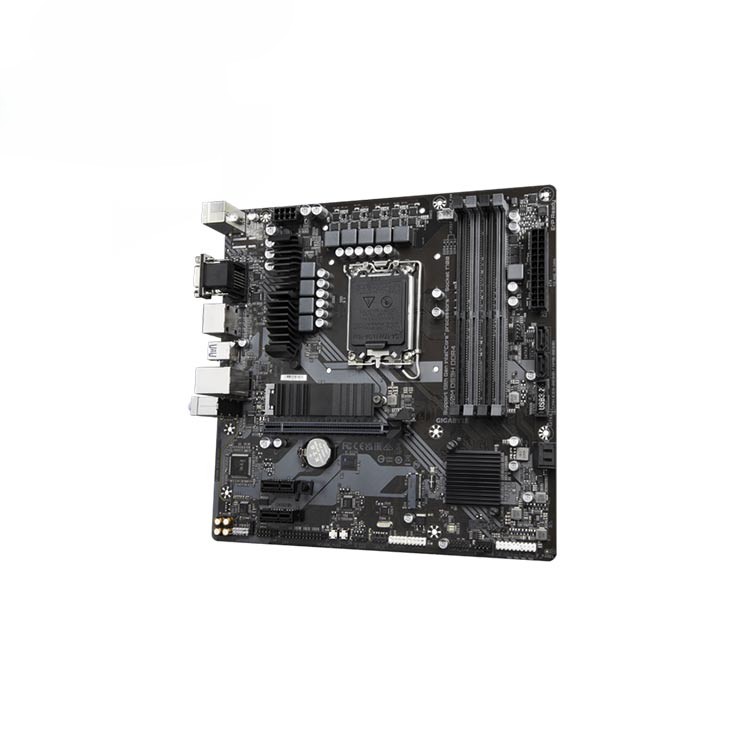

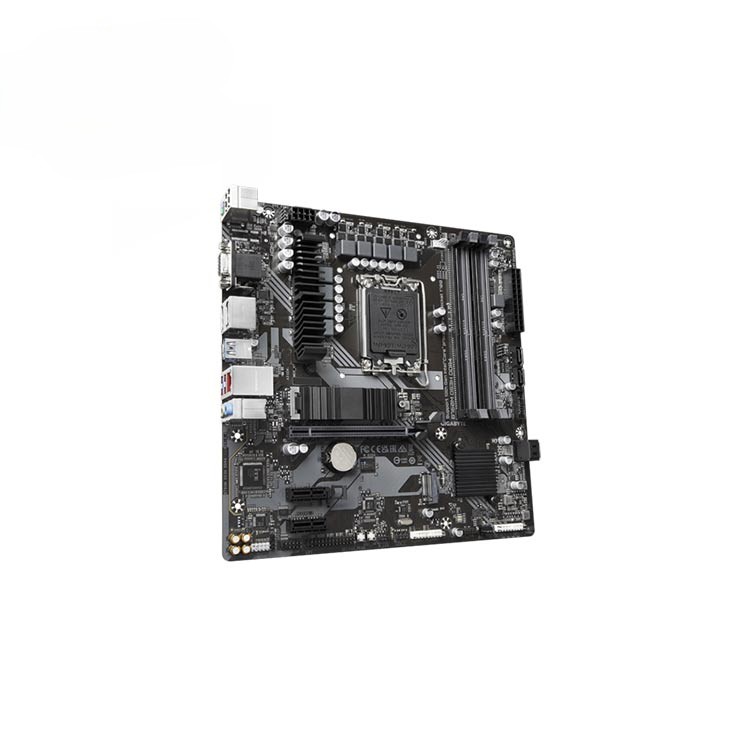

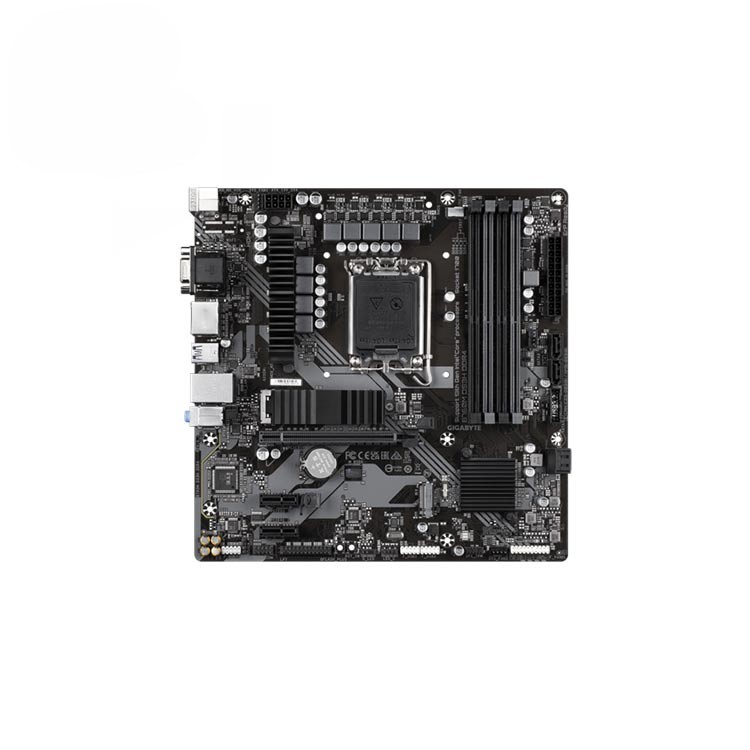

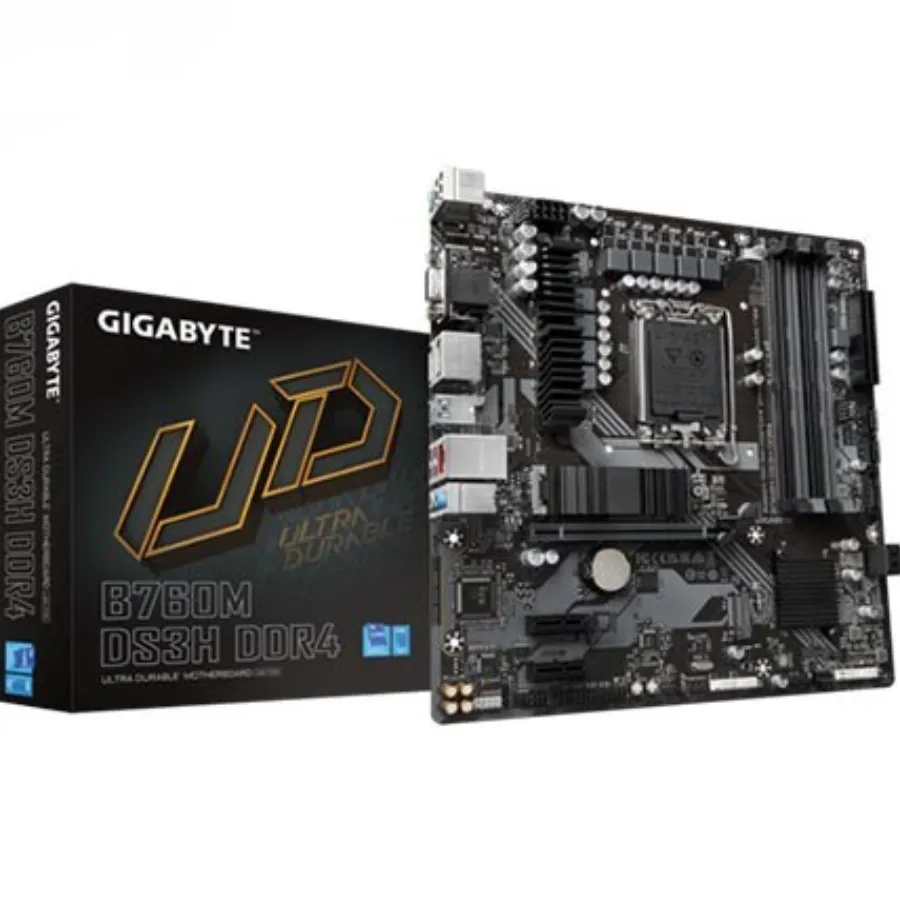

GIGABYTE B760M DS3H DDR4 motherboard:

Socket & CPU Support:

LGA1700 socket supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors.

L3 cache varies with CPU.

Chipset:

Intel B760 Express Chipset.

Memory:

Supports DDR4 memory speeds up to 5333 MT/s (O.C.), with 4 x DDR DIMM slots, up to 128GB capacity.

Dual-channel architecture, XMP support, and ECC support for non-buffered DIMMs.

Graphics:

Integrated Intel HD Graphics with support for up to 4 displays.

Ports: 1 x D-Sub (1920x1200), 1 x HDMI (4096x2160), and 2 x DisplayPorts (4096x2304).

Audio:

Realtek High Definition Audio CODEC with 2/4/5.1/7.1-channel support.

Networking:

Realtek 2.5GbE LAN for fast networking.

Expansion Slots:

1 x PCIe 4.0 x16 (supports GPUs or NVMe SSDs).

2 x PCIe 3.0 x1 slots.

Storage:

2 x M.2 connectors for PCIe 4.0 x4/x2 SSDs.

4 x SATA 6Gb/s connectors.

RAID support for SATA devices (RAID 0, 1, 5, 10).

USB:

1 x USB Type-C (3.2 Gen 2), 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1.

I/O:

2 x USB 2.0/1.1, 1 x PS/2, 1 x D-Sub, 1 x HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB Type-C, 1 x RJ-45 port, 3 x audio jacks.

Cooling & Monitoring:

Fan and temperature control, water cooling flow detection, and voltage detection.

Form Factor:

Micro ATX (24.4 cm x 24.4 cm).

Operating System Support:

Windows 10 and 11 (64-bit).
