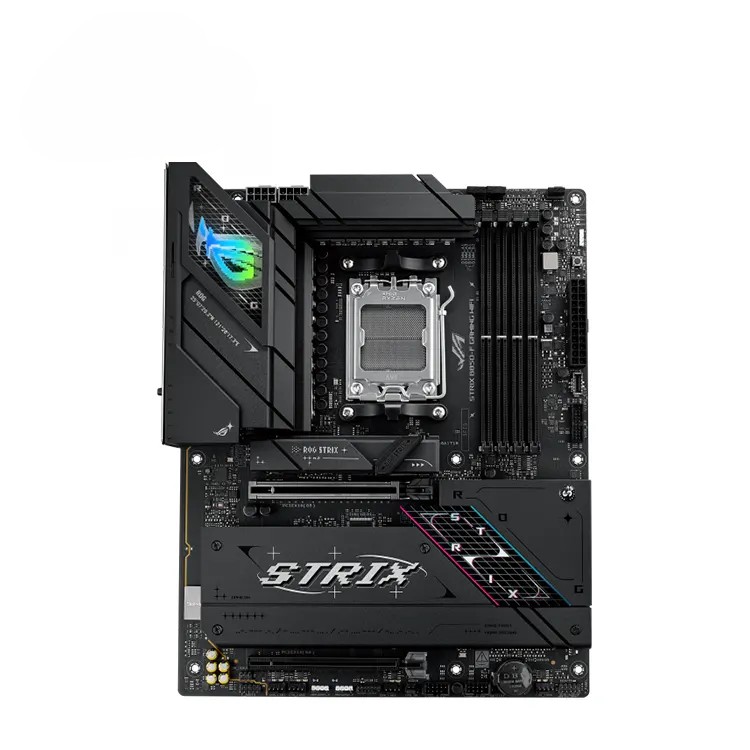

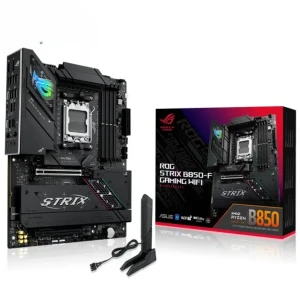

ASUS ROG STRIX B850-F GAMING WIFI - Specifications

Model:

ROG STRIX B850-F GAMING WIFI

CPU Support:

AMD Socket AM5

Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors

Chipset:

AMD B850 Chipset

Memory:

4 x DIMM slots, max 256GB DDR5

Supports up to 8000+ MT/s (OC)

Dual-channel architecture

Supports AMD EXPO and ASUS AEMP

Graphics:

1 x DisplayPort (8K@30Hz)

1 x HDMI (4K@60Hz)

Graphics output depends on CPU specifications

Expansion Slots:

1 x PCIe 5.0 x16 slot (with Q-Release Slim)

1 x PCIe 4.0 x16 slot (x4 mode)

Storage:

4 x M.2 slots

2 x SATA 6Gb/s ports

M.2 slots support PCIe 5.0 and 4.0 (varies by CPU)

Supports RAID 0/1/5/10 (varies by CPU)

Networking:

Intel 2.5Gb Ethernet

Wi-Fi 7 (2x2, 2.9Gbps)

Bluetooth 5.4

USB Ports:

Rear: 12 ports

1 x USB 20Gbps (Type-C)

3 x USB 10Gbps (2 x Type-A, 1 x Type-C)

4 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

Front: 7 ports

1 x USB 10Gbps (Type-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 4 ports)

Audio:

ROG SupremeFX 7.1 HD Audio (ALC4080)

Supports up to 32-bit/384 kHz playback

Savitech SV3H712 AMP

Optical S/PDIF out port

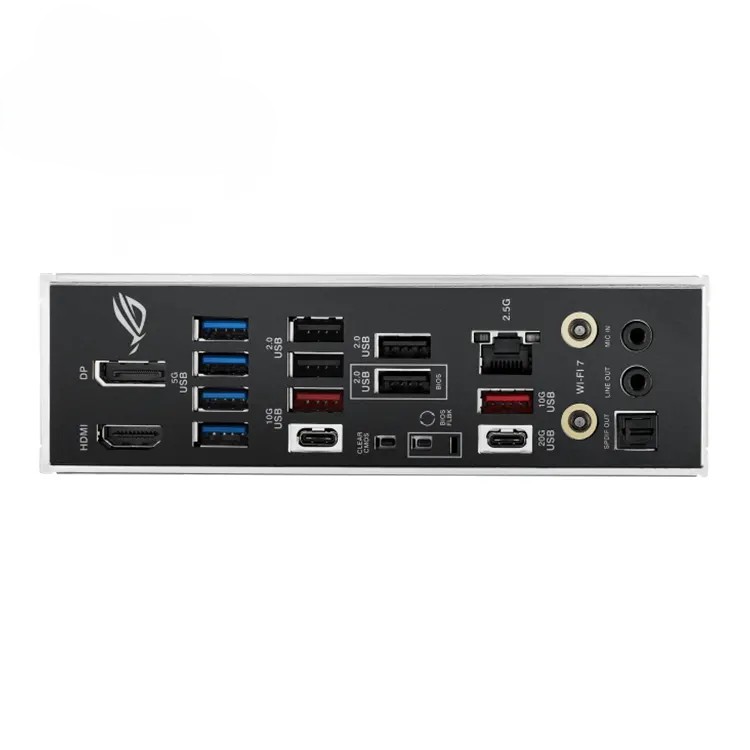

Back Panel I/O:

1 x USB 20Gbps (Type-C)

3 x USB 10Gbps (2 x Type-A, 1 x Type-C)

4 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

1 x DisplayPort

1 x HDMI

1 x Intel 2.5Gb Ethernet port

1 x Wi-Fi module

2 x Audio jacks

1 x Optical S/PDIF out

1 x BIOS FlashBack button

1 x Clear CMOS button

Internal I/O Connectors:

1 x 24-pin main power connector

2 x 8-pin +12V CPU power connectors

4 x M.2 slots

2 x SATA 6Gb/s ports

1 x USB 10Gbps connector (Type-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 4 ports)

4 x 4-pin chassis fan headers

1 x 4-pin CPU fan header

1 x 4-pin AIO pump header

3 x Addressable Gen 2 headers

1 x Thunderbolt (USB4) header

1 x Power button

Special Features:

M.2 Q-Latch, Q-Release, Q-Slide

PCIe Slot Q-Release Slim

Pre-mounted I/O shield

ASUS Aura Sync

Extreme Engine Digi+ with 5K black metallic capacitors

Q-LED diagnostics

Software & BIOS:

Armoury Crate, Fan Xpert 4, GameFirst, Aura Sync

BIOS: 256Mb Flash ROM, UEFI AMI BIOS

Supports ASUS EZ Flash 3, MyHotkey

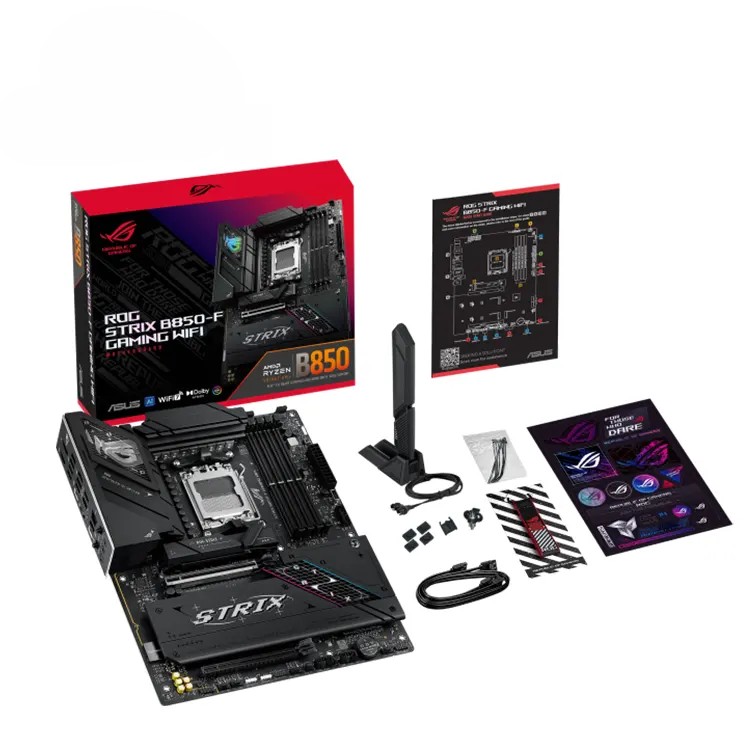

Accessories:

2 x SATA 6Gb/s cables

ASUS WiFi Q-Antenna

Cable ties, M.2 Q-Latch, M.2 Q-Slide

ROG keychain, ROG stickers

Operating System:

Windows 11

Form Factor:

ATX, 30.5 cm x 24.4 cm
