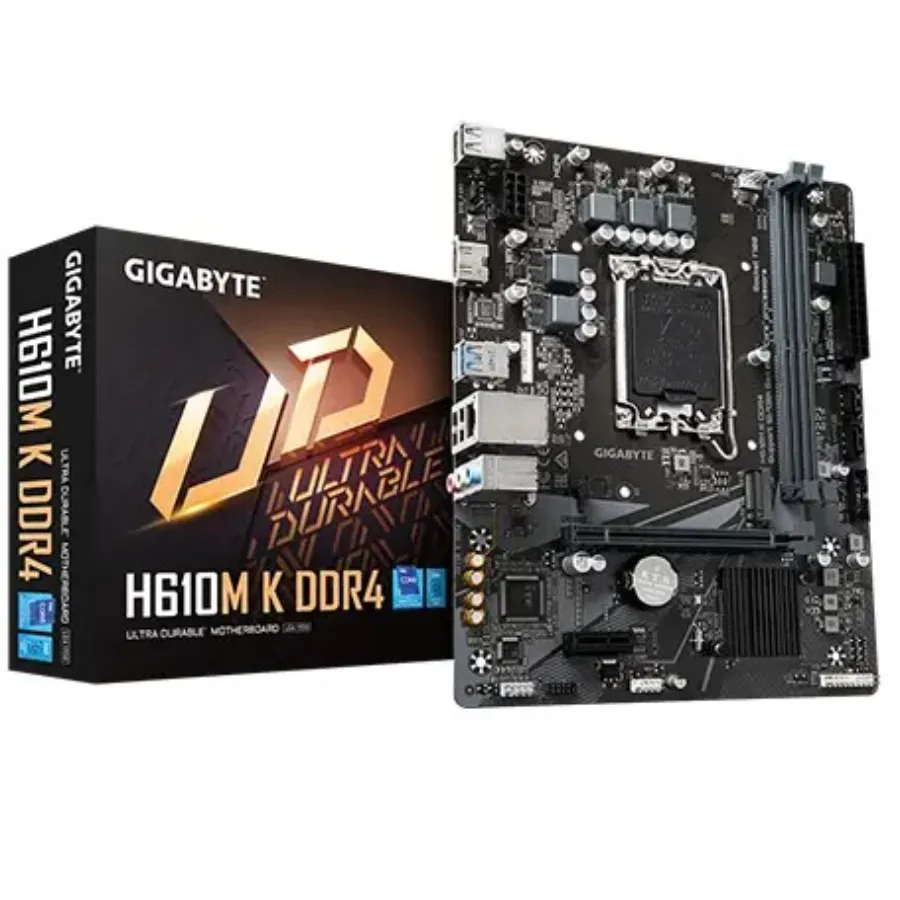

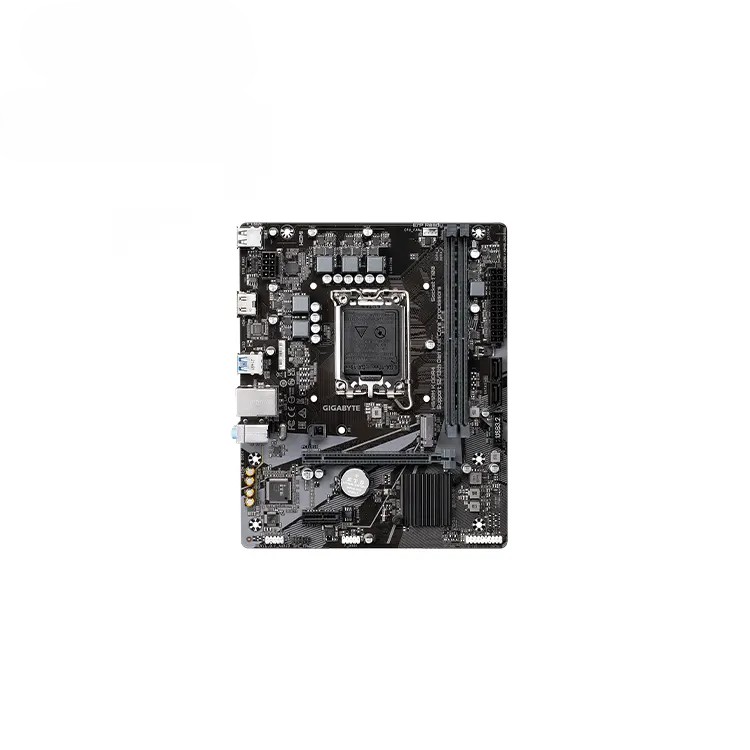

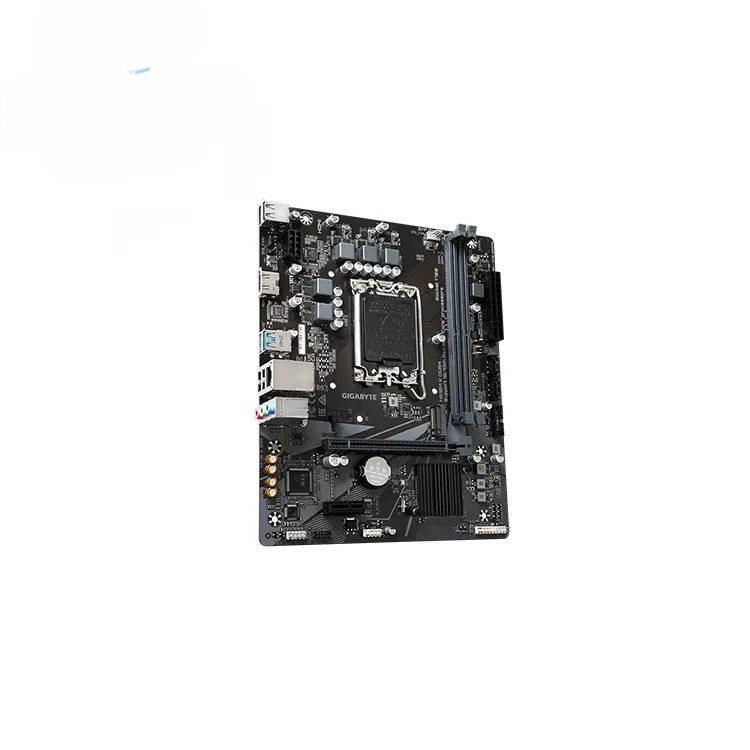

CPU Support

Socket: LGA1700

Supports: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

Chipset

Intel® H610 Express Chipset

Memory

DDR4: Speeds up to 3200 MT/s

Slots: 2 DIMMs, max 64GB

Supports XMP & ECC (non-ECC mode)

Graphics

Integrated Intel® HD Graphics:

1x HDMI 2.1 (4K @ 60Hz)

Audio

Realtek® Codec: High Definition Audio (2/4/5.1/7.1 channels)

LAN

Realtek® GbE LAN (1 Gbps)

Expansion Slots

1x PCIe 4.0 x16 (CPU-based)

1x PCIe 3.0 x1 (Chipset-based)

Storage

1x M.2 (PCIe 3.0 x4)

2x SATA 6Gbps

USB Ports

4x USB 3.2 Gen 1

6x USB 2.0

Internal I/O

Headers for front panel, audio, USB 3.2, USB 2.0, SATA, M.2, and TPM

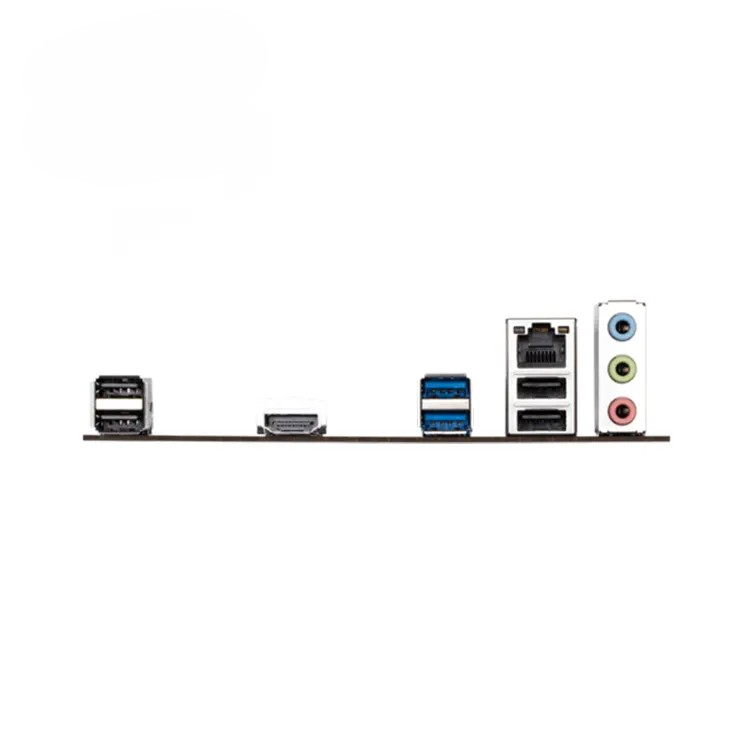

Back Panel

1x HDMI, 2x USB 3.2, 4x USB 2.0, 3x Audio Jacks, 1x RJ-45

Cooling & Monitoring

1x CPU fan header, 1x System fan header

Voltage, temperature, and fan speed detection

BIOS

AMI UEFI BIOS

Supports Q-Flash and other Gigabyte utilities

Form Factor

Micro-ATX, 22.6cm x 18.5cm
