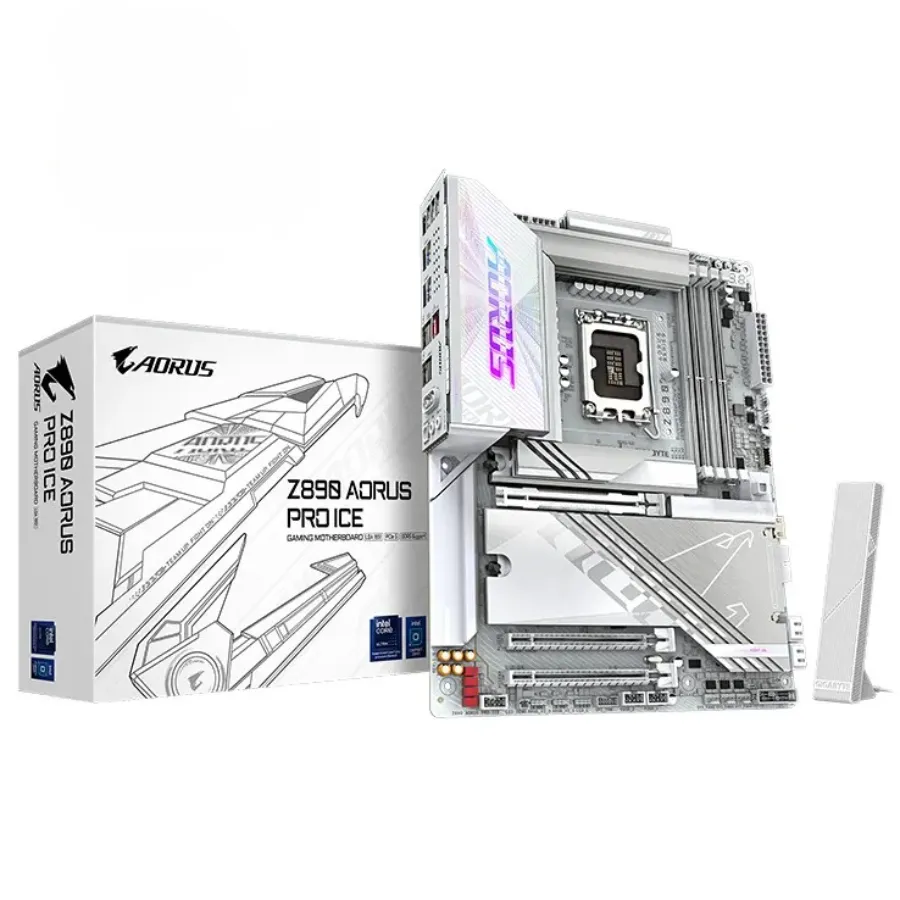

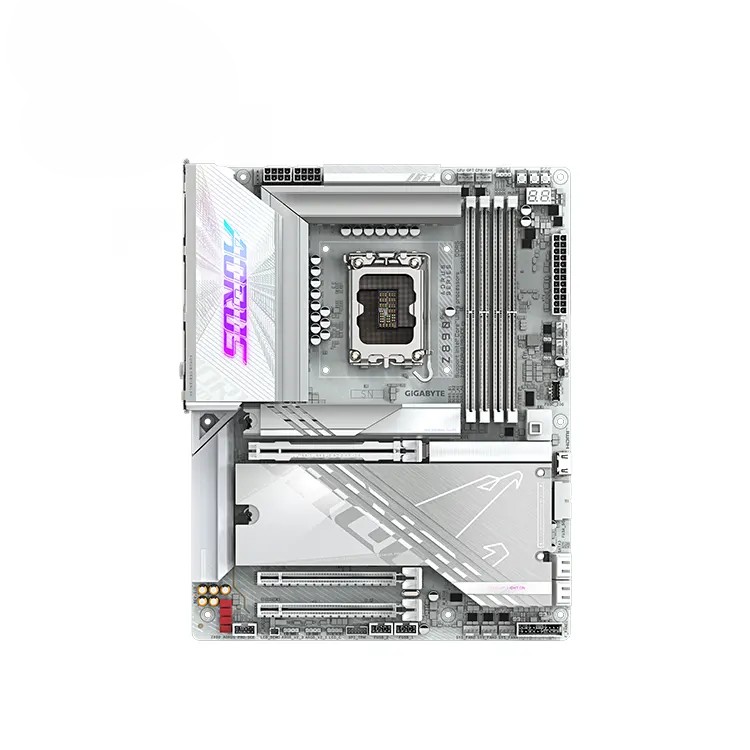

GIGABYTE Z890 AORUS PRO ICE - Key Specifications

CPU Support: Intel® Core™ Ultra Processors (LGA1851), varying L3 cache.

Chipset: Intel® Z890 Express Chipset.

Memory:

Supports DDR5 up to 9500MT/s (O.C.).

4 DIMM slots, max 256GB.

Dual-channel architecture.

ECC & XMP memory modules supported.

Graphics:

Integrated Intel® HD Graphics with Thunderbolt™ 4.

Resolutions:

Thunderbolt™: Up to 5120x2880@60Hz.

USB-C: Up to 3840x2160@240Hz.

Front HDMI: 1920x1080@30Hz.

Triple-display support.

Audio: Realtek® ALC1220, 7.1-channel HD audio, S/PDIF out.

Networking:

Realtek® 5GbE LAN.

Intel® Wi-Fi 7 BE200, Bluetooth 5.4.

Expansion Slots:

PCIe 5.0 x16, PCIe 4.0 x4, and PCIe 4.0 x1.

Storage:

5x M.2 slots (PCIe 5.0 & 4.0).

4x SATA 6Gb/s ports.

RAID 0/1/5/10 support for NVMe and SATA.

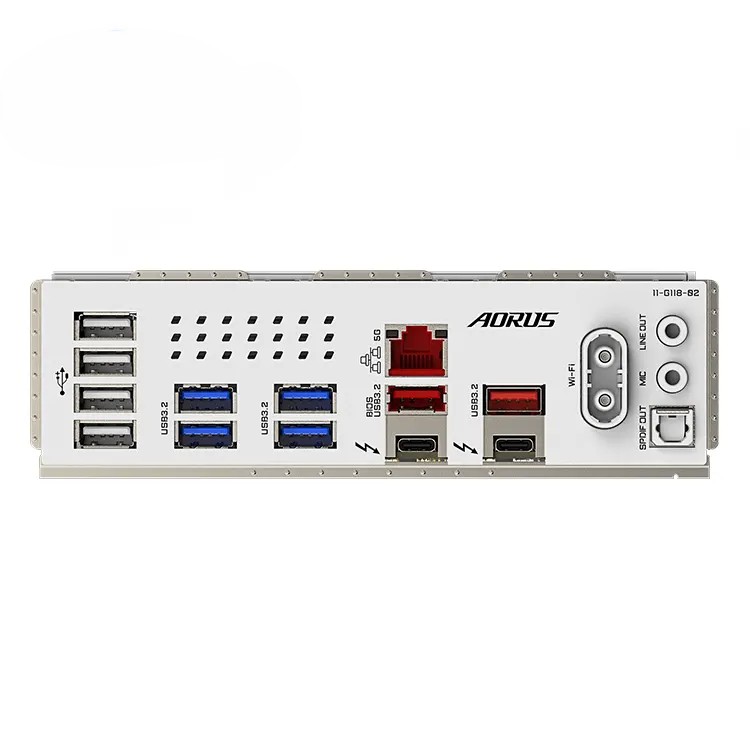

USB Ports:

Thunderbolt™ 4 USB-C (2x back panel).

USB 3.2 Gen 2x2 Type-C (1x internal).

USB 3.2 Gen 2 Type-A (2x back panel).

USB 3.2 Gen 1 (6x total: 4x back panel, 2x internal).

USB 2.0 (8x total: 4x back panel, 4x internal).

Cooling & RGB:

6 fan headers (4 system, 2 pump).

RGB headers: 3x Gen2 ARGB, 1x RGB LED.

Temperature and noise monitoring.

Special Features:

GIGABYTE Control Center, Q-Flash Plus.

Built-in power/reset buttons.

Form Factor: ATX (30.5 x 24.4 cm).

OS Support: Windows 11 64-bit.
