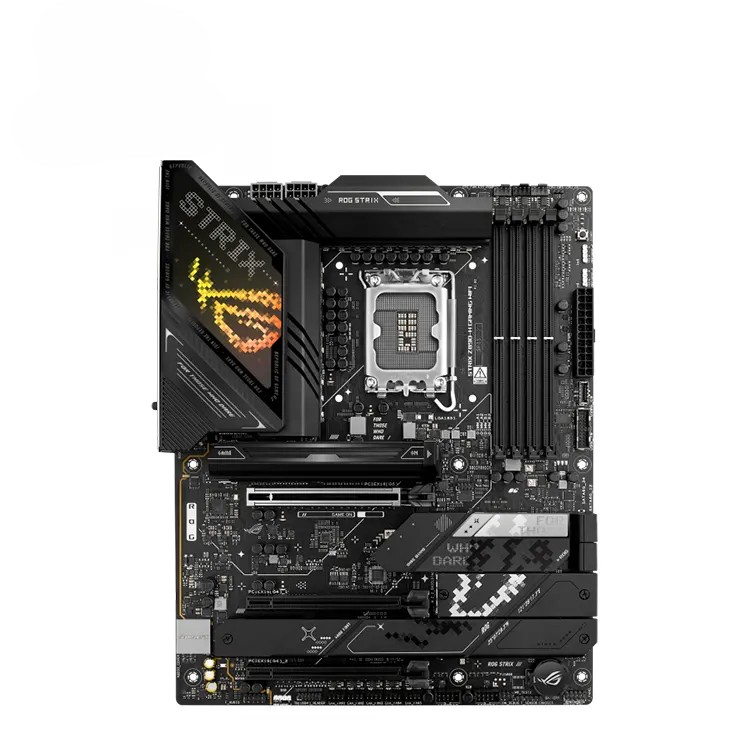

Model:

ROG STRIX Z890-H GAMING WIFI

CPU:

Socket: Intel® LGA1851 for Intel® Core™ Ultra Processors (Series 2)

Support: Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (CPU-dependent)

Chipset:

Chipset: Intel® Z890

Memory:

Slots: 4 x DIMM slots, max. 256GB, DDR5

Memory Speed: Up to 9066+MT/s (OC), Non-ECC, Un-buffered DIMM

Dual Channel Architecture

Support: Intel® Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III (AEMP III)

Graphics:

Ports:

1 x DisplayPort (Supports up to 8K@60Hz)

1 x HDMI™ port (Supports 4K@60Hz)

Expansion Slots:

PCIe:

1 x PCIe 5.0 x16 slot (x16 or x8/x4/x4 modes)

2 x PCIe 4.0 x16 slots (x4 mode)

Storage:

M.2 Slots: 4 x M.2 slots (Key M) with support for PCIe 5.0/4.0 & SATA modes

SATA Ports: 4 x SATA 6Gb/s ports

Ethernet:

Ethernet Port: 1 x Realtek 5G Ethernet

Technology: ASUS LANGuard

Wireless & Bluetooth:

Wi-Fi: Wi-Fi 7 (2x2, 802.11be, supports 2.4/5/6GHz with 160MHz bandwidth, up to 2.9Gbps transfer)

Bluetooth: Bluetooth® v5.4

USB Ports:

Rear USB:

2 x USB 20Gbps ports (1 x USB Type-C®, 1 x USB Type-C® with up to 30W PD Fast-charge)

4 x USB 10Gbps ports (Type-A)

4 x USB 5Gbps ports (Type-A)

Front USB:

1 x USB 20Gbps (Type-C®)

1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Audio:

Codec: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Features:

Supports 7.1 Surround Sound, High-quality 120 dB SNR playback, 113 dB SNR recording input

SupremeFX Shielding, Savitech SV3H712 AMP, and premium capacitors

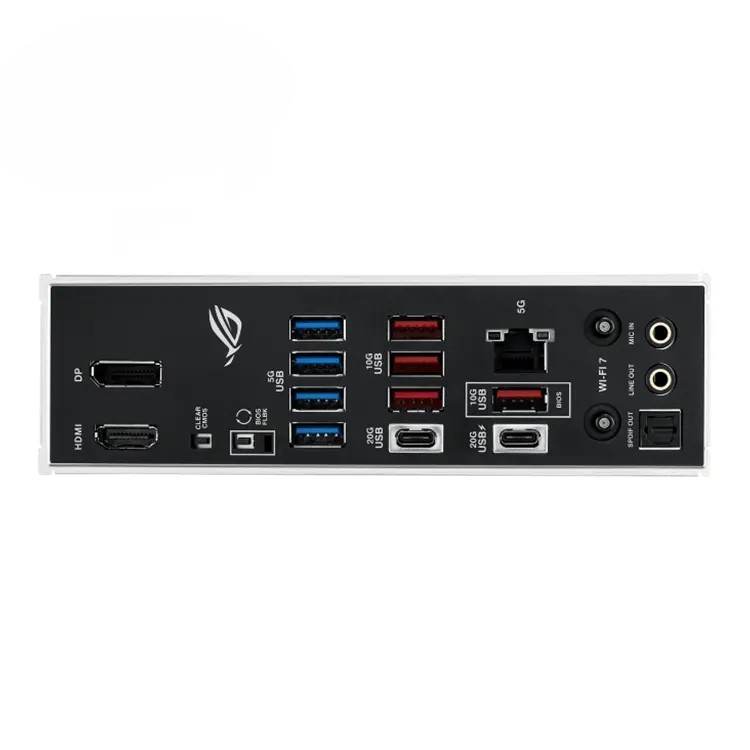

Back Panel I/O Ports:

2 x USB 20Gbps (Type-C® with PD Fast-charge)

4 x USB 10Gbps (Type-A)

4 x USB 5Gbps (Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connectors:

Fan and Cooling Related:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

5 x 4-pin Chassis Fan headers

Power:

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage:

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB:

1 x USB 20Gbps (Type-C®)

2 x USB 2.0 headers

Special Features:

Extreme Engine Digi+: 5K Black metallic capacitors

Q-Design: M.2 Q-Latch, Q-Release, PCIe Slot Q-Release, Q-Dashboard, Q-LED

Thermal Solution: M.2 heatsink backplate, VRM heatsink design

Aura Sync: Addressable Gen 2 headers

Fast Charging Support: Up to 30W via USB Type-C®

Software Features:

ROG Exclusive Software: ROG CPU-Z, Dolby Atmos

ASUS Exclusive Software: Armoury Crate, Fan Xpert 4, GameFirst, HWiNFO, TurboV Core, etc.

BIOS:

UEFI BIOS: 256 Mb Flash ROM, UEFI AMI BIOS with AI Overclocking Guide

Operating System Support:

Windows® 11 (22H2 & later)

Form Factor:

Size: ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
