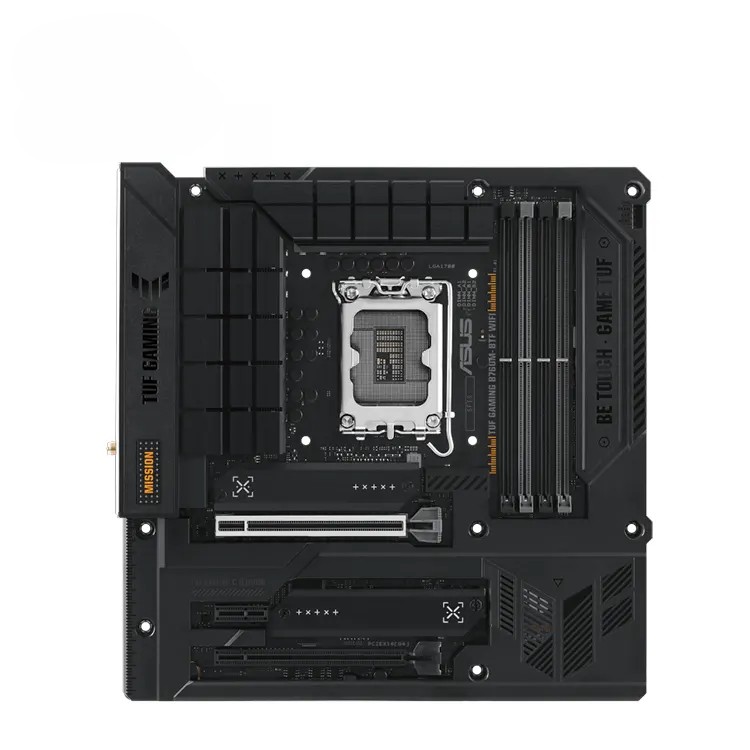

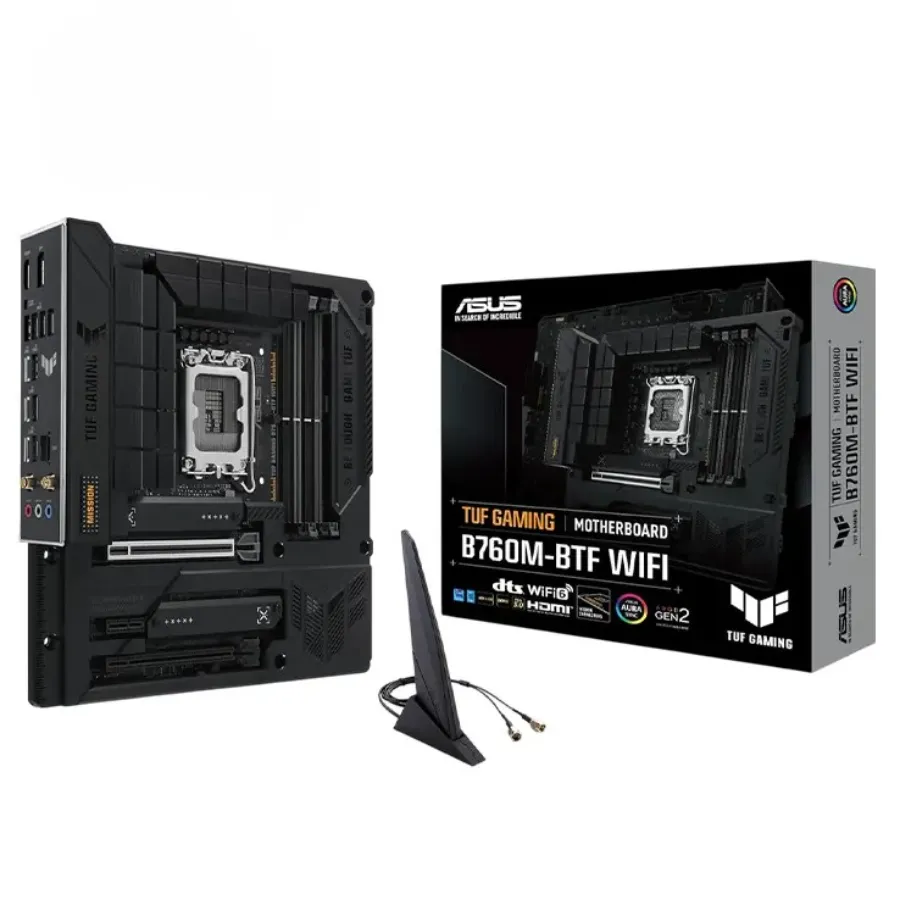

Model: TUF GAMING B760M-BTF WIFI

CPU:

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (depends on the CPU types)

Refer to the official website for a CPU support list.

Chipset: Intel® B760 Chipset

Memory:

4 x DIMM slots, Max. 192GB, DDR5 memory with various overclocking speeds (up to 7200 MHz)

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics:

1 x DisplayPort (max. 4K@60Hz)

1 x HDMI™ port (max. 4K@60Hz)

Expansion Slots:

1 x PCIe 5.0 x16 slot

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x1 slot

Storage:

3 x M.2 slots (PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

M.2_3 slot shares bandwidth with PCIEX16(G4) slot

Ethernet:

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth:

Wi-Fi 6 (2x2, 802.11 a/b/g/n/ac/ax)

Bluetooth® v5.2 (check for updates on the Wi-Fi module manufacturer’s website)

USB Ports:

Rear: 1 x USB 3.2 Gen 2x2 (20G) Type-C®, 2 x USB 3.2 Gen 2 (10G), 3 x USB 3.2 Gen 1 (5G), 4 x USB 2.0

Front: 1 x USB 3.2 Gen 2 (10G) Type-C®, 1 x USB 3.2 Gen 1 (5G) header, 2 x USB 2.0 headers

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Up to 24-Bit/192 kHz playback

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

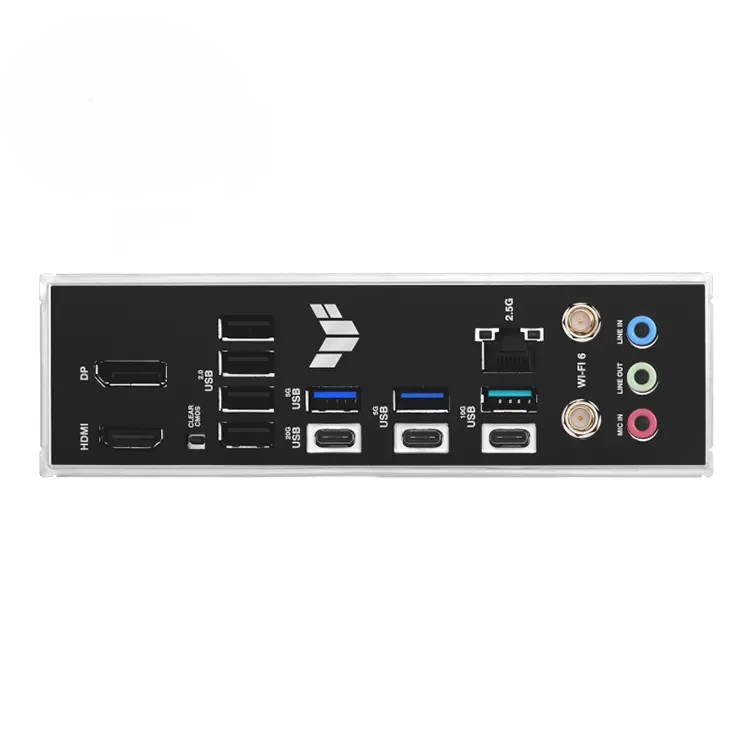

Back Panel I/O Ports:

1 x USB 3.2 Gen 2x2 (20G) Type-C®, 2 x USB 3.2 Gen 2 (10G), 3 x USB 3.2 Gen 1 (5G), 4 x USB 2.0

1 x DisplayPort, 1 x HDMI™ port

1 x Wi-Fi Module, 1 x 2.5Gb Ethernet port

3 x Audio jacks, 1 x Clear CMOS button

Internal I/O Connectors:

1 x 4-pin CPU Fan header, 3 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

3 x M.2 slots, 4 x SATA 6Gb/s ports

USB headers for additional ports

Special Features:

ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection)

ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot)

ASUS Thermal Solution (M.2 heatsinks, VRM heatsink)

Aura Sync (RGB header, Addressable Gen 2 headers)

Software:

Armoury Crate (Aura Creator, FAN Xpert 2+, Two-Way AI Noise Cancellation)

AI Suite 3 (DIGI+ VRM, PC Cleaner)

TUF GAMING CPU-Z, DTS Audio Processing, MyASUS

Norton 360 for Gamers (60-day free trial)

Operating System: Windows® 11, Windows® 10 64-bit

Form Factor: micro-ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)

Accessories:

2 x SATA 6Gb/s cables
