CPU Support:

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset:

Intel® Z890 Chipset

Memory:

4 x DIMM slots, maximum 256GB, DDR5

Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Dual-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMPIII)

Graphics:

1 x DisplayPort

1 x HDMI™ port

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) supporting DisplayPort and Thunderbolt™ video outputs

Supports max. 4K@60Hz in DisplayPort 1.4 and HDMI 2.1

Thunderbolt™ 4 mode supports up to 8K@60Hz or 4K@60Hz (x2)

Expansion Slots:

1 x PCIe 5.0 x16 slot

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 4.0 x1 slots

Storage:

4 x M.2 slots and 4 x SATA 6Gb/s ports

M.2 slots support PCIe 5.0, PCIe 4.0, and SATA modes

Intel® Rapid Storage Technology supports RAID 0/1/5/10

Ethernet:

1 x Intel® 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 7 (802.11be), supports 2.4/5/6GHz frequencies and 160MHz bandwidth up to 2.9Gbps

Bluetooth® v5.4

USB Ports:

2 x Thunderbolt™ 4 USB Type-C® ports

6 x USB 10Gbps Type-A ports

1 x USB 20Gbps Type-C® (supports PD/PPS fast charging up to 30W)

2 x USB 5Gbps headers (supporting 4 additional USB 5Gbps ports)

2 x USB 2.0 headers (supporting 4 additional USB 2.0 ports)

Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

120 dB SNR stereo playback and 113 dB SNR recording

Optical S/PDIF out port, premium audio capacitors, dedicated audio PCB layers

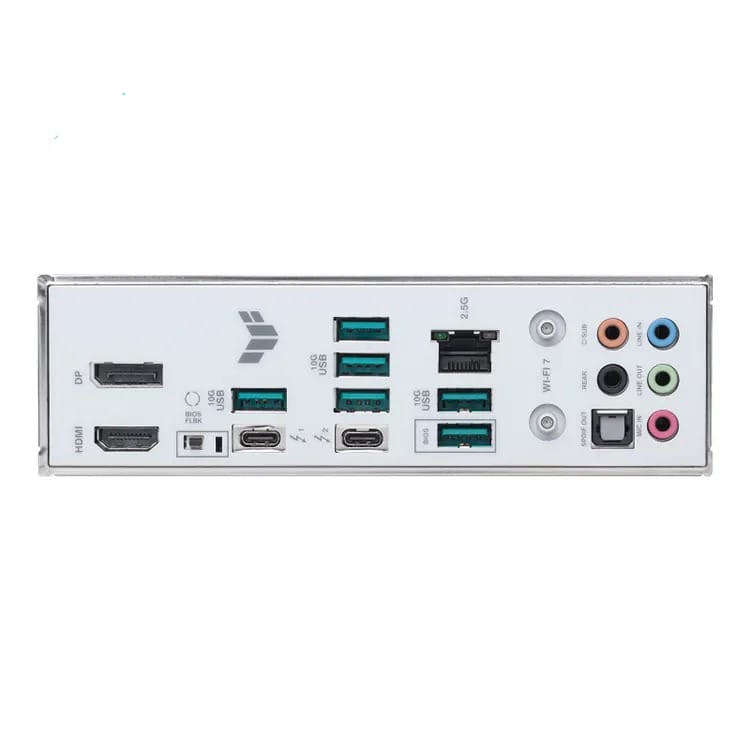

Back Panel I/O Ports:

2 x Thunderbolt™ 4 USB Type-C® ports

6 x USB 10Gbps Type-A ports

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Internal I/O Connectors:

1 x 4-pin CPU Fan header, 1 x CPU OPT Fan header, 1 x AIO Pump header

4 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

4 x M.2 slots, 4 x SATA 6Gb/s ports

1 x USB 20Gbps connector, 2 x USB 2.0 headers

Special Features:

ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot, Overvoltage Protection, Stainless-steel back I/O)

ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-DIMM, Q-Slot)

ASUS Thermal Solution (M.2 heatsink, VRM heatsink design)

Aura Sync support with Addressable Gen 2 headers

Front Panel USB 20Gbps with PD Fast Charge Support

Software Features:

Armoury Crate (Aura Creator, Fan Xpert 4, Power Saving, TurboV Core)

ASUS DriverHub, ASUS GlideX, DTS Audio Processing

UEFI BIOS with EZ Mode, AI Overclocking Guide

ASUS EZ DIY (CrashFree BIOS 3, BIOS FlashBack, Pre-mounted I/O shield)

Operating System Support:

Windows 11 (22H2 and later)

Form Factor:

ATX (12" x 9.6" / 30.5 cm x 24.4 cm)
