CPU Support

Socket: AMD Socket AM5

Compatibility: Supports AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series Processors.

Chipset

Chipset: AMD A620

Memory

Type: DDR5

Supported Speeds: 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s

Slots: 2 x DDR5 DIMM sockets

Maximum Capacity: Up to 128 GB (64 GB per DIMM)

Memory Architecture: Dual channel

Compatibility: Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Overclocking Profiles: Supports AMD EXPO™ and Intel® XMP memory modules.

Onboard Graphics

Integrated Graphics Processor:

DisplayPort: 1 x DisplayPort 1.4, supporting up to 3840x2160@144 Hz

HDMI: 1 x HDMI 2.1, supporting up to 4096x2160@60 Hz

Display Support: Supports up to 3 displays simultaneously (Graphics specifications may vary depending on CPU support).

Audio

Codec: Realtek® Audio CODEC

Channels: Supports 2/4/5.1/7.1-channel High Definition Audio (7.1-channel audio requires configuration in the audio software).

LAN

LAN Chip: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

PCI Express x16 Slot:

AMD Ryzen™ 7000 Series: Supports PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1: Supports PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2: Supports PCIe 4.0 x4 mode

Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD.

PCI Express x1 Slot: 1 x PCI Express x1 slot, supporting PCIe 3.0.

Storage Interface

M.2 Connector:

Integrated in the CPU

Supports Socket 3, M key, type 2580 SSDs

Supported by AMD Ryzen™ 7000 Series: PCIe 4.0 x4/x2 SSDs

Supported by AMD Ryzen™ 8000 Series-Phoenix 1 & 2: PCIe 4.0 x4/x2 SSDs

SATA Connectors: 4 x SATA 6Gb/s connectors

RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD and SATA storage devices.

USB Connectivity

CPU:

2 x USB 3.2 Gen 1 ports on the back panel

1 x USB 2.0/1.1 port on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports via internal header

7 x USB 2.0/1.1 ports (3 on the back panel, 4 via internal headers).

Internal I/O Connectors

Power Connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V

Cooling: 1 x CPU fan header, 2 x system fan headers

LED Strip: 1 x addressable LED strip header, 1 x RGB LED strip header

Storage: 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors

Front Panel: 1 x front panel header, 1 x front panel audio header

USB Headers: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers

Additional: 1 x TPM header, 1 x Clear CMOS jumper.

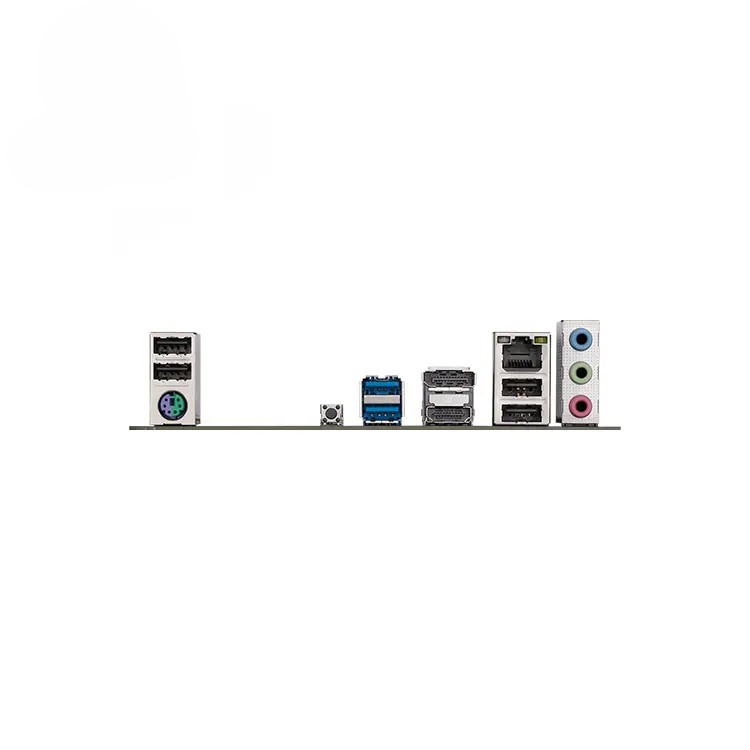

Back Panel Connectors

USB Ports: 4 x USB 2.0/1.1 ports, 2 x USB 3.2 Gen 1 ports

Video Outputs: 1 x DisplayPort, 1 x HDMI port

Networking: 1 x RJ-45 port

Audio: 3 x audio jacks

Other: 1 x PS/2 keyboard/mouse port, 1 x Q-Flash Plus button.

I/O Controller

Chip: iTE® I/O Controller Chip

Hardware Monitoring

Sensors: Voltage, temperature, fan speed, water cooling flow rate detection

Warnings: Fan fail warning

Fan Control: Fan speed control, depending on installed fan.

BIOS

Flash Memory: 1 x 256 Mbit flash

BIOS Type: AMI UEFI BIOS

Supported Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Unique Features

Software: Supports GIGABYTE Control Center (GCC)

BIOS Update: Supports Q-Flash Plus, Q-Flash.

Bundled Software

Security: Norton® Internet Security (OEM version)

Networking: LAN bandwidth management software.

Operating System Support

Windows 11 64-bit

Windows 10 64-bit

Form Factor

Type: Micro ATX

Dimensions: 23.0cm x 22.5cm

This motherboard provides a solid foundation for building a powerful and modern system with AMD's latest Ryzen processors, offering a balance of performance, expandability, and connectivity.
