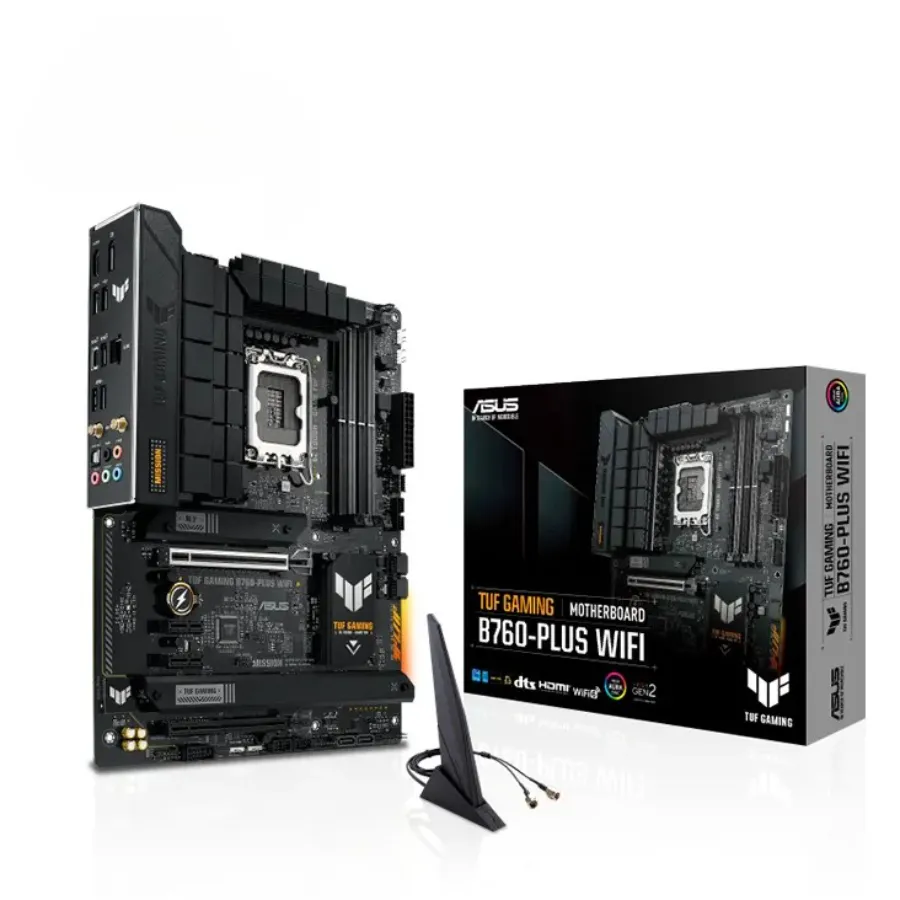

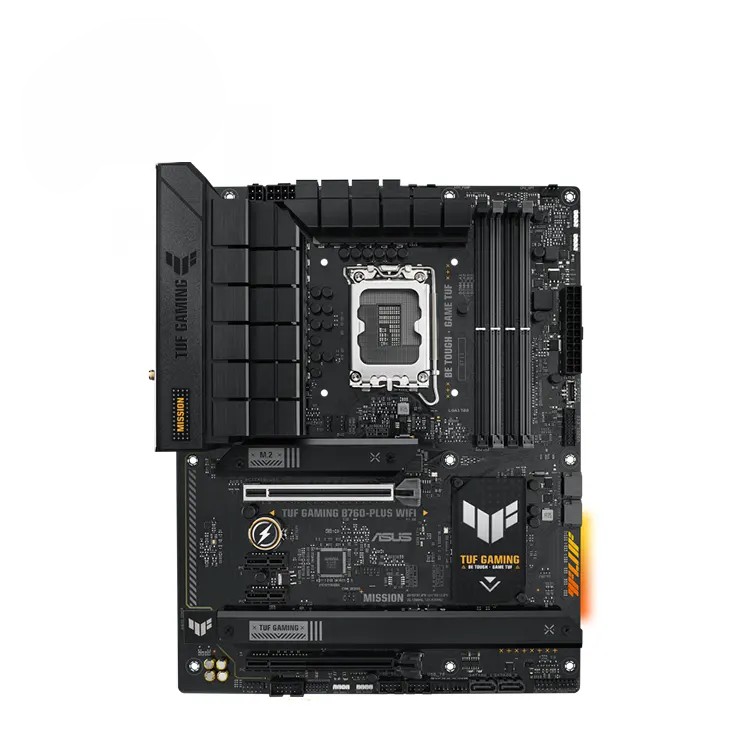

ASUS TUF GAMING B760-PLUS WIFI – Specifications

CPU Support:

Intel® Socket LGA1700, compatible with Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset:

Intel® B760

Memory:

4 x DIMM slots, up to 192GB DDR5

Supports up to DDR5 7200(OC)

Dual-channel memory architecture

Intel® XMP support

OptiMem II technology

Graphics:

1 x DisplayPort 1.4 (4K@60Hz)

1 x HDMI 2.1 (4K@60Hz)

Expansion Slots:

1 x PCIe 5.0 x16 slot

1 x PCIe 3.0 x16 slot (x4 mode)

2 x PCIe 3.0 x1 slots

Storage:

3 x M.2 slots (PCIe 4.0 x4)

4 x SATA 6Gb/s ports

Supports Intel® RST with RAID 0/1/5/10

Networking:

Realtek 2.5Gb Ethernet with TUF LANGuard

Wi-Fi 6 (2x2, supports 2.4/5GHz)

Bluetooth 5.2

USB Ports:

Rear I/O (6 ports):

1 x USB 3.2 Gen 2x2 Type-C

1 x USB 3.2 Gen 2 Type-A

3 x USB 3.2 Gen 1 Type-A

1 x USB 2.0 Type-A

Front I/O (7 ports):

1 x USB 3.2 Gen 2 Type-C

1 x USB 3.2 Gen 1 header (supports 2 ports)

2 x USB 2.0 headers (supports 4 ports)

Audio:

Realtek 7.1 Surround Sound HD Audio CODEC

Supports up to 24-bit/192kHz playback

Features: Audio shielding, premium capacitors, dedicated PCB layers, optical S/PDIF out

Cooling & Power Connectors:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin chassis fan headers

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

RGB & Customization:

3 x Addressable Gen 2 headers

1 x Aura RGB header

Aura Sync support

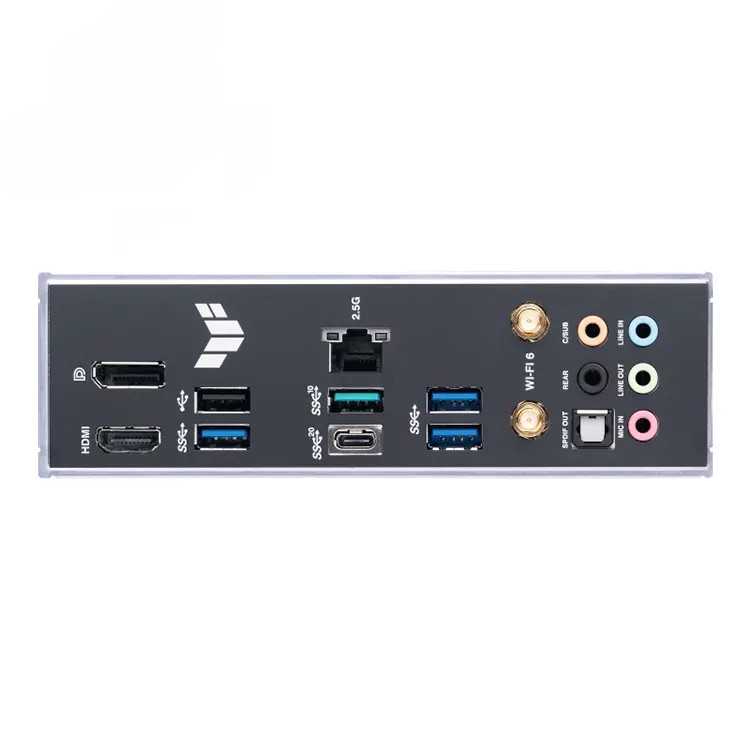

Back Panel I/O:

1 x USB 3.2 Gen 2x2 Type-C

1 x USB 3.2 Gen 2 Type-A

3 x USB 3.2 Gen 1 Type-A

1 x USB 2.0 Type-A

1 x DisplayPort

1 x HDMI

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out

Special Features:

TUF Protection: DIGI+ VRM, ESD Guards, Overvoltage Protection, SafeSlot Core+

Thermal Solution: VRM & M.2 heatsinks

Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot

EZ DIY Features: Pre-mounted I/O shield, SafeDIMM, ProCool

Software & BIOS:

Armoury Crate (Aura Sync, Fan Xpert 4, AI Noise Cancellation)

AI Suite 3 (DIGI+ VRM, PC Cleaner)

TUF Gaming CPU-Z

DTS Audio Processing

UEFI BIOS with ASUS EZ Mode

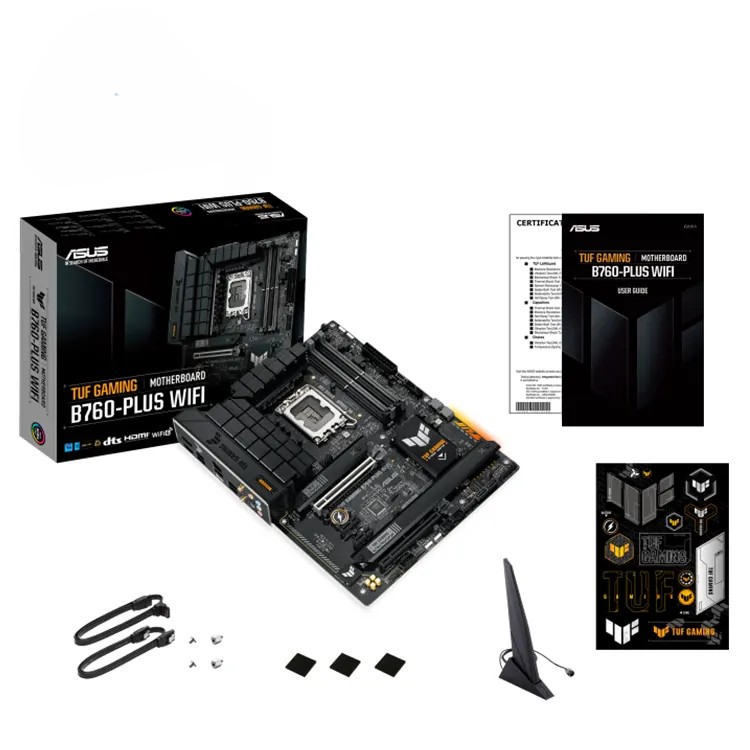

Accessories:

2 x SATA 6Gb/s cables

1 x Wi-Fi antenna

2 x M.2 rubber packages

1 x M.2 screw package

1 x TUF Gaming sticker

1 x TUF Certification card

1 x User guide

Operating System Support:

Windows 11, Windows 10 64-bit

Form Factor:

ATX (30.5 cm x 24.4 cm)
