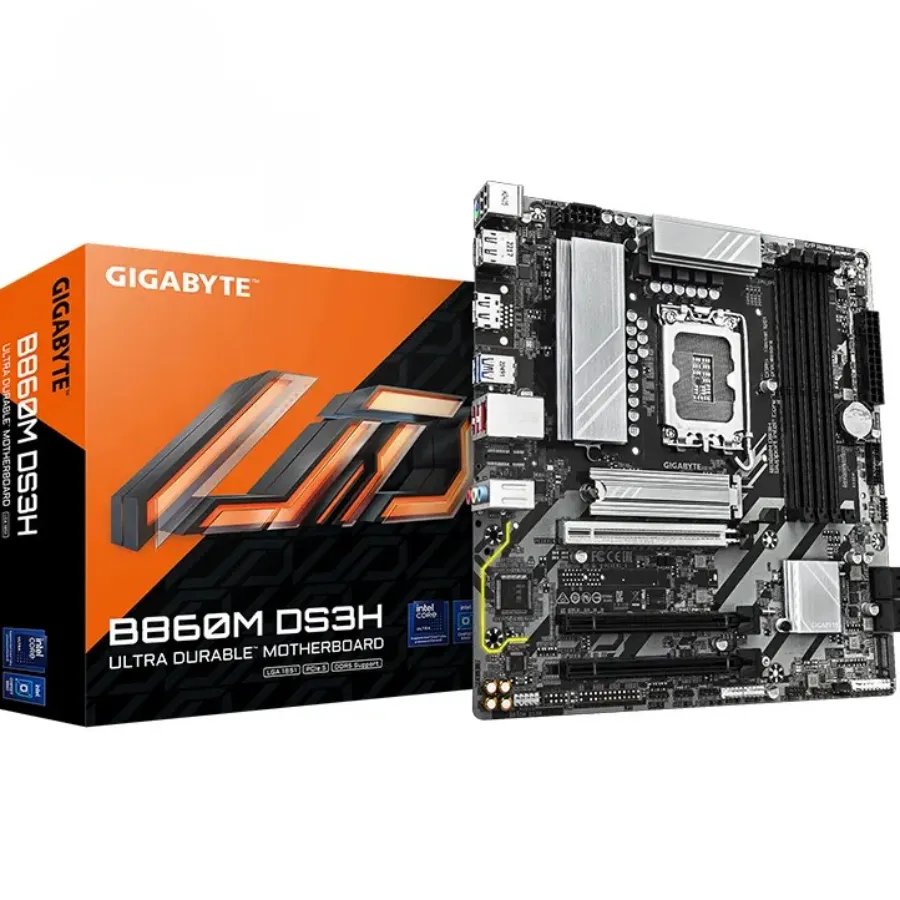

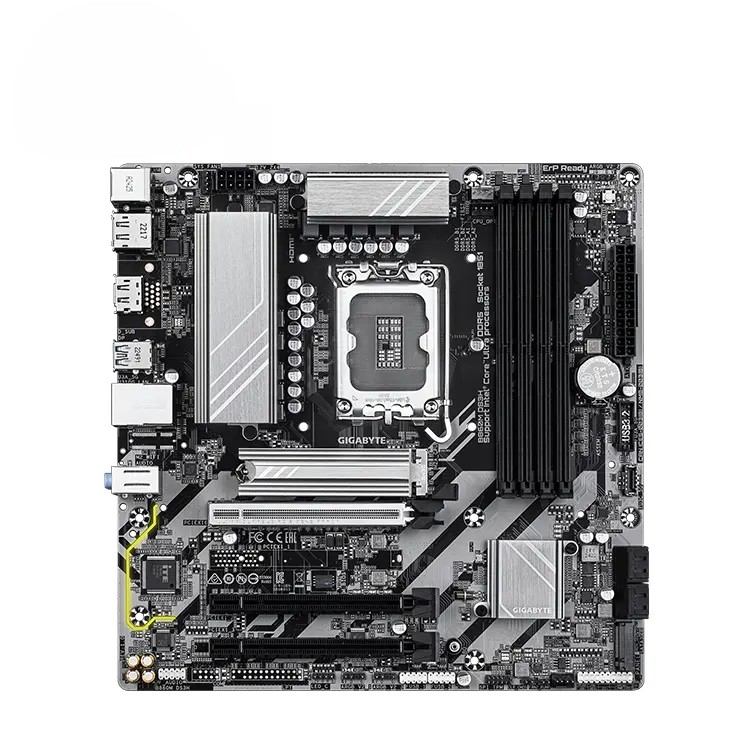

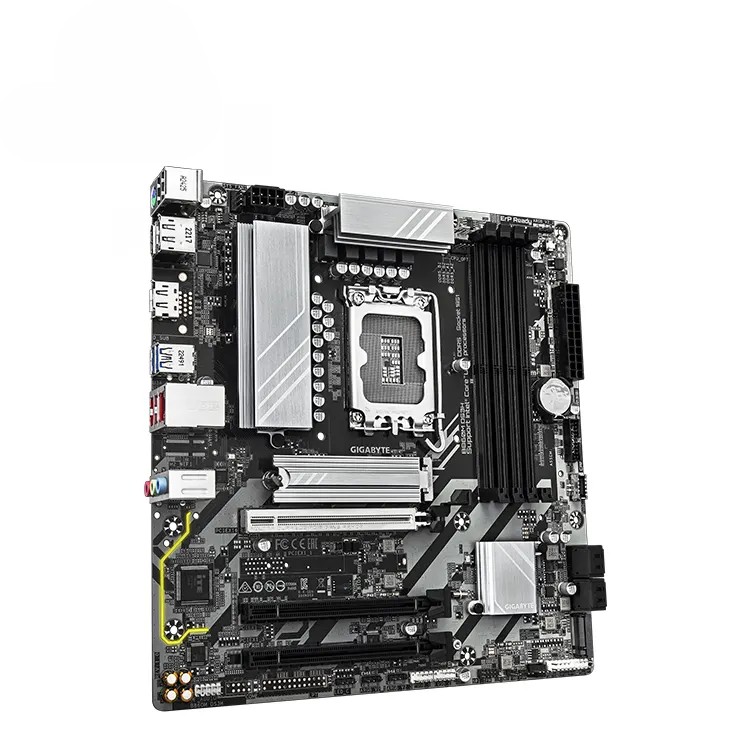

Gigabyte B860M DS3H – Key Specs & Features

Core Features:

CPU Support: Intel® Core™ Ultra processors (Series 2) on LGA1851 socket

Power Delivery: Hybrid 5+1+2 VRM phases

Memory: Supports DDR5 up to 9066 MT/s (OC), max 256GB (4 slots), Dual Channel

AI Perfdrive: Optimized BIOS preset profiles

EZ-Latch: Quick release PCIe x16 slot

Storage:

2x M.2 slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)

4x SATA 6Gb/s

Networking: Realtek 2.5GbE LAN

Audio: Realtek® HD Audio CODEC (7.1-channel)

Expansion Slots:

1x PCIe 5.0 x16 (for GPU or NVMe SSD)

2x PCIe 4.0 x1

Display Outputs: HDMI 2.1 (4K@60Hz) + 2x DisplayPort 2.1 (4K@144Hz)

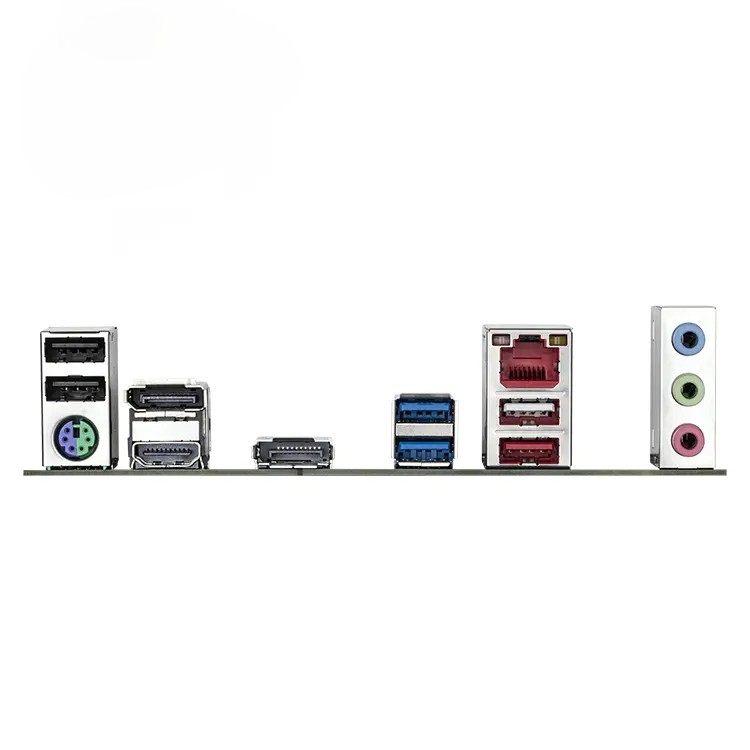

USB Ports:

1x USB 3.2 Gen 2 (Type-A, red)

5x USB 3.2 Gen 1 (Type-A, 2 rear, 2 internal, 1 Type-C header)

7x USB 2.0 (3 rear, 4 internal)

Extra Features:

BIOS & Monitoring:

GIGABYTE Control Center (GCC)

Q-Flash Plus, Smart Backup

HWinfo Power Monitor for CPU power phases

Cooling Support:

2x M.2 Thermal Guards

Multiple fan headers + AIO Pump support

RGB Support: 3x Addressable Gen2 RGB headers, 1x RGB header

OS Support: Windows 11 & 10 (64-bit)

Form Factor: Micro-ATX (24.4 x 24.4 cm)
