Model

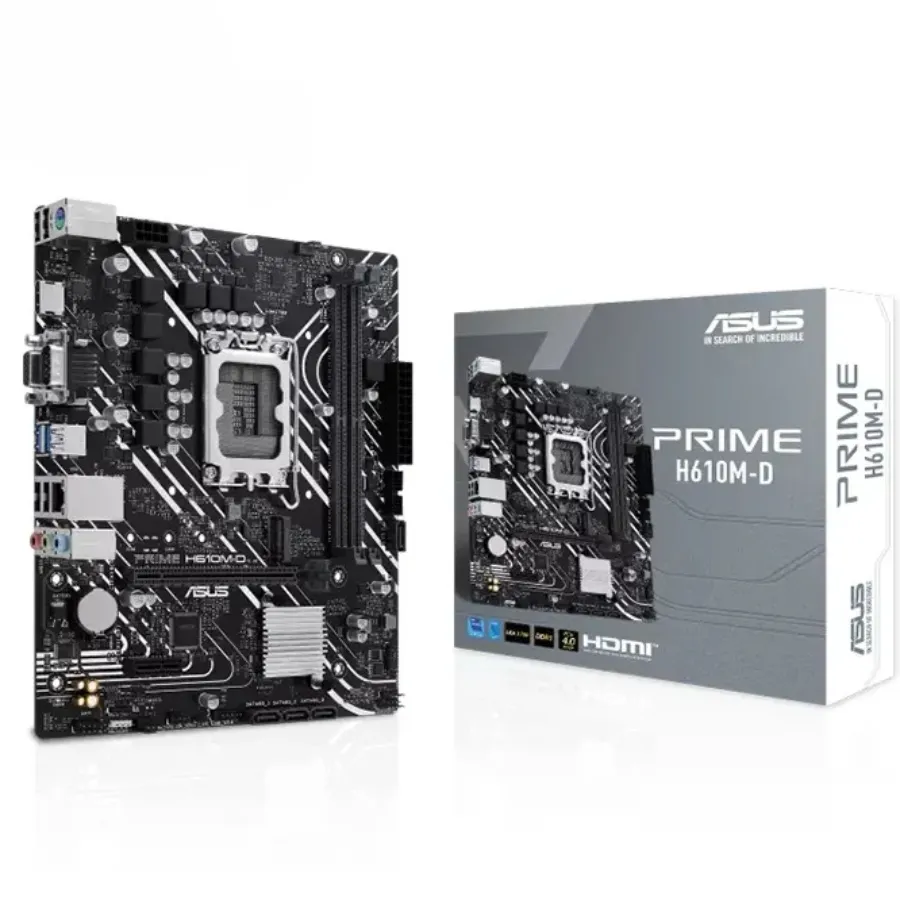

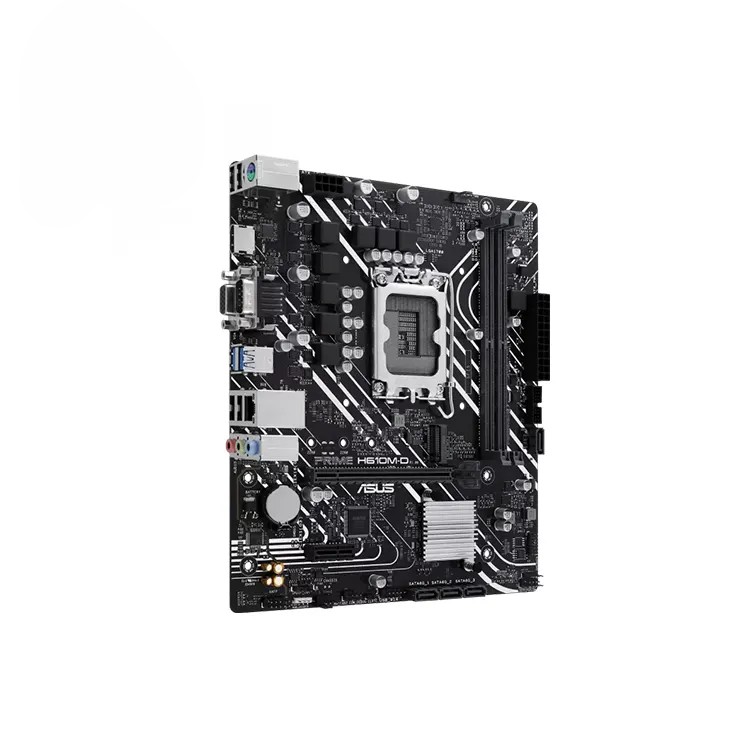

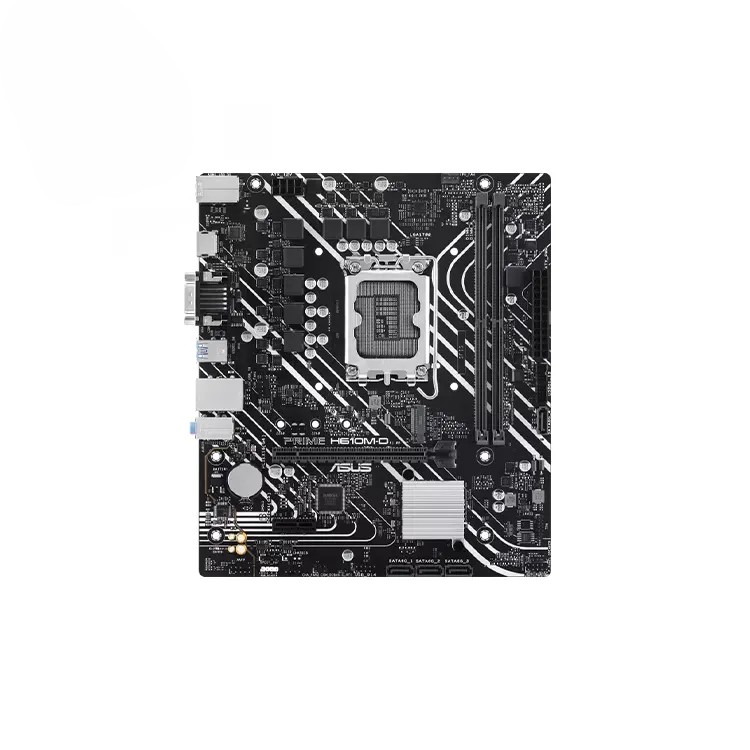

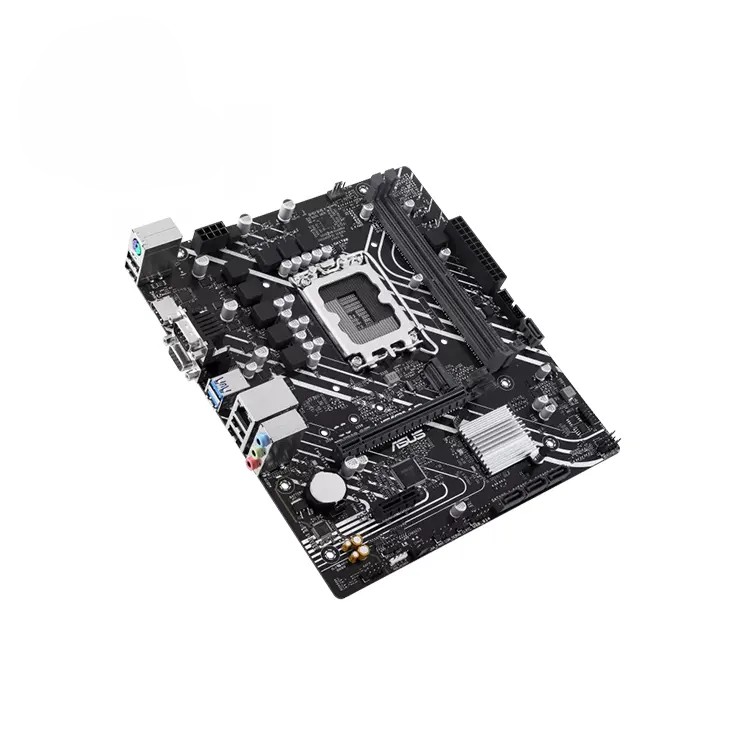

PRIME H610M-D

Core Features

Processor Compatibility

Intel® Socket LGA1700 for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.

Supports Intel® Turbo Boost 2.0 and Turbo Boost Max 3.0.

Chipset

Intel® H610 Chipset.

Memory

2 x DIMM slots, up to 96GB DDR5.

Speeds up to 5600 MT/s, Dual Channel.

Intel® XMP support for optimized performance.

Graphics

1 x VGA port.

1 x HDMI™ port (4K @ 60Hz via HDMI 2.1).

Expansion Slots

PCIe 4.0 x16 (CPU connected).

PCIe 3.0 x1 (chipset connected).

Storage

1 x M.2 slot (PCIe 3.0 x4, Key M).

4 x SATA 6Gbps ports.

Networking

Realtek 1Gb Ethernet.

Audio

Realtek 7.1 Surround Sound HD Audio CODEC.

Audio Shielding, Premium Capacitors, Dedicated PCB Layers.

USB Ports

Rear:

2 x USB 3.2 Gen 1 (Type-A).

4 x USB 2.0.

Internal:

1 x USB 3.2 Gen 1 header (2 ports).

1 x USB 2.0 header (2 ports).

Advanced Features

Cooling & Power

1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers.

PCH aluminum heatsink for better thermal management.

Special Features

5X Protection III:

DIGI+ VRM, LANGuard, SafeSlot Core, Overvoltage Protection.

ASUS Lighting Control: 1 x RGB header.

ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot.

Software Utilities

Armoury Crate with Fan Xpert 2+, AI Suite 3, and PC Cleaner.

Norton 360 Deluxe (60-day trial).

WinRAR, ASUS CPU-Z.

BIOS

128 Mb UEFI AMI BIOS with EZ Flash 3 and CrashFree BIOS 3.

Form Factor

micro-ATX: 9.2 x 8.0 inches (23.4 x 20.3 cm).

Operating System Compatibility

Windows® 11 and Windows® 10 64-bit.
