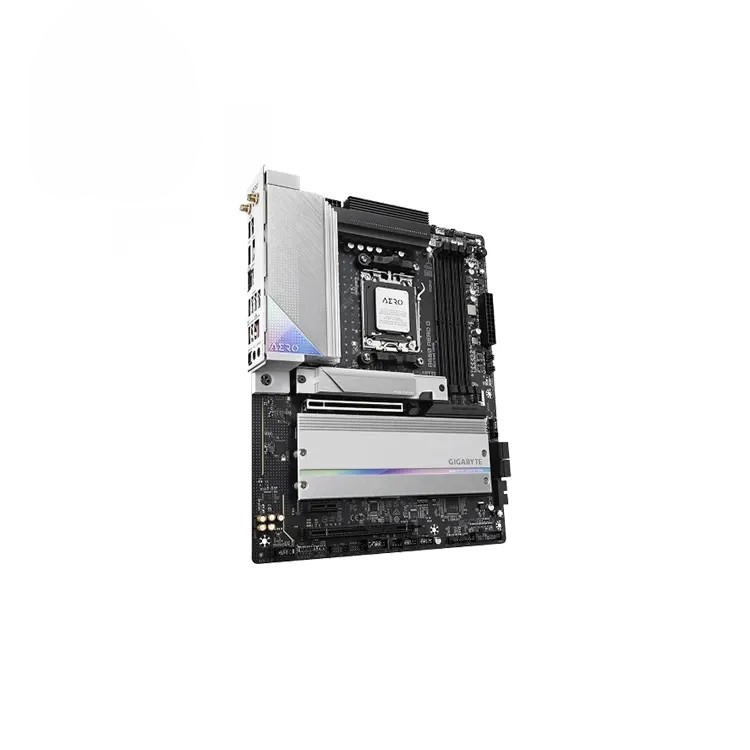

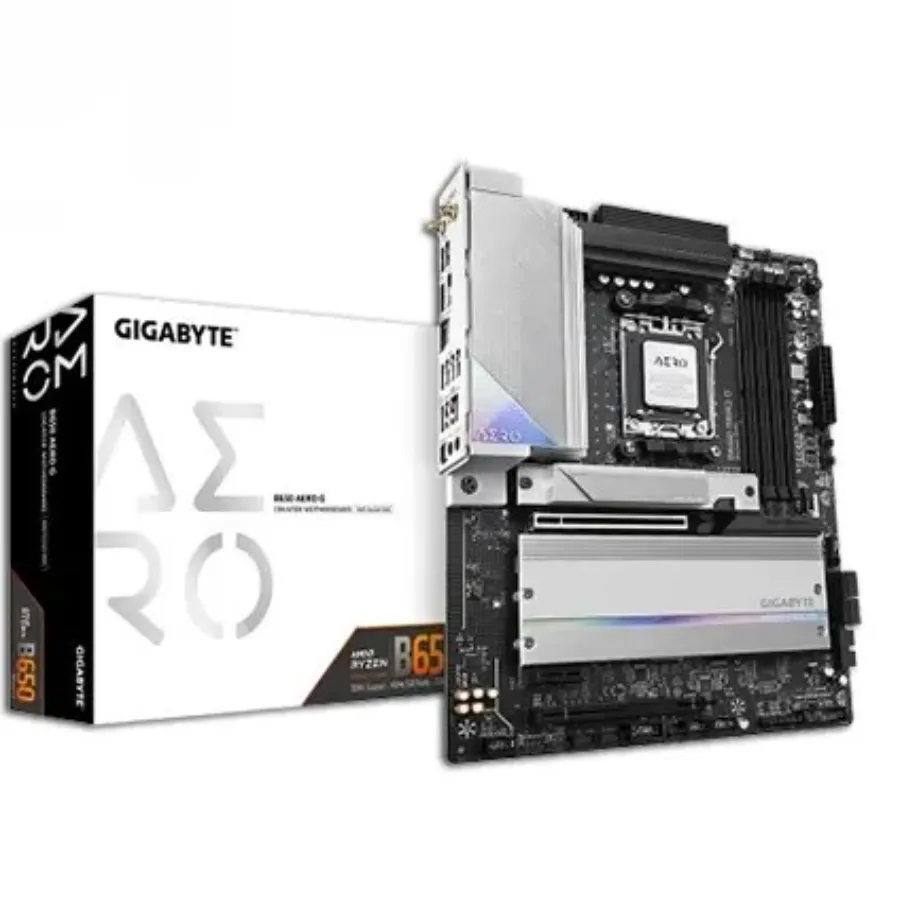

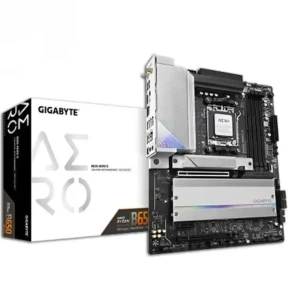

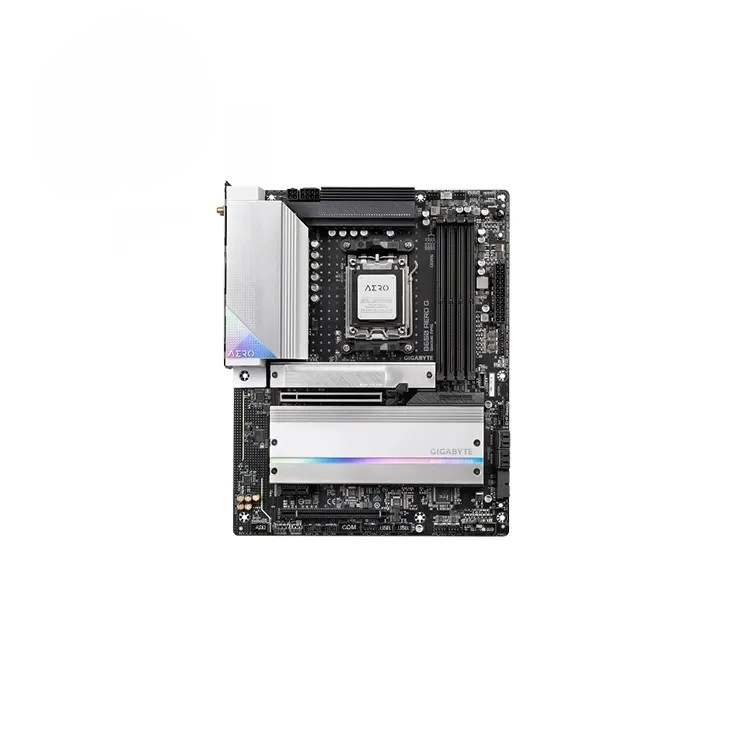

B650 AERO G (rev. 1.0)

CPU Support:

  AMD Socket AM5

  Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Refer to "CPU Support List" for more details)

Chipset:

  AMD B650

Memory:

  Supports DDR5 memory with speeds up to 8000 MT/s (OC)

  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per module)

  Dual channel memory architecture

  Supports non-ECC, unbuffered DIMM modules

  AMD EXPO™ & XMP memory overclocking profiles supported

Graphics:

  Integrated Graphics Processor:

    1 x USB Type-C® (USB 3.2 Gen 2) port with DisplayPort support (Max: 3840x2160@144 Hz)

    1 x HDMI 2.1 port (Max: 4096x2160@60 Hz)

    Support for DisplayPort 1.4, HDCP 2.3

Audio:

  Realtek® ALC1220-VB Codec

  High Definition Audio (2/4/5.1/7.1-channel)

  Supports S/PDIF out

Network:

  LAN: Intel® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)

  Wireless: AMD Wi-Fi 6E RZ616 (2.4/5/6 GHz) with Bluetooth 5.2

Expansion Slots:

  1 x PCIe 4.0 x16 (for AMD Ryzen™ 7000 Series Processors)

  1 x PCIe 4.0 x4 (shared with M2C_SB connector)

  1 x PCIe 3.0 x1

Storage:

  3 x M.2 Connectors:

    M2A_CPU: PCIe 5.0 x4/x2 SSDs (7000 Series), PCIe 4.0 (8000 Series)

    M2B_CPU: PCIe 4.0 x4/x2 SSDs

    M2C_SB: PCIe 4.0 x4 SSDs

  4 x SATA 6Gb/s connectors

  RAID 0, 1, 10 support (for both NVMe and SATA)

USB Ports:

  Back Panel:

    1 x USB Type-C® (USB 3.2 Gen 2)

    3 x USB 3.2 Gen 2 Type-A (red)

    4 x USB 3.2 Gen 1

    2 x USB 2.0/1.1

  Internal:

    1 x USB Type-C® (USB 3.2 Gen 2x2)

    2 x USB 3.2 Gen 1

    4 x USB 2.0/1.1

Internal I/O:

  1 x 24-pin ATX power connector

  1 x 8-pin and 1 x 4-pin ATX 12V power connectors

  1 x CPU fan header, 1 x water cooling CPU fan header

  4 x system fan headers

  2 x system fan/water cooling pump headers

  2 x addressable LED strip headers, 2 x RGB LED strip headers

  3 x M.2 connectors, 4 x SATA connectors

  1 x front panel audio, 1 x front panel header

  1 x USB Type-C® header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

  2 x temperature sensor headers, 1 x noise detection header

  1 x THB_U4 add-in card connector

  1 x TPM header, 1 x Q-Flash Plus button, 1 x reset button/jumper

Back Panel I/O:

  2 x SMA antenna connectors

  1 x HDMI port

  1 x DisplayPort In port

  3 x USB 3.2 Gen 2 Type-A (red)

  1 x USB Type-C® (USB 3.2 Gen 2)

  4 x USB 3.2 Gen 1

  1 x RJ-45 (2.5G LAN)

  2 x audio jacks, 1 x optical S/PDIF out

Miscellaneous:

  BIOS: AMI UEFI BIOS, 256 Mbit Flash

  Form Factor: ATX, 30.5cm x 24.4cm

  Unique Features:

    GIGABYTE Control Center (GCC)

    Q-Flash / Q-Flash Plus support

    Norton Internet Security (OEM)

    Windows 11 and Windows 10 64-bit support
