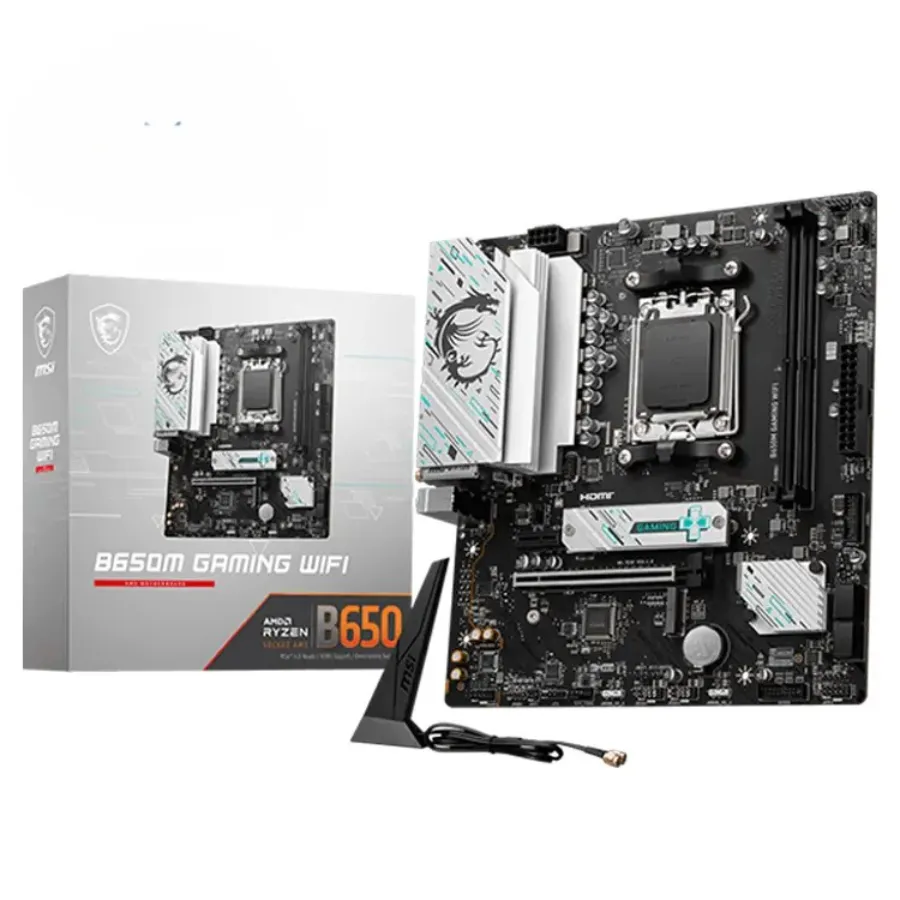

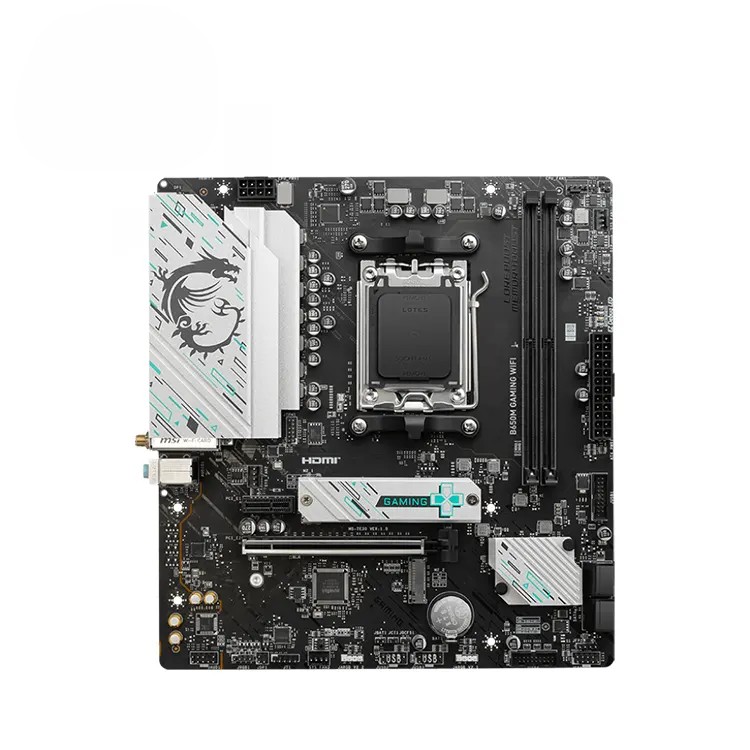

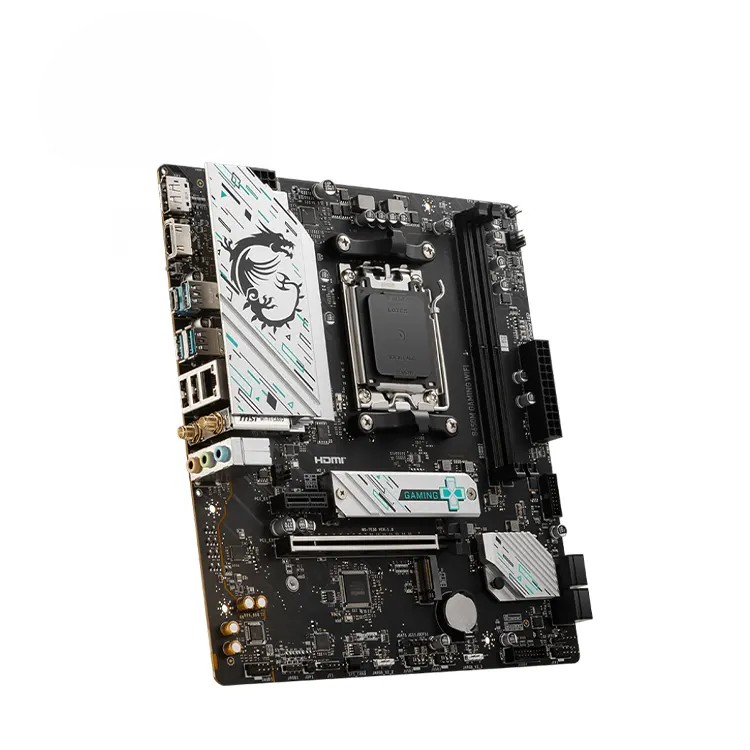

MSI B650M GAMING WIFI – Overview

Chipset: AMD B650

CPU Support: AMD Ryzen 9000/8000/7000 Series (Socket AM5)

Memory:

2x DDR5 slots, up to 128GB

Supports speeds up to DDR5 7800+(OC)

AMD EXPO support

Graphics Outputs:

1x HDMI 2.1 (4K 60Hz)

1x DisplayPort 1.4 (4K 60Hz)

Requires a CPU with integrated graphics

Expansion Slots:

1x PCI-E x16 (Supports PCIe 4.0 from CPU)

1x PCI-E x1 (PCIe 3.0 from chipset)

Storage:

2x M.2 (PCIe 4.0 x4)

4x SATA 6Gbps

RAID support (RAID 0, 1, 10 for SATA & NVMe)

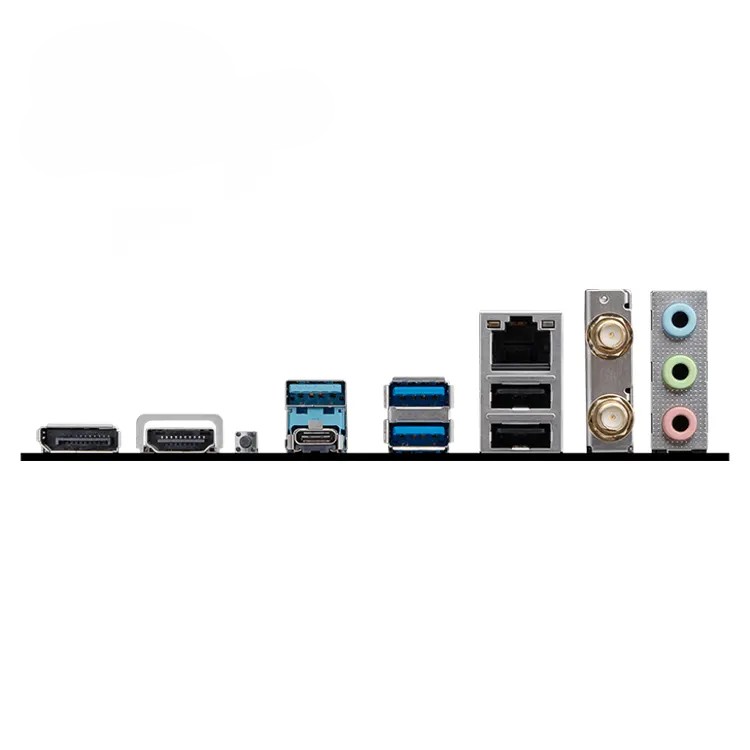

USB Ports:

Rear: 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

Front: 4x USB 2.0, 4x USB 5Gbps Type-A

Networking:

Realtek RTL8125BG 2.5Gbps LAN

Wi-Fi 6E with MU-MIMO & Bluetooth 5.3

Audio:

Realtek ALC897, 7.1-Channel HD Audio

Internal Connectors:

1x 24-pin ATX Power, 1x 8-pin CPU Power

1x CPU Fan, 3x System Fan

2x Addressable RGB, 1x RGB LED Header

TPM 2.0 Support

Form Factor: mATX (226mm x 243.84mm)

OS Support: Windows 11 64-bit, Windows 10 64-bit
