CPU

  AMD Socket AM4, supporting:

    AMD Ryzen™ 5000 G-Series Processors

    AMD Ryzen™ 5000 Series Processors

    AMD Ryzen™ 4000 G-Series Processors

    AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

    (Refer to the "CPU Support List" for more information)

Chipset

  AMD A520

Memory

  2 x DDR4 DIMM sockets, supporting up to 64 GB (32 GB per DIMM)

  Supported Memory Speeds:

    DDR4 5100(O.C.), 4800(O.C.), 4600(O.C.), 4400(O.C.), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3200, 2933, 2667, 2400, 2133 MHz

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

  Support for Extreme Memory Profile (XMP) memory modules

  (Refer to the "Memory Support List" for more information)

Onboard Graphics

  Integrated Graphics Processor:

    1 x D-Sub port, max resolution 1920x1200@60 Hz

    1 x HDMI port, max resolution 4096x2160@60 Hz

      Supports HDMI 2.1, HDCP 2.3, and HDR

    Maximum shared memory: 16 GB

Audio

  Realtek® Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel support

    To configure 7.1-channel audio, access the audio software for settings

LAN

  Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

  CPU:

    1 x PCI Express x16 slot (PCIe 3.0, running at x16)

  Chipset:

    1 x PCI Express x1 slot (PCIe 3.0, running at x1)

Storage Interface

  CPU:

    1 x M.2 connector (Socket 3, M key, type 2280, supports SATA and PCIe 3.0 x4/x2 SSD)

  Chipset:

    4 x SATA 6Gb/s connectors

    Supports RAID 0, RAID 1, and RAID 10

USB

  CPU:

    4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

    2 x USB 3.2 Gen 1 ports (via internal header)

    6 x USB 2.0/1.1 ports (2 on the back panel, 4 via internal headers)

Internal I/O Connectors

  1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x CPU fan header

  1 x system fan header

  1 x M.2 Socket 3 connector

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x Trusted Platform Module (TPM) header

  1 x speaker header

  1 x Clear CMOS jumper

  1 x chassis intrusion header

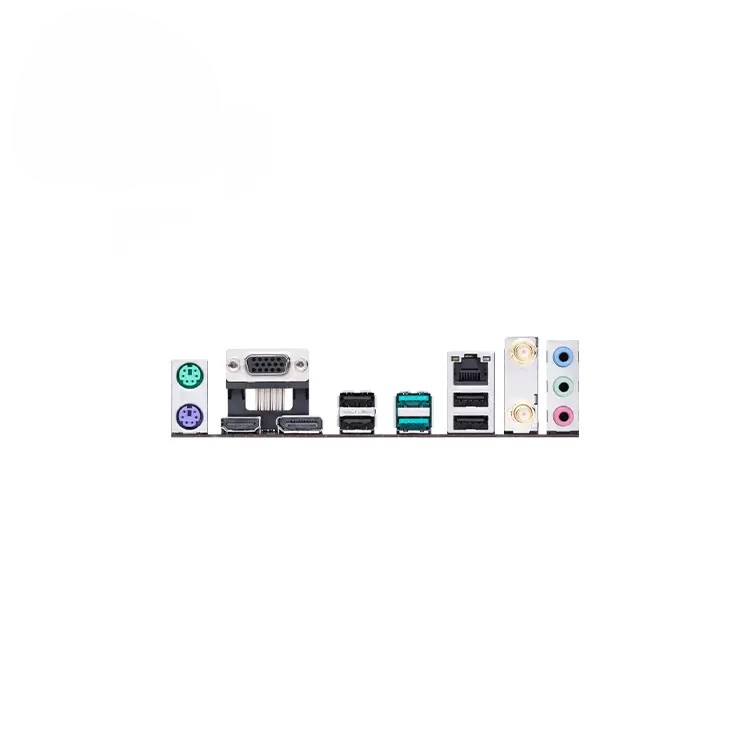

Back Panel Connectors

  1 x PS/2 keyboard/mouse port

  1 x D-Sub port

  1 x HDMI port

  4 x USB 3.2 Gen 1 ports

  2 x USB 2.0/1.1 ports

  1 x RJ-45 port

  3 x audio jacks

I/O Controller

  iTE® I/O Controller Chip

H/W Monitoring

  Voltage, temperature, and fan speed detection

  Fan fail warning

  Fan speed control (dependent on cooler)

BIOS

  1 x 128 Mbit flash

  Licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  Support for APP Center (availability varies by model)

    @BIOS, EasyTune, Smart Backup, System Information Viewer

  Support for Q-Flash and Xpress Install

Bundled Software

  Norton® Internet Security (OEM version)

  LAN bandwidth management software

Operating System

  Supports Windows 11 64-bit

  Supports Windows 10 64-bit

Form Factor

  Micro ATX, 23.3cm x 19.8cm
