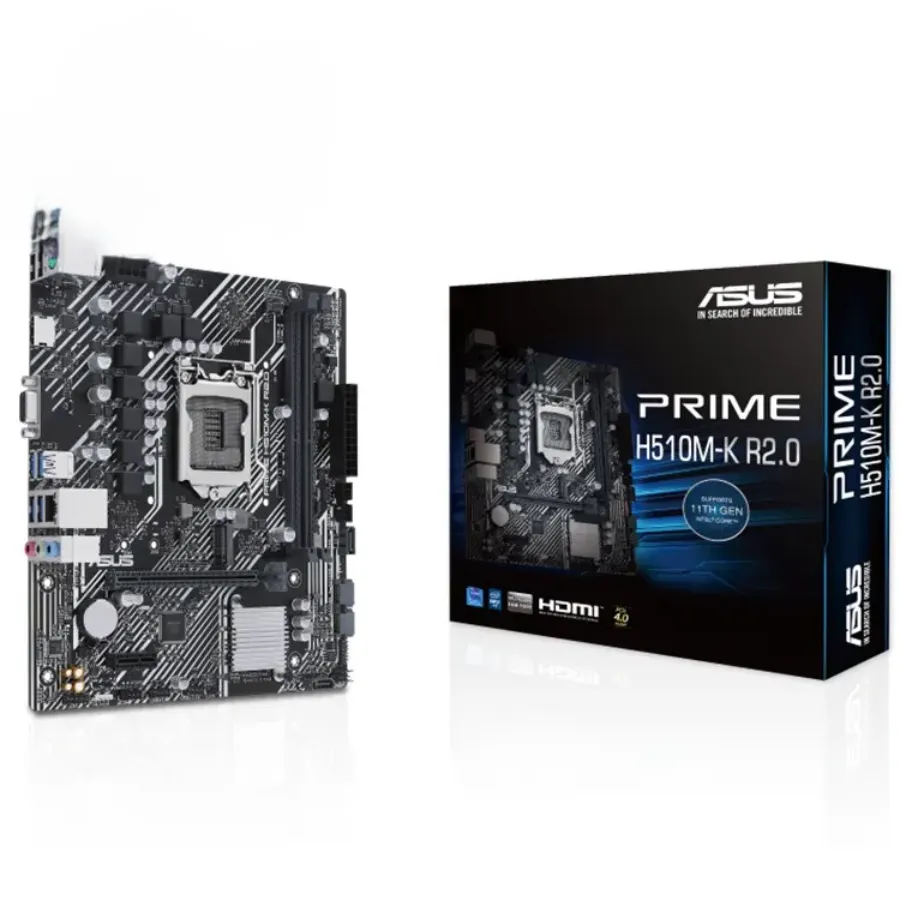

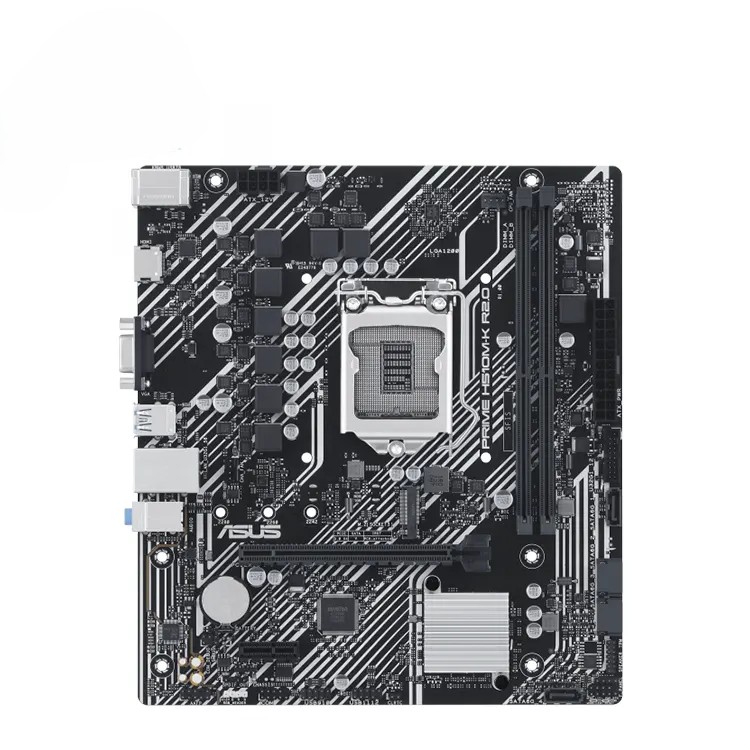

ASUS PRIME H510M-K R2.0 – Micro ATX Motherboard

CPU Support

Intel® LGA 1200 socket, compatible with 11th and 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Supports Intel® 14 nm CPU

Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 support (depends on CPU)

Chipset

Intel® H510 chipset

Memory

2 x DIMM slots, up to 64GB DDR4

Supported speeds: DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz

Dual-channel memory architecture

Intel® Extreme Memory Profile (XMP) support

Speed support depends on CPU generation

Graphics

1 x VGA port

1 x HDMI port (HDMI 2.1 for 11th Gen CPUs with max resolution 4K@60Hz, HDMI 1.4 for 10th Gen CPUs with max resolution 4K@30Hz)

Expansion Slots

1 x PCIe 4.0/3.0 x16 slot

PCIe 4.0 x16 support with 11th Gen CPUs

PCIe 3.0 x16 support with 10th Gen CPUs

1 x PCIe 3.0 x1 slot

Storage

1 x M.2 slot (Key M, supports PCIe 3.0 x4 & SATA modes, 2242/2260/2280)

4 x SATA 6Gb/s ports

Ethernet

Realtek 1Gb Ethernet

USB Ports

Rear Panel (6 ports)

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0 Type-A

Front Panel (6 ports via headers)

1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)

2 x USB 2.0 headers (supporting 4 additional USB 2.0 ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports jack detection, multi-streaming, front panel jack-retasking

Up to 24-bit/192 kHz playback

Requires chassis with HD audio module for 7.1 surround sound

Audio Features

Audio shielding

Premium audio capacitors

Dedicated PCB layers for audio

Back Panel I/O Ports

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0 Type-A

1 x VGA port

1 x HDMI port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Cooling & Power

1 x 4-pin CPU fan header

1 x 4-pin chassis fan header

1 x 24-pin main power connector

1 x 8-pin +12V power connector

Storage

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports)

2 x USB 2.0 headers (support 4 USB 2.0 ports)

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM port header

1 x Front panel audio header (AAFP)

1 x S/PDIF out header

1 x Speaker header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin system panel header

Special Features

ASUS 5X Protection III

DIGI+ VRM

LANGuard

Overvoltage Protection

SafeSlot Core

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-LED Core

Q-Slot

ASUS Thermal Solution

Aluminum heatsink design

ASUS Lighting Control

RGB header

Software & BIOS

ASUS Exclusive Software

Armoury Crate

AI Suite 3 (includes TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, EZ Update)

ASUS CPU-Z

Norton 360 Deluxe (60-day free trial)

WinRAR

UEFI BIOS

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

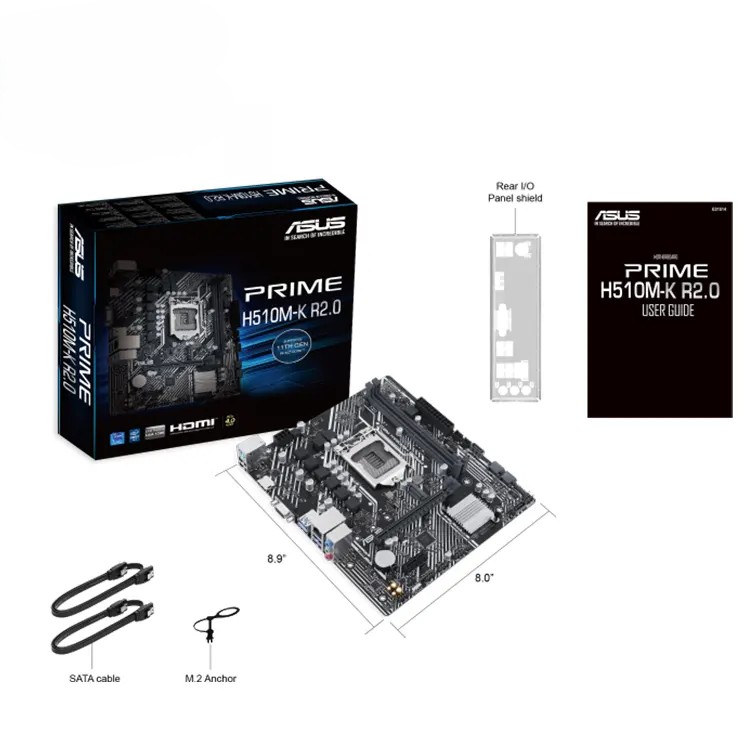

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O shield

1 x M.2 anchor

Documentation

1 x User guide

Operating System Compatibility

Windows 10 64-bit

Form Factor

Micro-ATX (8.9 inch x 8.0 inch / 22.6 cm x 20.3 cm)
