Model:

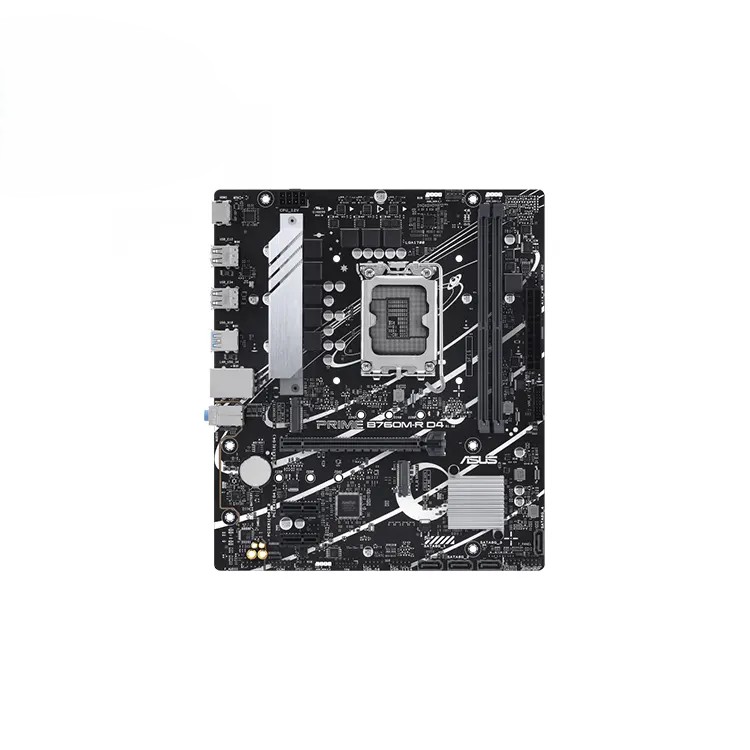

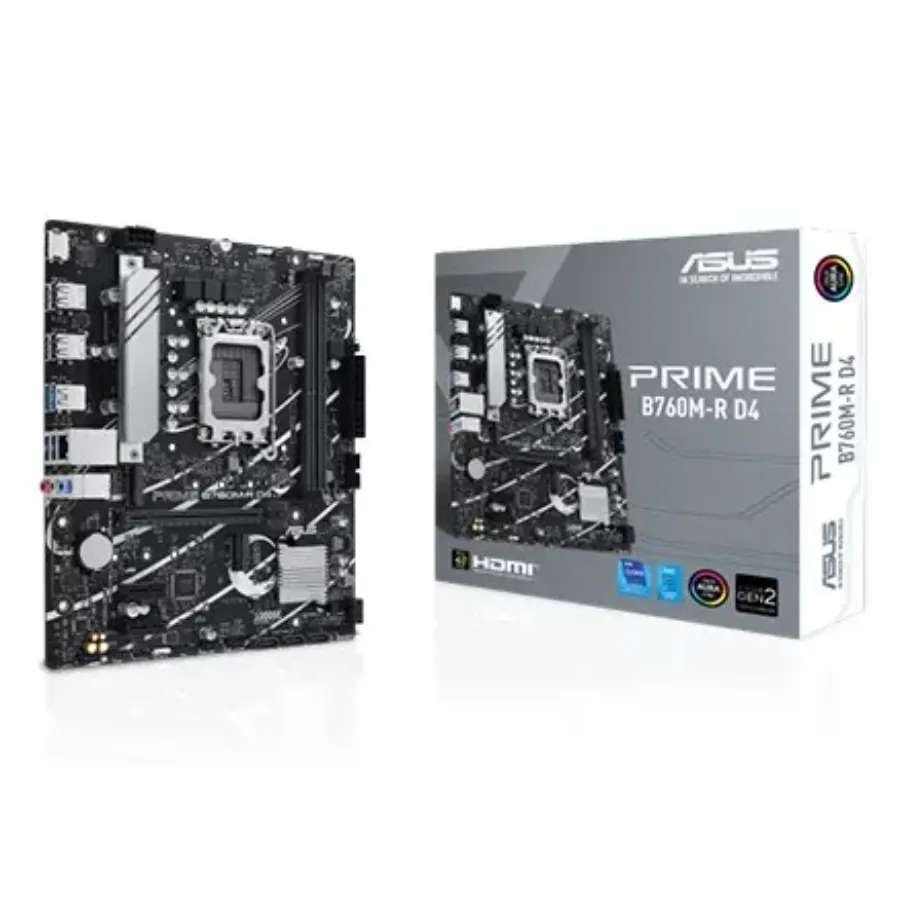

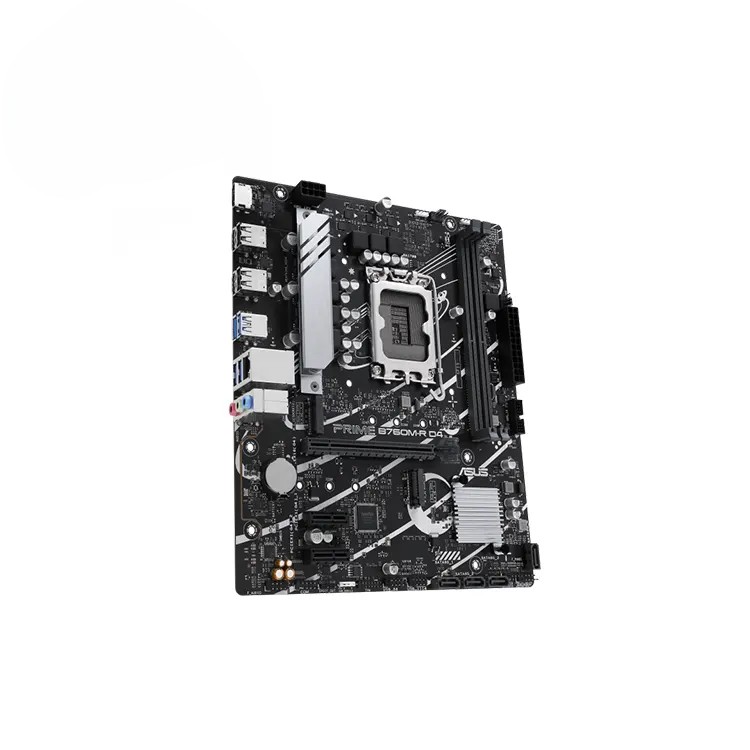

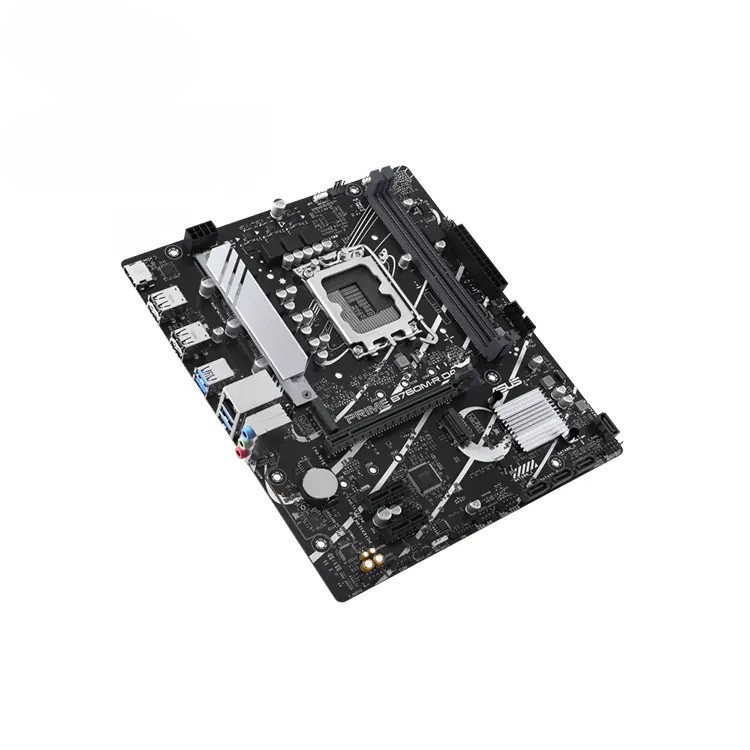

PRIME B760M-R D4

BIOS & Updates:

The latest BIOS update enhances stability for Intel Core 13th and 14th Gen processors.

CPU Support:

Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Pentium® Gold and Celeron® processors.

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (support depends on CPU).

Chipset:

Intel® B760 Chipset

Memory:

2 x DIMM slots, up to 64GB DDR4 memory

Supports speeds up to 5333(OC) MHz

Dual-channel memory architecture and Intel® Extreme Memory Profile (XMP) support

Graphics:

1 x HDMI™ port supporting 4K@60Hz (HDMI 2.1)

Graphics capabilities depend on the CPU.

Expansion Slots:

1 x PCIe 4.0 x16 slot for graphics cards

2 x PCIe 4.0 x1 slots for expansion cards

Storage:

2 x M.2 slots (PCIe 4.0 x4)

4 x SATA 6Gb/s ports

Supports Intel® Rapid Storage Technology with RAID 0/1/5/10

Ethernet:

1 x Realtek 2.5Gb Ethernet port

USB Ports:

Rear I/O: 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A

Front I/O: 1 x USB 5Gbps header (supports 2 USB 5Gbps ports), 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit/192 kHz playback

Audio shielding, premium audio capacitors, and dedicated audio PCB layers

Back Panel I/O Ports:

4 x USB 5Gbps ports (Type-A)

4 x USB 2.0 ports (Type-A)

1 x HDMI™ port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors:

1 x 4-pin CPU fan header, 2 x 4-pin chassis fan headers

1 x 24-pin main power connector, 1 x 8-pin +12V power connector

2 x M.2 slots, 4 x SATA 6Gb/s ports

1 x USB 5Gbps header (supports 2 additional ports), 2 x USB 2.0 headers (support 4 additional ports)

3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front panel audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

Special Features:

ASUS 5X PROTECTION III: Includes DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, and a stainless-steel back I/O.

ASUS Q-Design: Features Q-DIMM, Q-LED Core, and Q-Slot for easier setup.

ASUS EZ DIY: ProCool and other features for easy system assembly.

ASUS Thermal Solution: VRM heatsink design for improved cooling.

Aura Sync: Addressable Gen 2 headers for synchronized RGB lighting.

Software Features:

Armoury Crate: Includes Aura Sync, Fan Xpert 2+, Power Saving, and Two-Way AI Noise Cancelation.

AI Suite 3: DIGI+ VRM, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS with ASUS EZ DIY features.

Operating System Support:

Windows® 11, Windows® 10 64-bit

Form Factor:

micro-ATX (24.4cm x 21.1cm)

Accessories:

2 x SATA 6Gb/s cables

1 x I/O shield

2 x M.2 anchors

1 x Quick start guide

Summary:

The ASUS PRIME B760M-R D4 is an excellent choice for those seeking a balance of performance, connectivity, and features in a micro-ATX form factor. It is well-suited for gaming, content creation, and future AI applications with support for the latest Intel processors.
