Chipset & CPU

Chipset: AMD B650

CPU Support: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors (Socket AM5)

Memory

Memory Slots: 4x DDR5 slots

Maximum Memory Capacity: 256GB

Supported Memory Speeds:

DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Max Overclocking Frequencies:

1DPC 1R: Up to 7200+ MHz

1DPC 2R: Up to 6000+ MHz

2DPC 1R: Up to 6000+ MHz

2DPC 2R: Up to 5400+ MHz

Supports: Dual-channel mode, non-ECC, un-buffered memory, AMD EXPO

Graphics & Video Outputs

Onboard Graphics (only with integrated graphics CPUs):

1x HDMI™ 2.1 (up to 4K 60Hz)

1x DisplayPort 1.4 (up to 4K 60Hz)

1x VGA (up to 1920x1200 60Hz)

Expansion Slots

1x PCI-E x16 slot (supports x16 for Ryzen™ 9000/7000, x8 for Ryzen™ 8700/8600/8400, and x4 for Ryzen™ 8500/8300)

2x PCI-E x1 slots

PCI-E Slots:

PCI_E1 Gen PCIe 4.0 (up to x16 from CPU)

PCI_E2 Gen PCIe 3.0 (up to x1 from Chipset)

PCI_E3 Gen PCIe 3.0 (up to x1 from Chipset)

Audio

Codec: Realtek® ALC897

Audio: 7.1-Channel High Definition Audio

Storage

2x M.2 Slots (supports PCIe 4.0 x4, 2280/2260 devices)

4x SATA 6Gb/s ports

RAID Support:

RAID 0, 1, and 10 for SATA

RAID 0 and 1 for M.2 NVMe

USB Ports

Rear:

4x USB 2.0

2x USB 5Gbps Type A

2x USB 10Gbps Type A

1x USB 10Gbps Type C

Front:

4x USB 2.0

2x USB 5Gbps Type A

1x USB 10Gbps Type C

Networking

LAN: Realtek® 8125BG 2.5G LAN

Internal I/O

Power Connectors (ATX_PWR, CPU_PWR)

1x CPU Fan, 1x Pump Fan, 3x System Fans

2x Front Panel (JFP), 1x Chassis Intrusion (JCI)

1x Front Audio (JAUD), 1x Com Port (JCOM)

RGB Connectors: 2x Addressable V2 RGB LED, 2x RGB LED

1x TPM Pin Header (Support TPM 2.0)

4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port

LED Features

4x EZ Debug LED

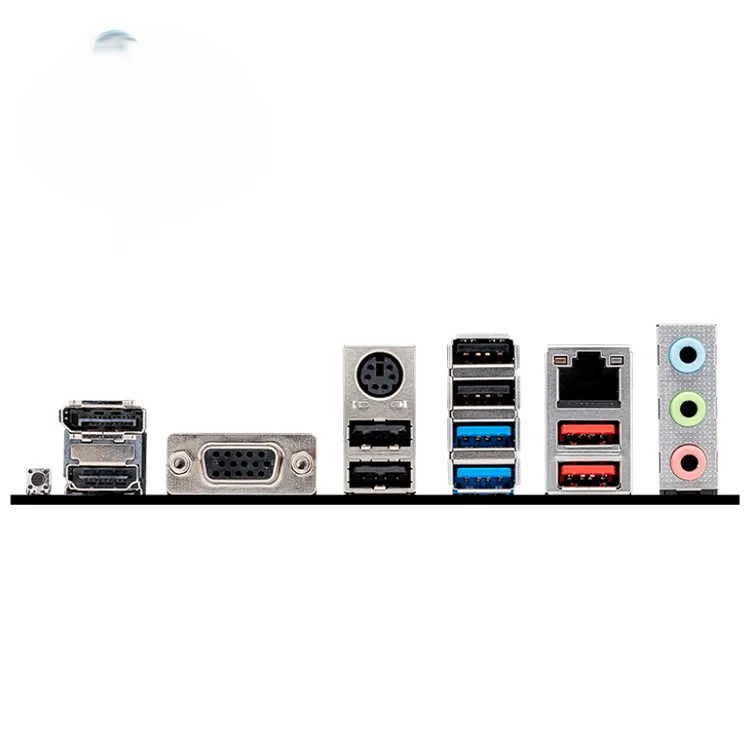

Back Panel Ports

Display Ports: DisplayPort, VGA

USB Ports: USB 2.0, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A

LAN: 2.5G LAN

Audio: Audio connectors

Other: Flash BIOS Button, HDMI™ port, Keyboard/Mouse

Operating System

Supports Windows® 11 64-bit and Windows® 10 64-bit

Form Factor

Form Factor: mATX (243.84mm x 243.84mm)
