CPU:

AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors

Refer to ASUS website for CPU support list.

Chipset:

AMD X870

Memory:

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000, 8000, & 7000 Series processors

Dual-channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Graphics:

1 x DisplayPort

1 x HDMI™ port

2 x USB4® (40Gbps) ports (support USB Type-C® display outputs)

Maximum supported resolution: 8K@30Hz (DisplayPort), 4K@60Hz (HDMI)

Expansion Slots:

1 x PCIe 5.0 x16 slot (supports x16 mode)

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage:

4 x M.2 slots, 2 x SATA 6Gb/s ports

M.2_1 (Key M), PCIe 5.0 x4 mode

M.2_2 (Key M), PCIe 5.0 x4 mode (for Ryzen™ 9000 & 7000)

M.2_3 (Key M), PCIe 4.0 x4 mode

M.2_4 (Key M), PCIe 4.0 x4 mode

RAID 0/1/5/10 support with AMD RAIDXpert2 Technology (for Ryzen™ 9000 series)

Ethernet:

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth:

Wi-Fi 7 (2x2), 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth® v5.4

USB Ports (Total 12 Rear Ports):

2 x USB4® (40Gbps) ports (USB Type-C® with DP Alt mode)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)

4 x USB 5Gbps ports (4 x Type-A)

Audio:

ROG SupremeFX 7.1 Surround Sound with ALC4080 codec

120 dB SNR stereo playback, 110 dB SNR recording input

Supports up to 32-Bit/384 kHz playback

Rear optical S/PDIF out port

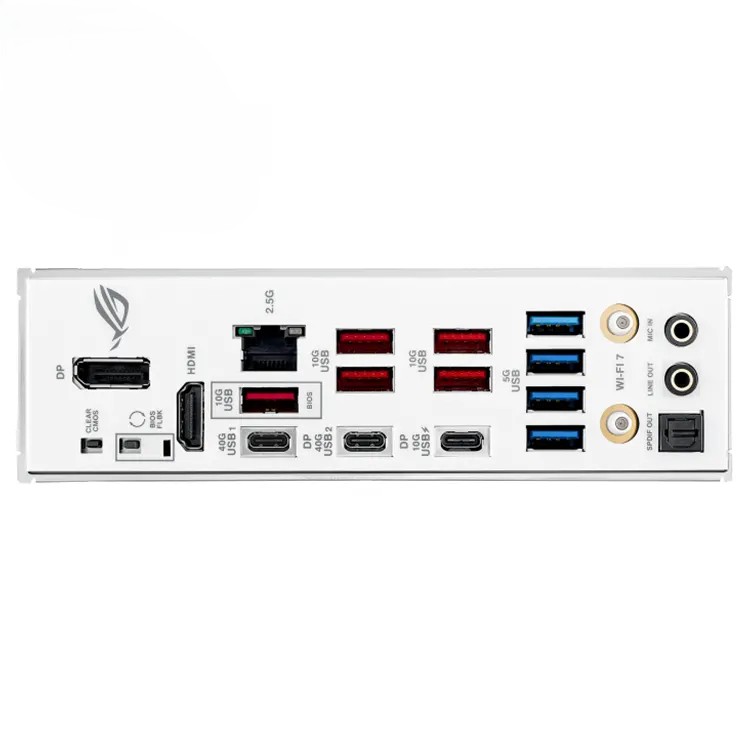

Back Panel I/O Ports:

2 x USB4® (40Gbps) ports

6 x USB 10Gbps ports

4 x USB 5Gbps ports

1 x DisplayPort

1 x HDMI™ port

1 x Intel® 2.5Gb Ethernet

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connectors:

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

5 x 4-pin Chassis Fan headers

4 x M.2 slots

2 x SATA 6Gb/s ports

2 x USB 5Gbps headers

Special Features:

Extreme Engine Digi+

ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Slide)

SafeSlot, SafeDIMM

Aura Sync with Addressable Gen 2 headers

Software Features:

ROG CPU-Z, Dolby Atmos

Armoury Crate, AIDA64 Extreme, Fan Xpert 4, GameFirst

HWiNFO, Power Saving, TurboV Core

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

Form Factor:

ATX Form Factor

Dimensions: 12" x 9.6" (30.5 cm x 24.4 cm)

Operating System:

Windows 11

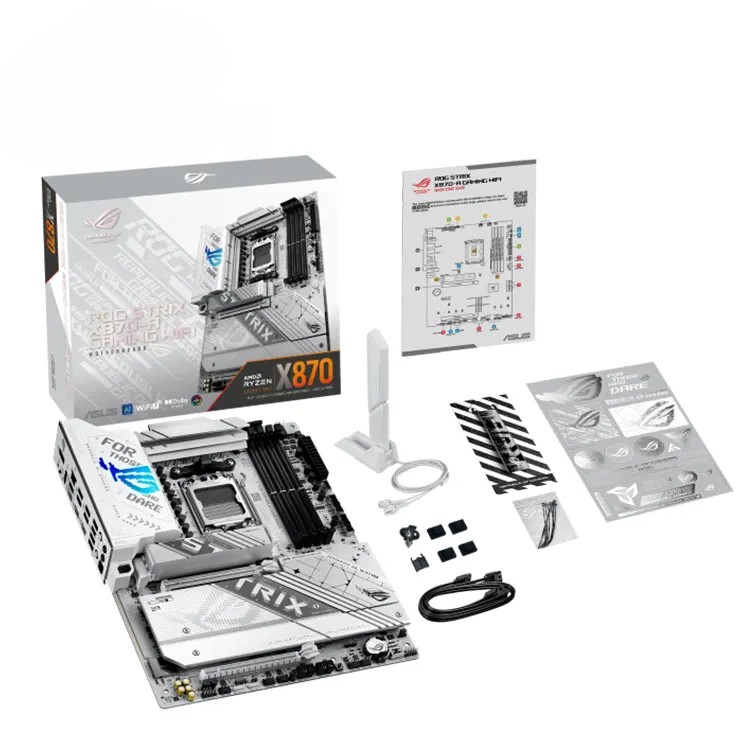

Accessories Included:

2 x SATA 6Gb/s cables

1 x ASUS WiFi Q-Antenna

1 x M.2 Q-Latch package

1 x Quick start guide
