CPU

Supports Intel® Core™ Ultra Processors (Series 2)

Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0

Chipset

Intel® B860 Chipset

Memory

4 x DIMM slots, up to 256GB DDR5

Supports up to 9066+MT/s (OC), Non-ECC, Unbuffered

Dual-channel memory architecture

Supports Intel® XMP and ASUS Enhanced Memory Profile III (AEMPIII)

Graphics

1 x DisplayPort 1.4 (4K@60Hz)

1 x HDMI™ 2.1 (4K@60Hz)

1 x Intel® Thunderbolt™ 4 (supports DisplayPort and Thunderbolt™ video output, up to 8K@60Hz with DSC)

Expansion Slots

1 x PCIe 5.0 x16 slot

Storage

4 x M.2 slots & 4 x SATA 6Gb/s ports

M.2_1: PCIe 5.0 x4 (CPU)

M.2_2, M.2_3, M.2_4: PCIe 4.0 x4 (Chipset)

Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)

Networking

Intel® 2.5Gb Ethernet with ASUS LANGuard

Wi-Fi 7 (802.11be) 2x2 with 160MHz bandwidth (up to 2.9Gbps)

Bluetooth® v5.4

USB Ports

Rear I/O (10 ports):

1 x Thunderbolt™ 4 (USB-C)

1 x USB 20Gbps (USB-C)

1 x USB 10Gbps (Type-A)

3 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

Front Panel (6 ports):

1 x USB 10Gbps (USB-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 3 ports)

Audio

Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC

SupremeFX Shielding Technology

Savitech SV3H712 AMP

Optical S/PDIF out port

Supports up to 32-bit/192kHz playback

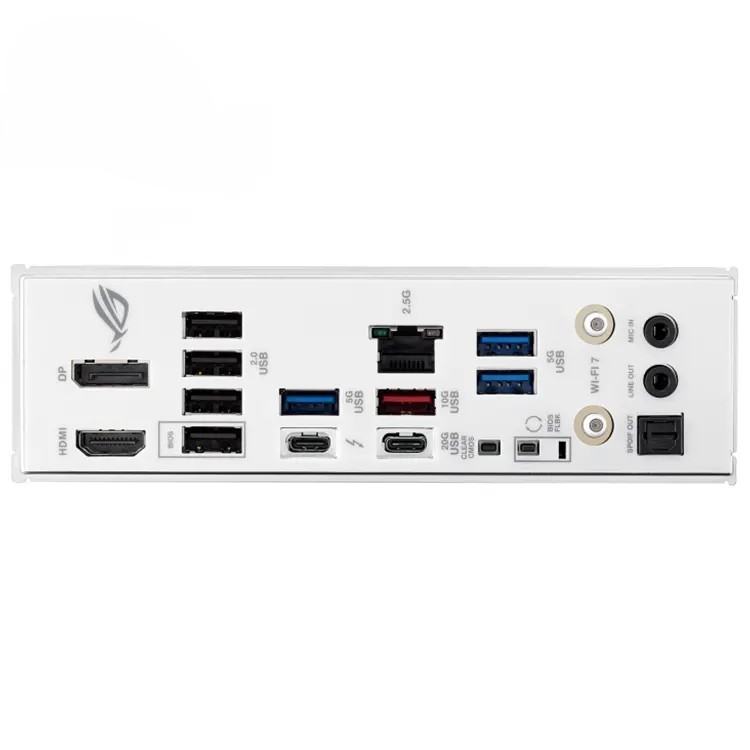

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB-C

1 x USB 20Gbps (USB-C with DP Alt mode)

1 x USB 10Gbps (Type-A)

3 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

1 x DisplayPort, 1 x HDMI™

1 x Intel® 2.5Gb Ethernet

1 x Wi-Fi module

2 x Audio jacks, 1 x Optical S/PDIF

1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Internal I/O Connectors

1 x 24-pin ATX Power

2 x 8-pin CPU Power

4 x 4-pin Fan headers (CPU, CPU OPT, AIO, Chassis)

4 x M.2 slots, 4 x SATA 6Gb/s ports

1 x USB 10Gbps header (USB-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 3 ports)

3 x Addressable Gen2 RGB headers

Special Features

ASUS Q-Design: M.2 Q-Latch, PCIe Q-Release, Q-LED Diagnostics

ASUS Thermal Solution: VRM heatsink, M.2 heatsinks with backplate

ASUS EZ DIY: BIOS FlashBack™, Clear CMOS button, Pre-mounted I/O shield

Aura Sync RGB

Software & BIOS

ROG Software: ROG CPU-Z, Dolby Atmos

ASUS Exclusive Software: Armoury Crate, Fan Xpert 4, GameFirst

UEFI BIOS: EZ Mode, MyHotkey, AI Overclocking Guide

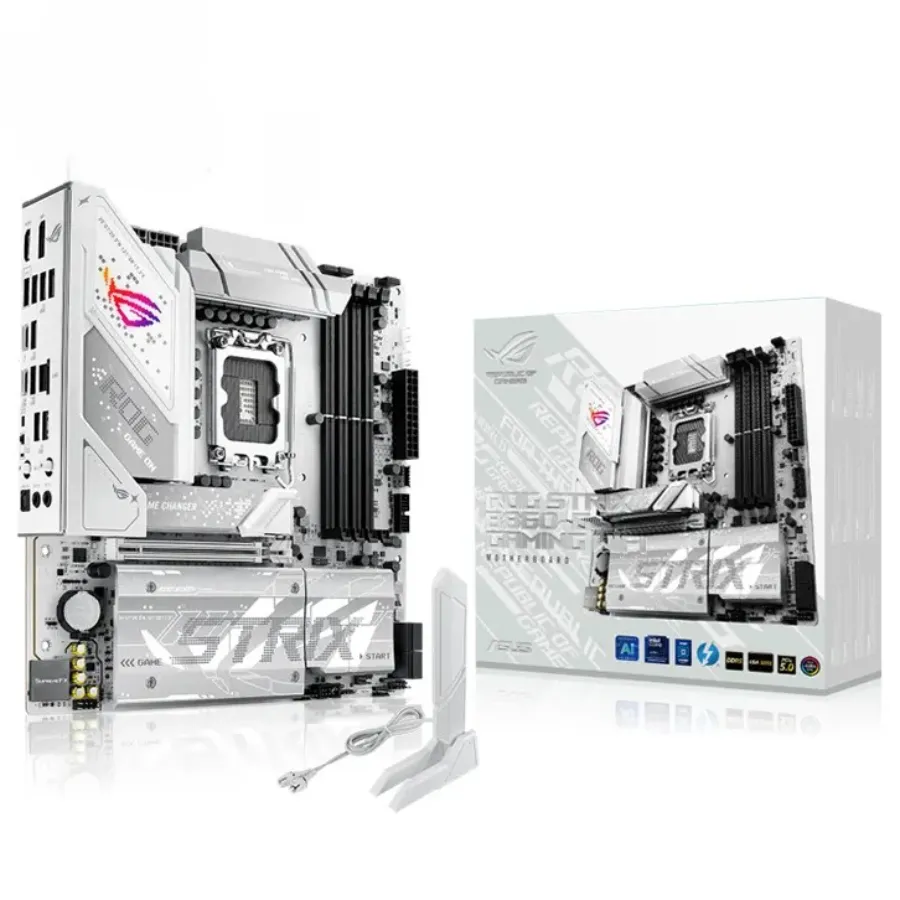

Accessories: SATA cables, ASUS Wi-Fi Q-Antenna, ROG keychain, M.2 rubbers

Operating System Support

Windows 11 (22H2 & later)

Form Factor

Micro-ATX (24.4 cm x 24.4 cm)
