CPU Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors (AM5 socket)

Memory:

Supports up to 256GB DDR5 (4x DDR5 UDIMM)

Memory speeds: DDR5 8400 - 5600 (OC), 5600 - 4800 (JEDEC)

Maximum overclocking frequencies (for Ryzen 9000 series processors):

1DPC 1R: up to 8400+ MT/s

1DPC 2R: up to 6400+ MT/s

2DPC 1R: up to 6400+ MT/s

2DPC 2R: up to 4800+ MT/s

Supports AMD EXPO™ memory overclocking, dual-channel mode, and non-ECC un-buffered memory.

Graphics and Display:

Onboard Graphics:

1x HDMI™ (8K 60Hz)

2x Type-C DisplayPort (4K 60Hz via USB4®)

Supports integrated graphics (varies with CPU).

Expansion Slots:

PCI-E Slots:

PCI-E1: Gen 5.0 x16 (From CPU)

PCI-E2: Gen 3.0 x1 (From Chipset)

PCI-E3: Gen 4.0 x4 (From Chipset)

PCI-E3 slot can be configured to x4, but this disables the M2_3 slot.

Storage:

M.2 Slots:

M.2_1 (From CPU): PCIe 5.0 x4, supports up to 22110/2280 devices

M.2_2 (From CPU): PCIe 5.0 x4, supports 2280/2260 devices

M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260 devices

M.2_4 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices

SATA Ports: 4x SATA 6Gb/s

Audio:

Realtek® ALC4080 Codec: 7.1-channel high-performance audio

Supports up to 32-bit/384kHz playback on front panel

Supports S/PDIF output

USB Ports:

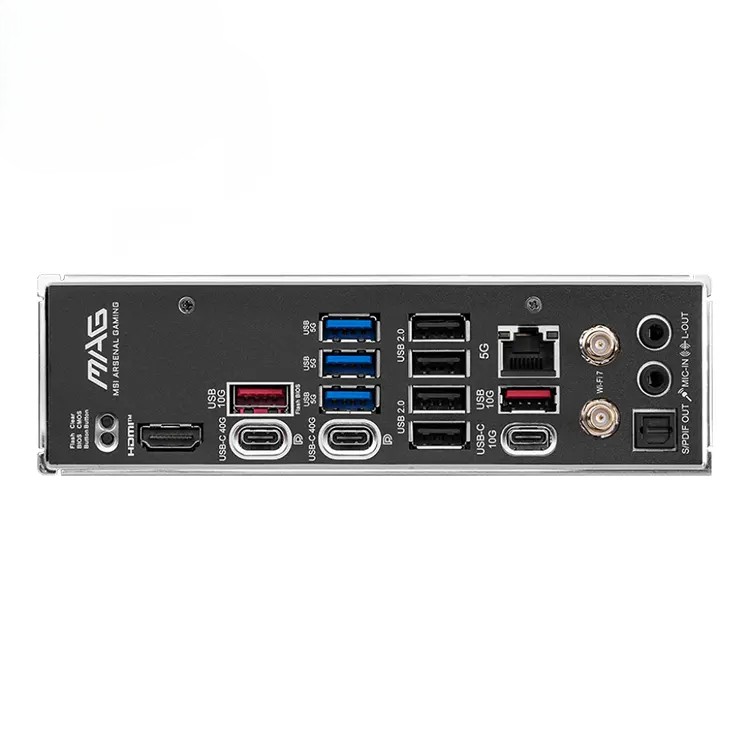

Rear Ports:

1x USB 20Gbps Type-C

2x USB 40Gbps Type-C

3x USB 5Gbps Type-A

2x USB 10Gbps Type-A

1x USB 10Gbps Type-A

1x USB 2.0

Clear CMOS Button and Flash BIOS Button

5G LAN

Wi-Fi/Bluetooth and Audio connectors

Front Ports:

1x USB 20Gbps Type-C

4x USB 5Gbps Type-A

4x USB 2.0 Type-A

Networking:

LAN: Realtek® 8126-CG 5G LAN

Wi-Fi: Wi-Fi 7 with speeds up to 5.8Gbps (supports 2.4GHz, 5GHz, and 6GHz bands)

Bluetooth: Bluetooth 5.4, supports MLO and 4KQAM

Multi-GPU and RAID:

Multi-GPU: Supports AMD Multi-GPU

RAID: Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices.

Other Features:

RGB: 3x Addressable V2 RGB LED connectors, 1x RGB LED connector

TPM Header: Supports TPM 2.0 for enhanced security

LEDs: 4x EZ Debug LED, 1x EZ Digit Debug LED for troubleshooting

Operating System:

Supports Windows® 11 64-bit

Form Factor:

ATX (304.8mm x 243.84mm)
