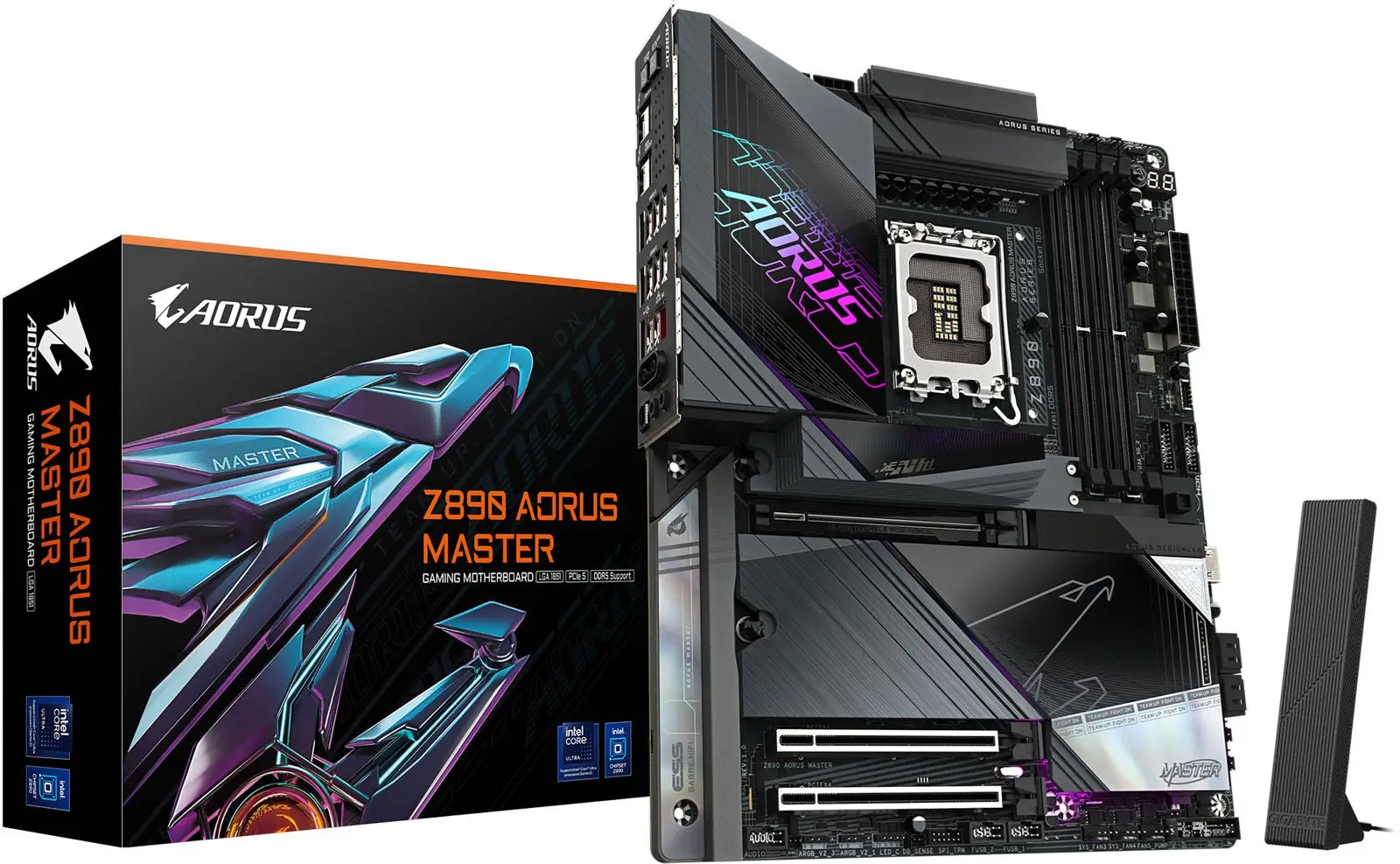

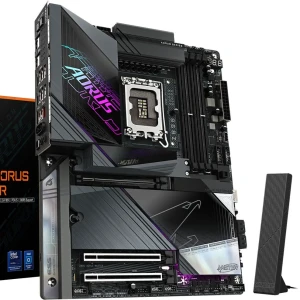

Gigabyte Z890 Aorus Master Motherboard Specification:

CPUSocket: LGA1851, supports Intel® Core™ Ultra ProcessorsL3 Cache: Varies depending on CPU (refer to “CPU Support List”)ChipsetIntel® Z890 Express ChipsetMemorySupported Memory: DDR5 9500(O.C) – 5600 MT/s (varies by module, overclocked options included)4 x DDR5 DIMM slots supporting up to 256 GB (64 GB per DIMM)Dual channel architectureECC Support: Yes, for Un-buffered DIMM 1Rx8/2Rx8 modules (non-ECC mode)Supports XMP and CUDIMM modulesConfiguration Notes: CPU and memory configuration impact supported memory types, speeds, and number of DRAM modules (refer to “Memory Support List” for details)Onboard GraphicsIntel® HD Graphics support via Thunderbolt™ 4 (USB4® USB Type-C®)Resolution:

Thunderbolt™ monitor: 5120×2880@60 Hz (single output)USB4® monitor: 3840×2160@240 Hz (single output)HDMI 1.4: Front HDMI port, up to 1920×1080@30 HzDisplay Support: Up to triple-display simultaneouslyAudioRealtek® ALC1220 CODEC with ESS ES9118 DACAudio Formats: DTS:X® Ultra, High-Definition Audio, 2/4/5.1-channel supportS/PDIF Out: SupportedDSD Audio: Supported via front panel line out jackLANMarvell® AQtion AQC113C 10GbE LAN (supporting 10/5/2.5/1 Gbps)Wireless CommunicationIntel® Wi-Fi 7 BE200NGW (802.11a/b/g/n/ac/ax/be)Supports 2.4/5/6 GHz bandsBluetooth 5.4Wi-Fi 7 support for 320MHz channels (requires Windows 11 SV3)Note: Wi-Fi 7 channels on 6 GHz depend on country regulationsExpansion SlotsCPU:

1 x PCIe 5.0 x16 slot (up to x16)Note: PCIe x16 slot bandwidth shared with M2D_CPU connectorChipset:

1 x PCIe 4.0 x16 slot (x4 mode)1 x PCIe 4.0 x16 slot (x1 mode)Storage InterfaceCPU:

3 x M.2 slots (PCIe 5.0/4.0) for NVMe SSDsChipset:

2 x M.2 slots (PCIe 4.0)4 x SATA 6Gb/s connectorsRAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe and SATA devicesUSBCPU:2 x Intel® Thunderbolt™ 4 ports (USB Type-C®)Chipset:

6 x USB 3.2 Gen 2 Type-A (red) on back panel1 x USB 3.2 Gen 2×2 Type-C (internal header)12 x USB 3.2 Gen 1 and 2.0 ports (back panel + internal headers)Internal I/O Connectors1 x 24-pin ATX main power, 2 x 8-pin ATX 12V connectorsMultiple fan and RGB headersM.2, SATA, USB, and temperature sensor headersTrusted Platform Module (TPM) headerBack Panel Connectors1 x Q-Flash Plus button2 x Thunderbolt™ 4 (USB Type-C®) ports6 x USB 3.2 Gen 2 Type-A ports2 x USB 2.0/1.1 ports1 x RJ-45 LAN port2 x antenna connectors (2T2R)1 x optical S/PDIF OutI/O ControllerChip: iTE® I/O ControllerMonitoring: Voltage, temperature, fan speeds, and water cooling flow rateBIOS256 Mbit flash, licensed AMI UEFI BIOSFeatures: PnP, DMI, WfM, SM BIOS, ACPIUnique FeaturesGIGABYTE Control Center (GCC) supportQ-Flash and Q-Flash PlusSmart Backup supportBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupports Windows 11 64-bitForm FactorATX (30.5 cm x 24.4 cm)

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 18+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AORUS AI SNATCH : Auto-Overclocking Software by AI models
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• DDR Wind Blade : Enhanced Active Cooling for Memory Modules
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 5*M.2 slots, including 2* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
• Fast Networking : 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
• DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
