CPU:

AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset:

AMD X870 Chipset

Memory:

4 x DIMM slots, up to 256GB DDR5

Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series Processors

ECC and Non-ECC, Un-buffered DIMM

Dual-channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics:

1 x HDMI™ port (4K@60Hz, HDMI 2.1)

2 x USB4® (40Gbps) Type-C® ports supporting display output (4K@60Hz, DisplayPort 1.4a)

Graphics specifications depend on CPU

Expansion Slots:

For Ryzen™ 9000 & 7000 Series:

1 x PCIe 5.0 x16 slot (x16 mode)

For Ryzen™ 8000 Series:

1 x PCIe 4.0 x16 slot (x8/x4 mode)

Chipset-based Slots:

3 x PCIe 4.0 x16 slots (x1 mode)

Storage:

4 x M.2 slots and 2 x SATA 6Gb/s ports

For Ryzen™ 9000 & 7000 Series:

M.2_1: PCIe 5.0 x4 (2280)

For Ryzen™ 8000 Series:

M.2_1: PCIe 4.0 x4 (2280)

Chipset-based M.2 Slots:

M.2_2: PCIe 4.0 x4 (2242/2260/2280)

M.2_3: PCIe 4.0 x4 (2280)

M.2_4: PCIe 3.0 x2 (2280) – Shares bandwidth with SATA6G_1/2

RAID Support:

Ryzen™ 9000 Series: RAID 0/1/5/10

Ryzen™ 8000 Series: RAID 0/1

Ryzen™ 7000 Series: RAID 0/1/10

Networking:

1 x Realtek 2.5Gb Ethernet with ASUS LANGuard

Wi-Fi 7 (2x2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps)

Bluetooth® v5.4

USB Ports:

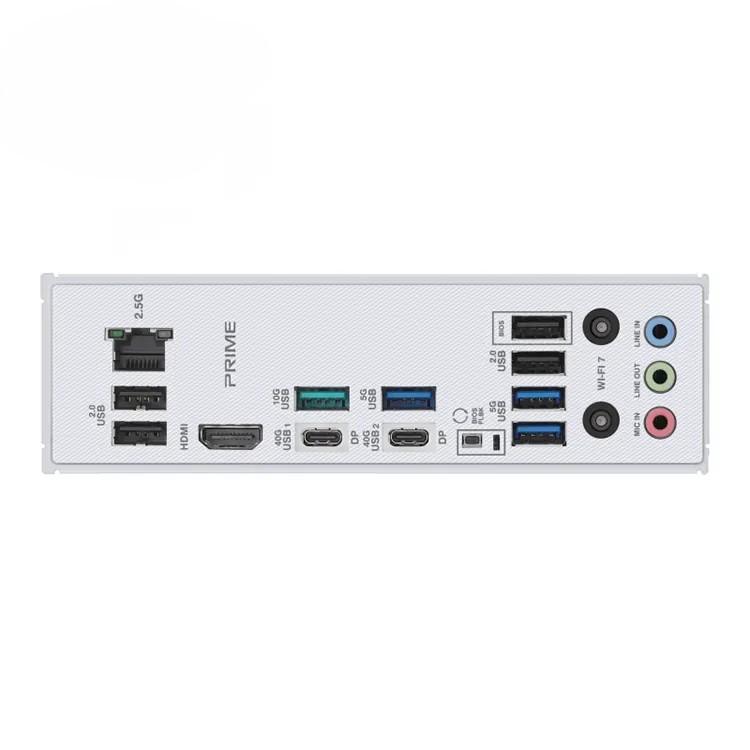

Rear I/O (10 ports):

2 x USB4® (40Gbps) Type-C®

1 x USB 10Gbps Type-A

3 x USB 5Gbps Type-A

4 x USB 2.0 Type-A

Front Panel (7 ports):

1 x USB 10Gbps Type-C®

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 4 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports 24-bit/192 kHz playback

Audio shielding, premium capacitors, and dedicated PCB layers

Internal I/O Connectors:

Cooling:

1 x 4-pin CPU fan header

1 x 4-pin CPU OPT fan header

1 x 4-pin AIO pump header

4 x 4-pin chassis fan headers

Power:

1 x 24-pin main power connector

2 x 8-pin +12V CPU power connectors

Storage:

4 x M.2 slots

2 x SATA 6Gb/s ports

Miscellaneous:

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x COM port header

1 x Front panel audio header

1 x S/PDIF out header

1 x SPI TPM header

1 x 10-1 pin system panel header

Special Features:

ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O

ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot

ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design

ASUS EZ DIY: BIOS FlashBack™, Pre-mounted I/O shield, SafeSlot

Aura Sync: Addressable Gen 2 headers

Software:

Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving)

ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z

Norton 360 Deluxe (60 Days Trial), WinRAR (40 Days Trial)

BIOS:

256Mb Flash ROM, UEFI AMI BIOS

ASUS EZ DIY features (CrashFree BIOS 3, EZ Flash 3, MyHotkey)

Operating System:

Windows 11

Form Factor:

ATX (12" x 9.6" / 30.5 cm x 24.4 cm)
