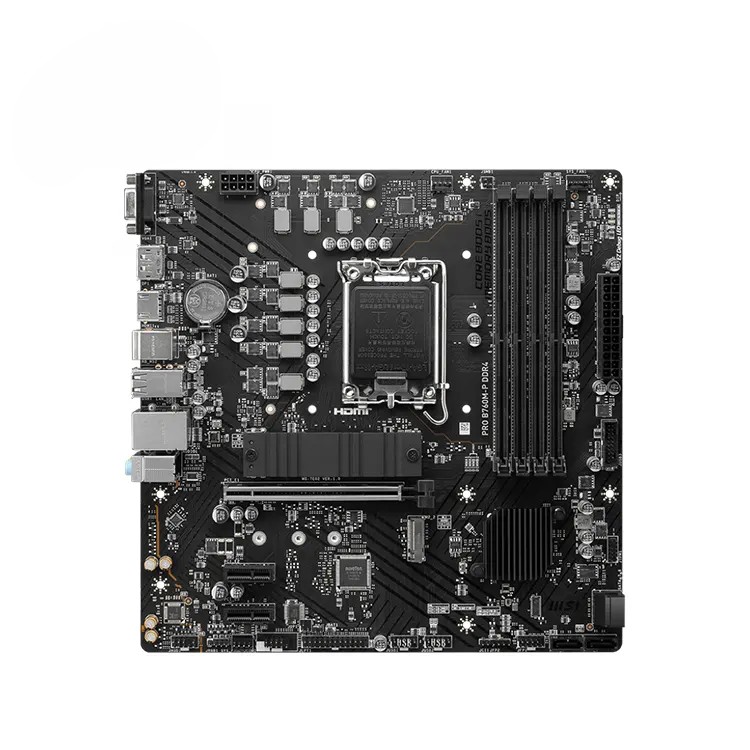

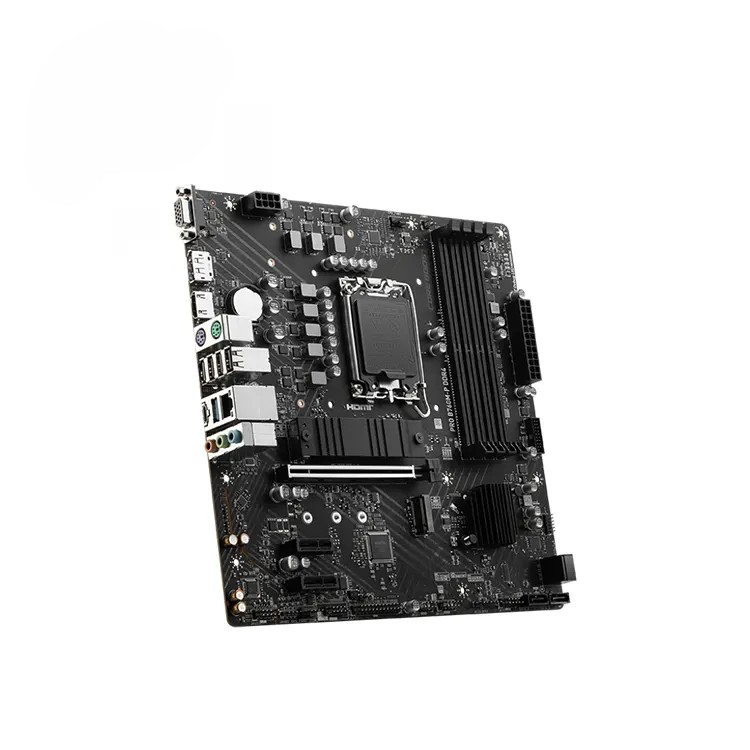

General Specifications

Chipset: Intel B760

Socket: LGA 1700

Supported CPUs:

Intel® Core™ 14th/13th/12th Gen Processors

Intel® Pentium® Gold and Celeron® Processors

Memory

Memory Slots: 4x DDR4

Maximum Memory Capacity: 128GB

Memory Support:

Overclocking frequencies:

1DPC 1R: Up to 4800+ MHz

1DPC 2R: Up to 4600+ MHz

2DPC 1R: Up to 4400+ MHz

2DPC 2R: Up to 4000+ MHz

Supports:

DDR4 speeds: 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC)

Dual-Channel mode

Non-ECC, un-buffered memory

Intel® Extreme Memory Profile (XMP)

Onboard Graphics

Video Outputs:

1x HDMI™ (supports HDMI™ 1.4, max resolution 4K @ 30Hz)

1x DisplayPort (supports DP 1.4, max resolution 4K @ 60Hz)

1x VGA (supports max resolutions of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz)

Note: Graphics support depends on the CPU with integrated graphics.

Expansion Slots

PCI Slots:

1x PCI-E x16 slot (Gen 4.0, supports x16 from CPU)

2x PCI-E x1 slots (Gen 4.0 from chipset)

Audio

Audio Codec: Realtek® ALC897

Audio Channels: 7.1-Channel High Definition Audio

Storage

M.2 Slots:

2x M.2 slots:

M.2_1 (from CPU): Supports PCIe 4.0 x4, compatible with 2280/2260/2242 devices.

M.2_2 (from chipset): Supports PCIe 4.0 x4 / SATA mode, compatible with 2280/2260/2242 devices.

SATA Ports: 4x SATA 6G (SATA5 is unavailable when installing M.2 SATA SSD in M2_2 slot)

RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

USB Ports

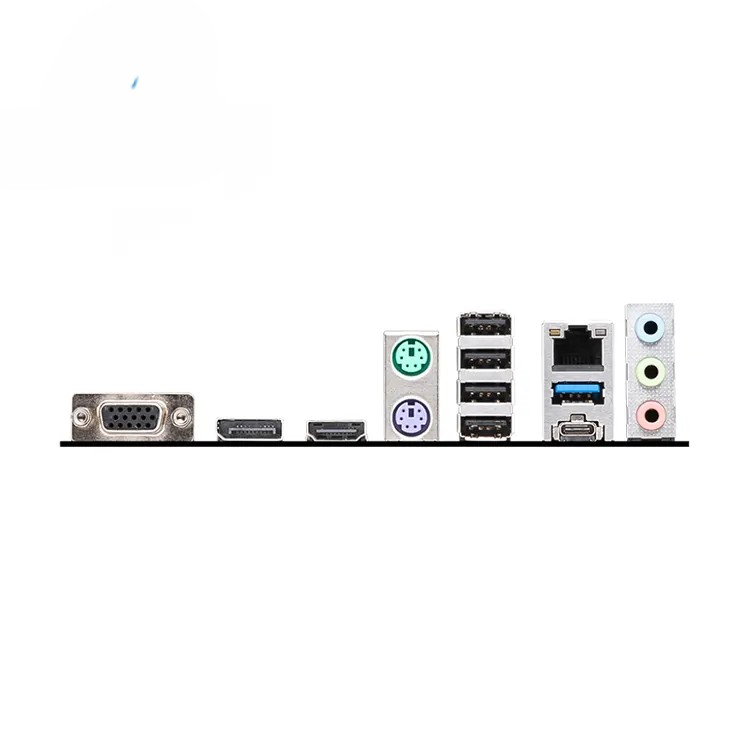

Rear:

4x USB 2.0

1x USB 5Gbps Type A

1x USB 10Gbps Type C

Front:

4x USB 2.0

2x USB 5Gbps Type A

Networking

LAN: Realtek® RTL8111H Gigabit LAN

Internal I/O

Connectors:

1x Power Connector (ATX_PWR)

1x Power Connector (CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x COM Port (JCOM)

1x RGB LED connector (JRGB)

1x TPM pin header (supports TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED Features

Debugging: 4x EZ Debug LED
