CPU Support:

AMD Socket AM5

Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset:

AMD B840 Chipset

Memory:

4 x DIMM slots, max. 256GB, DDR5

Supports up to 7600+MT/s (OC)

Dual-channel memory architecture

Supports ECC and Non-ECC, Un-buffered DIMM

Supports AMD EXPO™ and ASUS AEMP

Graphics:

2 x DisplayPort (Supports up to 8K@30Hz)

1 x HDMI™ (Supports up to 4K@60Hz)

Expansion Slots:

1 x PCIe 4.0 x16 slot (varies by CPU)

2 x PCIe 3.0 x16 slots (support x1 mode)

Storage:

3 x M.2 slots

M.2_1: PCIe 4.0 x4 (2280)

M.2_2: PCIe 4.0 x4/x2 (2242/2260/2280, varies by CPU)

M.2_3: PCIe 3.0 x4 (2280)

4 x SATA 6Gb/s ports

Supports RAID 0/1/5/10 (varies by CPU)

Networking:

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E (2x2)

Bluetooth® v5.3

USB Ports:

Rear I/O (7 ports):

2 x USB 10Gbps (Type-A)

1 x USB 5Gbps (Type-C)

4 x USB 2.0 (Type-A)

Front Panel (7 ports):

1 x USB 5Gbps (Type-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (support 4 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports Jack-detection, Multi-streaming, and Front Panel Jack-retasking

Supports up to 24-bit/192 kHz playback

Features: Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers

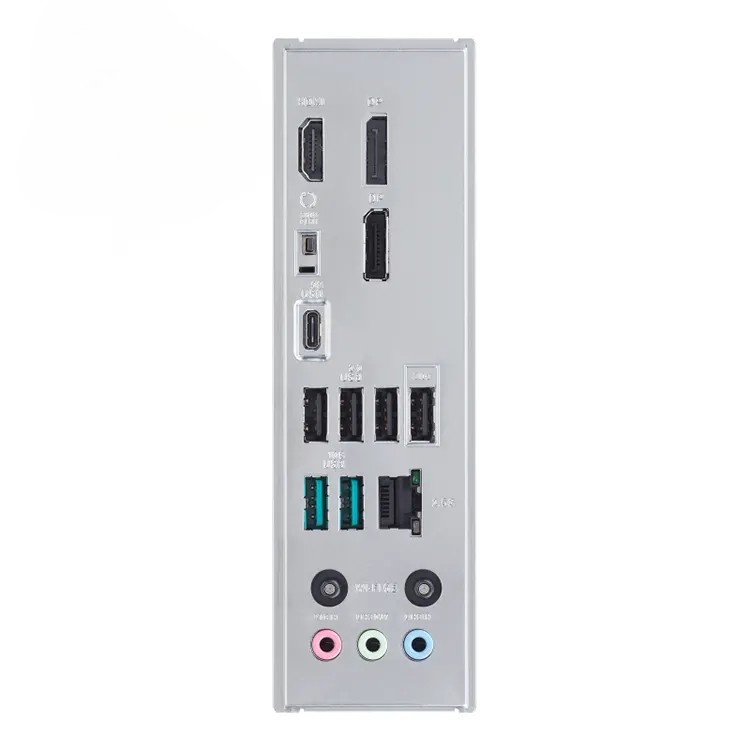

Back Panel I/O Ports:

2 x USB 10Gbps (Type-A)

1 x USB 5Gbps (Type-C)

4 x USB 2.0 (Type-A)

2 x DisplayPort

1 x HDMI™

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

Internal Connectors:

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x USB 5Gbps (Type-C) connector

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (support 4 ports)

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin Front Panel System header

Cooling & Power:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Special Features:

ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O)

ASUS Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot)

ASUS Thermal Solution (M.2 heatsink, VRM heatsink)

ASUS EZ DIY (BIOS FlashBack™ button, Pre-mounted I/O shield)

Aura Sync (Addressable Gen 2 headers)

Software Features:

Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving)

ASUS DriverHub

ASUS GlideX

TurboV Core

ASUS CPU-Z

Adobe Creative Cloud (Free Trial)

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

BIOS:

256Mb Flash ROM, UEFI AMI BIOS

ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, MyHotkey)

Manageability:

WOL by PME, PXE

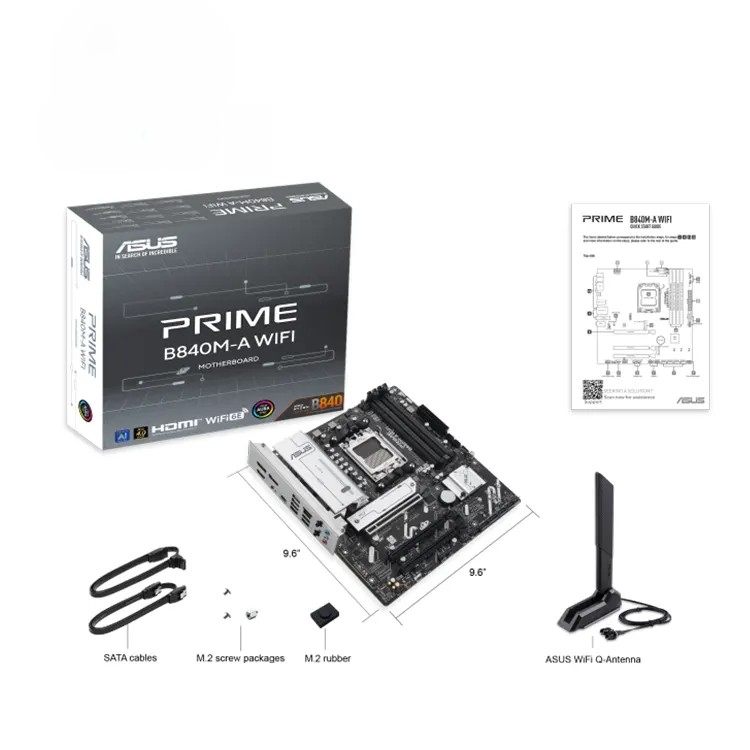

Accessories:

2 x SATA 6Gb/s cables

1 x ASUS WiFi Q-Antenna

1 x M.2 rubber package

2 x M.2 screw packages

1 x Quick start guide

Operating System Support:

Windows 11, Windows 10 64-bit

Form Factor:

• Micro-ATX (24.4 cm x 24.4 cm)
