ASUS TUF GAMING B850M-PLUS Specifications

Model:

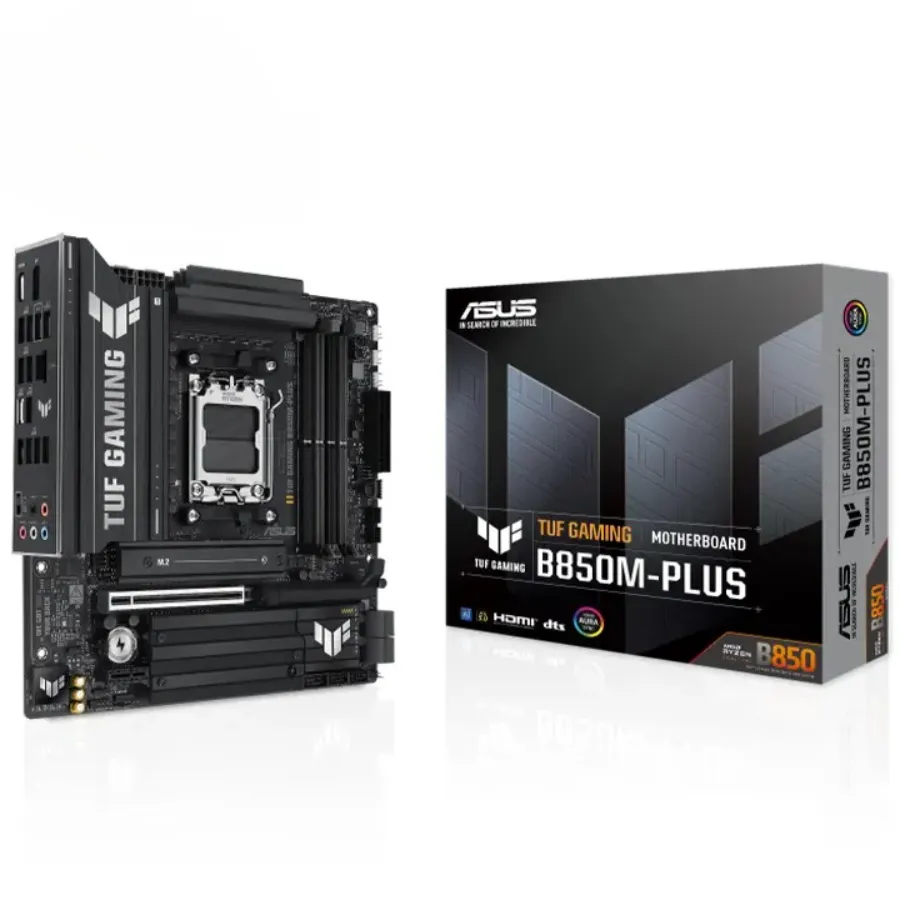

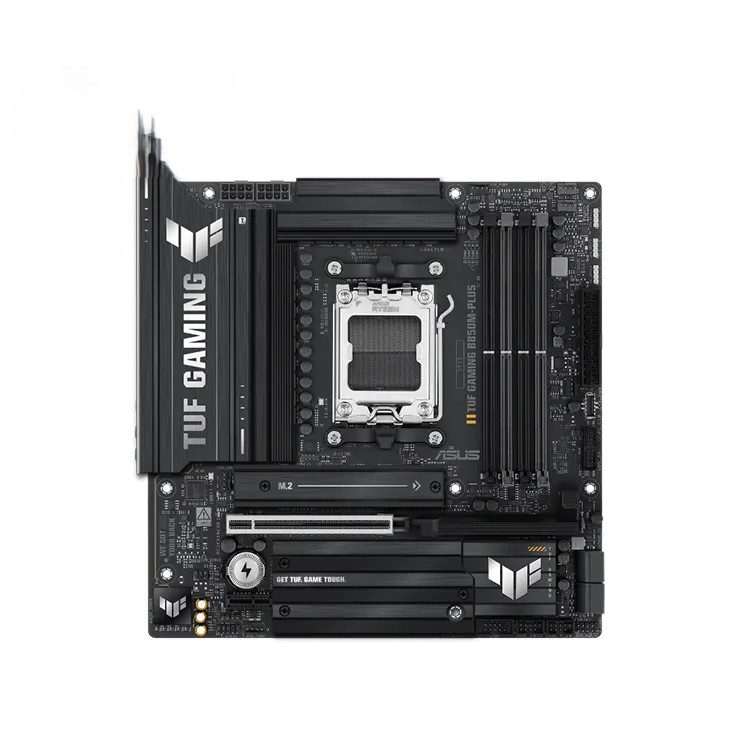

TUF GAMING B850M-PLUS

CPU Support:

AMD Socket AM5 for Ryzen 9000, 8000, and 7000 Series Desktop Processors

Chipset:

AMD B850

Memory:

4 x DIMM slots, up to 256GB DDR5

Supports up to 8000+ MT/s (OC) with Ryzen 9000, 8000, and 7000 Series

Dual-channel architecture

Supports AMD EXPO and ASUS AEMP

On-Die ECC support for non-ECC, unbuffered DDR5

Graphics:

1 x DisplayPort (up to 8K@30Hz, DisplayPort 1.4)

1 x HDMI (up to 4K@60Hz, HDMI 2.1)

Graphics output depends on the installed CPU

Expansion Slots:

Ryzen 9000 & 7000 Series: 1 x PCIe 5.0 x16

Ryzen 8000 Series: 1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD B850 Chipset: 1 x PCIe 4.0 x1

Storage:

3 x M.2 slots, 4 x SATA 6Gb/s ports

Ryzen 9000 & 7000 Series:

M.2_1: PCIe 5.0 x4 (2280)

M.2_2: PCIe 4.0 x4 (2242/2260/2280)

Ryzen 8000 Series:

M.2_1: PCIe 4.0 x4 (2280)

M.2_2: PCIe 4.0 x4/x2 (2242/2260/2280)

AMD B850 Chipset:

M.2_3: PCIe 4.0 x4 (2280)

RAID support:

Ryzen 9000: RAID 0/1/5/10

Ryzen 8000: RAID 0/1

Ryzen 7000: RAID 0/1/10

Ethernet:

Realtek 2.5Gb Ethernet

TUF LANGuard

USB Ports:

Rear I/O (12 ports):

1 x USB 20Gbps (Type-C)

3 x USB 10Gbps (Type-A)

4 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

Front Panel (7 ports):

1 x USB 10Gbps (Type-C)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 4 ports)

Audio:

Realtek ALC1220P 7.1 HD Audio

High-quality 120 dB SNR stereo playback and 113 dB SNR recording

Internal amplifier, jack-detection, multi-streaming, and front panel jack retasking

Supports up to 32-bit/192 kHz playback

Audio Features:

Audio shielding, premium capacitors, dedicated PCB layers, and de-pop circuit

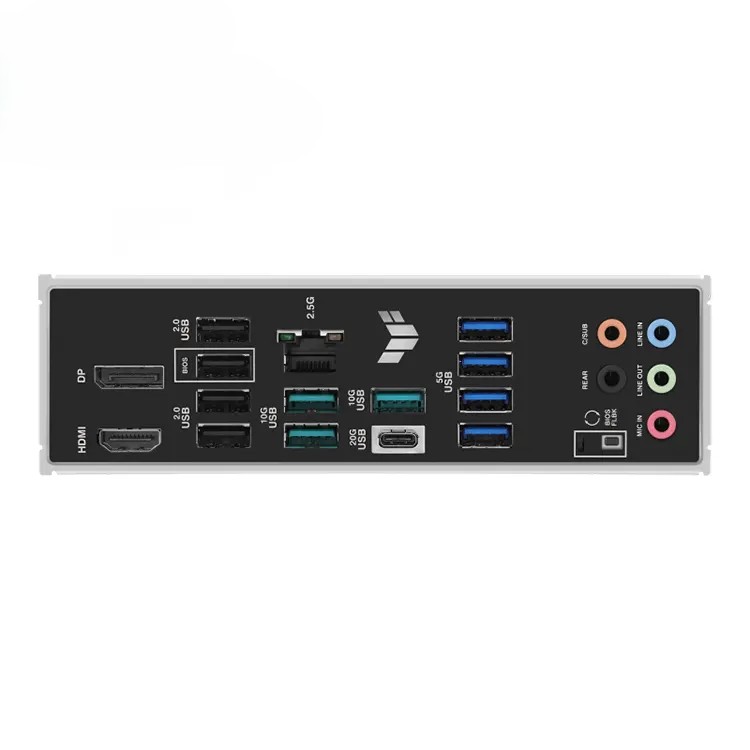

Back Panel I/O:

1 x USB 20Gbps (Type-C)

3 x USB 10Gbps (Type-A)

4 x USB 5Gbps (Type-A)

4 x USB 2.0 (Type-A)

1 x DisplayPort

1 x HDMI

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack button

Internal Connectors:

Cooling:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power:

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage:

3 x M.2 slots

4 x SATA 6Gb/s ports

Miscellaneous:

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header

1 x 10-1 pin Front Panel System header

Special Features:

TUF Protection:

DIGI+ VRM

ESD Guards

TUF LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design:

M.2 Q-Latch

PCIe Slot Q-Release

Q-Dashboard

Q-DIMM

Q-LED indicators

ASUS Thermal Solutions:

M.2 heatsink

VRM heatsink design

ASUS EZ DIY:

BIOS FlashBack button

Pre-mounted I/O shield

SafeDIMM

Aura Sync:

Addressable Gen2 headers

Software Features:

Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving)

ASUS DriverHub, TurboV Core, TUF GAMING CPU-Z

DTS Audio Processing

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS:

ASUS EZ DIY tools

256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

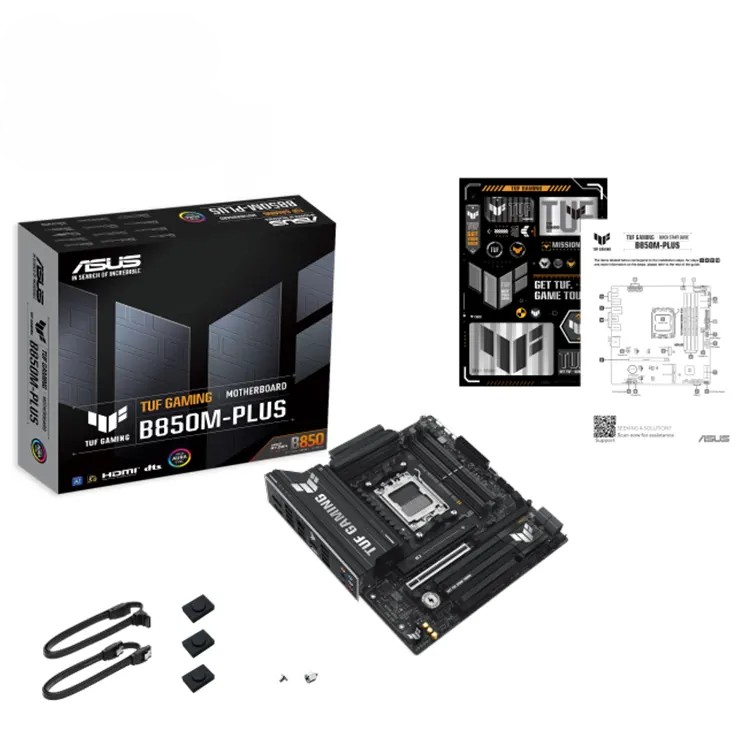

Accessories:

2 x SATA 6Gb/s cables

1 x TUF GAMING sticker

2 x M.2 rubber packages

1 x M.2 screw package

1 x Quick start guide

Operating System Support:

Windows 11, Windows 10 64-bit
