CPU & Chipset

Socket: LGA1700

Supports: 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.

Chipset: Intel® H610

Turbo Boost: Supports Intel® Turbo Boost 2.0 and 3.0 technologies (depending on CPU).

Memory

2 x DIMM slots: Supports up to 64GB DDR4 (non-ECC, un-buffered).

Speeds up to 3200 MHz (XMP supported).

Graphics & Display Outputs

DisplayPort 1.4: Up to 4K @ 60Hz.

HDMI 2.1: Up to 4K @ 60Hz.

D-Sub port for legacy displays.

Expansion Slots

1 x PCIe 4.0 x16 for GPUs (supports new-gen cards).

1 x PCIe 3.0 x1 slot for smaller add-ons.

Storage

2 x M.2 slots:

M.2_1: PCIe 3.0 x4

M.2_2: PCIe 3.0 x2

4 x SATA 6Gbps ports for SSDs and HDDs.

Networking & Wireless

Intel® 1 Gb Ethernet

Wi-Fi 5 (802.11 a/b/g/n/ac) supporting 2.4/5GHz bands

Bluetooth 5.0

USB Ports

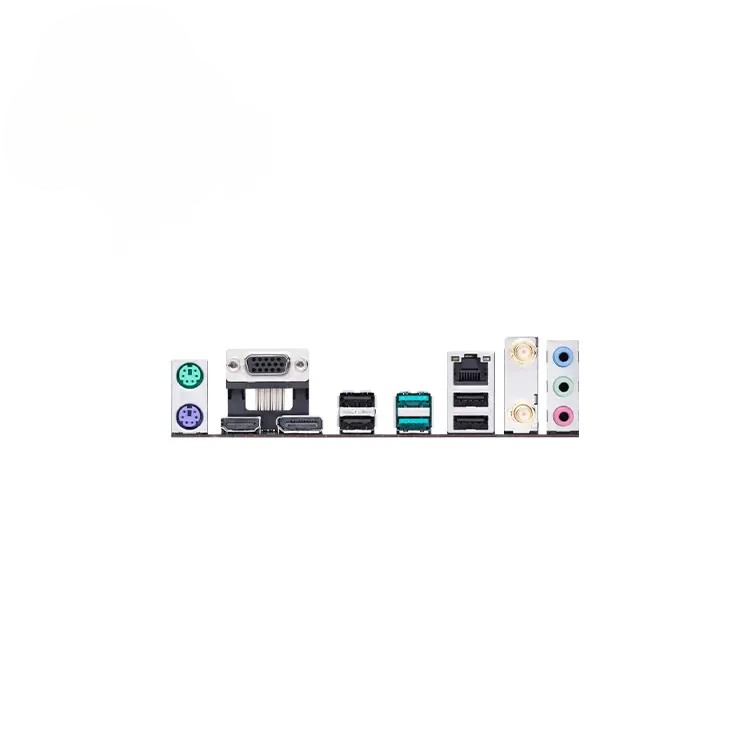

Rear I/O:

2 x USB 3.2 Gen 2 Type-A

4 x USB 2.0 Type-A

Front:

1 x USB 3.2 Gen 1 header (for 2 more USB 3.2 Gen 1 ports)

2 x USB 2.0 headers (for 3 additional USB 2.0 ports)

Audio

Realtek 7.1 Surround Sound with high-definition audio codec.

Supports 24-bit/192 kHz playback with premium audio shielding.

RGB & Customization

3 Addressable Gen 2 headers

2 AURA RGB headers

Supports AURA Sync for lighting customization.

Cooling & Power

1 x 4-pin CPU fan header

2 x 4-pin chassis fan headers

8-pin +12V power connector and 24-pin main power connector.

BIOS & Special Features

128 Mb UEFI BIOS with ASUS EZ Flash 3 and CrashFree BIOS 3.

ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, etc.)

Pre-installed software includes Armoury Crate, AI Suite 3, and MyASUS.

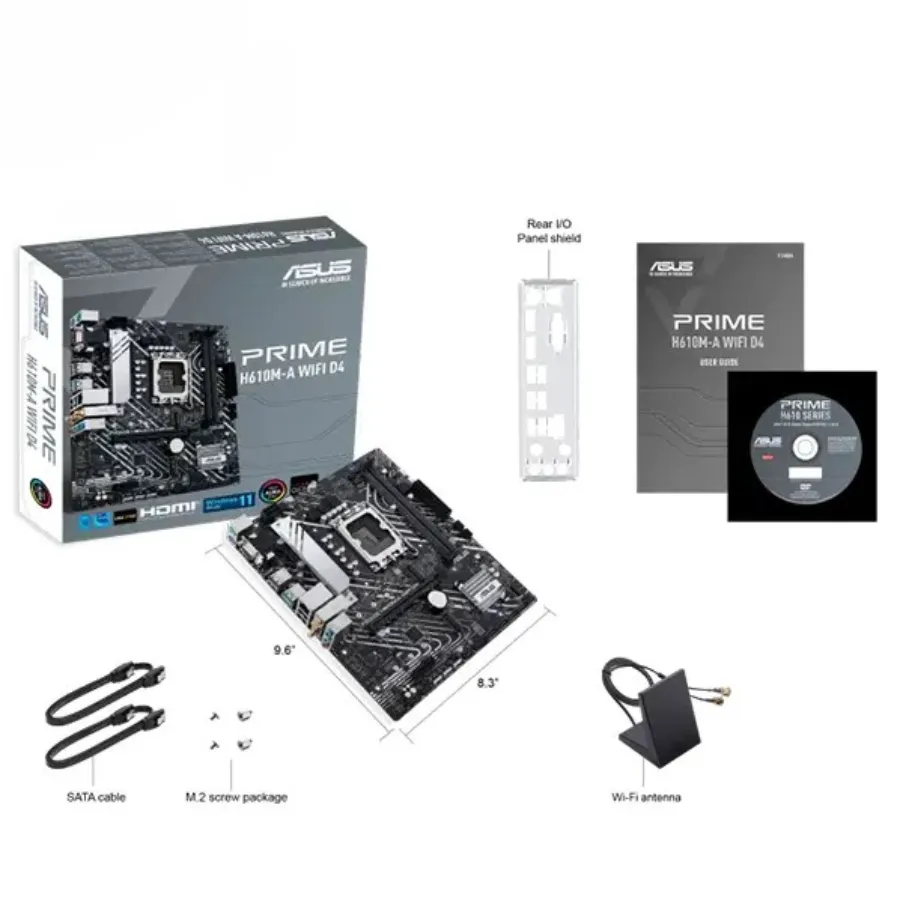

Accessories & Compatibility

Includes:

2 SATA cables, Wi-Fi antenna, M.2 screws, and I/O shield.

Operating System: Compatible with Windows® 11 and Windows® 10 (64-bit).

Form Factor

mATX (9.6" x 8.3" / 24.4 cm x 21.1 cm).
