CPU Support:

Intel® LGA1851 socket for Intel® Core™ Ultra Processors (Series 2)

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset:

Intel® B860 Chipset

Memory:

4 x DIMM slots, up to 256GB DDR5

Supports up to 9066MT/s (OC), Non-ECC, Unbuffered

Dual-channel memory architecture

Intel® XMP support

ASUS Enhanced Memory Profile III (AEMP III)

Graphics:

1 x DisplayPort (Supports up to 8K@60Hz with DSC)

1 x HDMI™ 2.1 port (Supports up to 8K@60Hz with DSC)

1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supporting DisplayPort and Thunderbolt™ video output

Expansion Slots:

1 x PCIe 5.0 x16 slot (CPU)

1 x PCIe 4.0 x16 slot (Chipset, supports x4 mode)

Storage:

4 x M.2 slots

1 x PCIe 5.0 x4 (CPU)

3 x PCIe 4.0 x4 (Chipset)

4 x SATA 6Gb/s ports

Networking:

Intel® 2.5Gb Ethernet with ASUS LANGuard

Wi-Fi 7 (802.11be) with 2x2 antenna

Bluetooth® v5.4

USB Ports:

Rear (9 ports):

1 x Thunderbolt™ 4 (USB Type-C®)

1 x USB 20Gbps (USB Type-C®)

1 x USB 10Gbps (Type-A)

6 x USB 5Gbps (Type-A)

Front (6 ports):

1 x USB 10Gbps (USB Type-C®)

1 x USB 5Gbps header (supports 2 ports)

2 x USB 2.0 headers (supports 3 ports)

Audio:

ROG SupremeFX 7.1 Surround Sound (ALC4080)

Supports up to 32-bit/384 kHz playback

Savitech SV3H712 AMP

Optical S/PDIF out

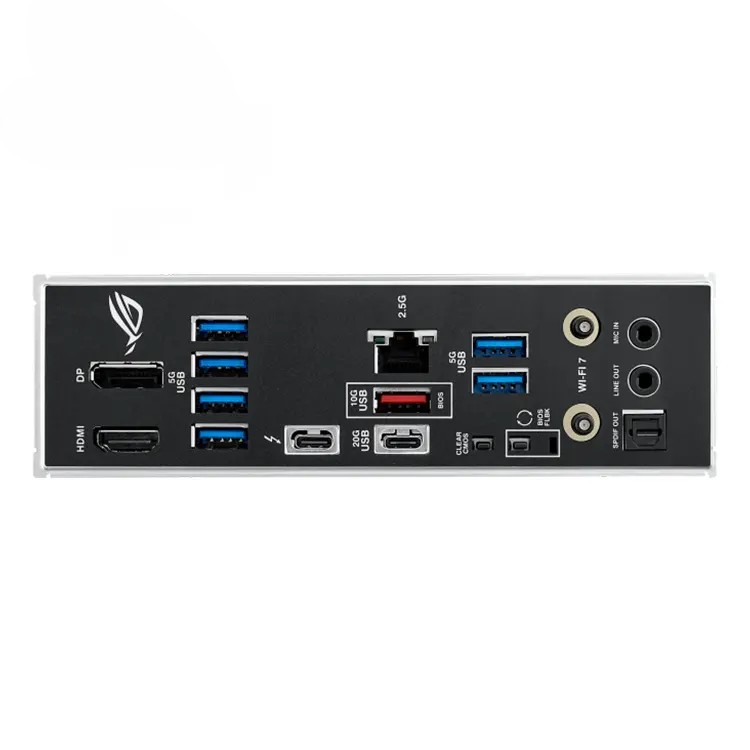

Back Panel I/O:

1 x Thunderbolt™ 4 (USB Type-C®)

1 x USB 20Gbps (USB Type-C®)

1 x USB 10Gbps (Type-A)

6 x USB 5Gbps (Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

2 x Audio jacks

1 x Optical S/PDIF out

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Cooling & Power:

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Special Features:

PCIe Slot Q-Release Slim with SafeSlot

M.2 Q-Latch, Q-Release, and Q-Slide

Q-LED diagnostic indicators

BIOS FlashBack™ button

Pre-mounted I/O shield

Aura Sync with Addressable Gen2 headers

Software & Utilities:

Armoury Crate with Aura Creator & Sync

Fan Xpert 4

Dolby Atmos

GameFirst

AIDA64 Extreme (60-day trial)

Norton 360 for Gamers (60-day trial)

WinRAR (40-day trial)

BIOS & Management:

256Mb Flash ROM, UEFI AMI BIOS

Supports ASUS EZ Flash, CrashFree BIOS 3, and MyHotkey

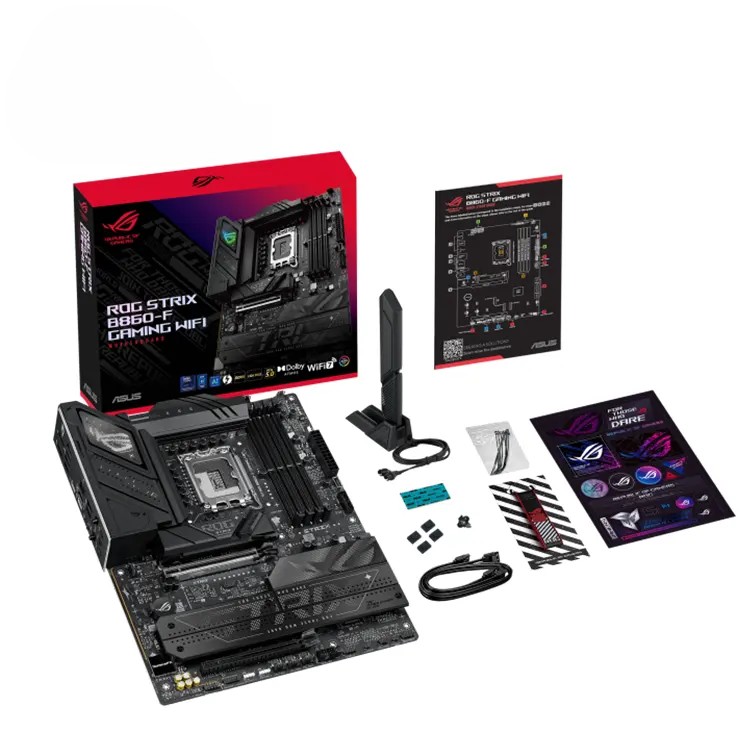

Accessories Included:

2 x SATA 6Gb/s cables

1 x ASUS Wi-Fi Q-Antenna

1 x M.2 Q-Latch package

1 x M.2 Q-Slide package

1 x ROG keychain

1 x ROG Strix stickers

Operating System Support:

Windows® 11 (22H2 & later)

Form Factor:

ATX (30.5 cm x 24.4 cm)
