Model

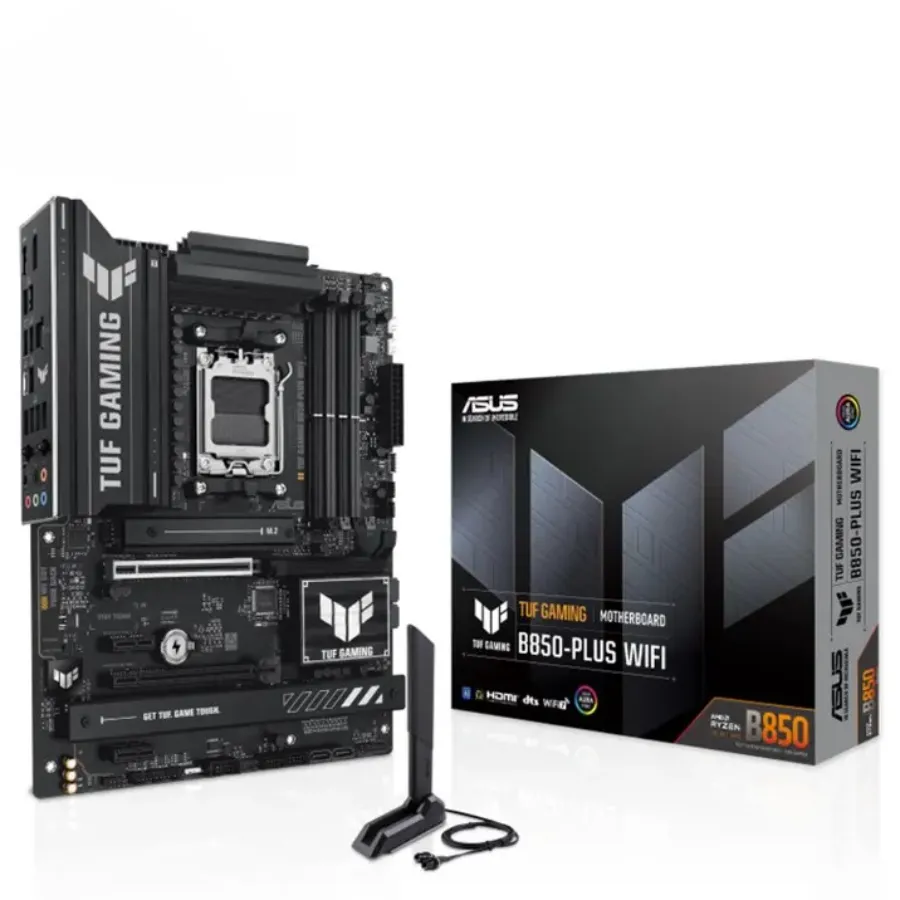

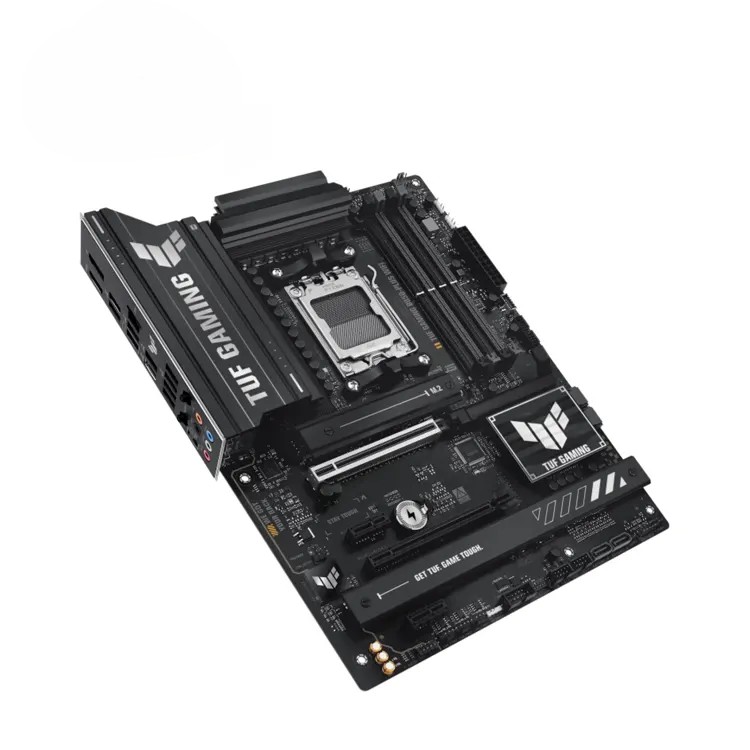

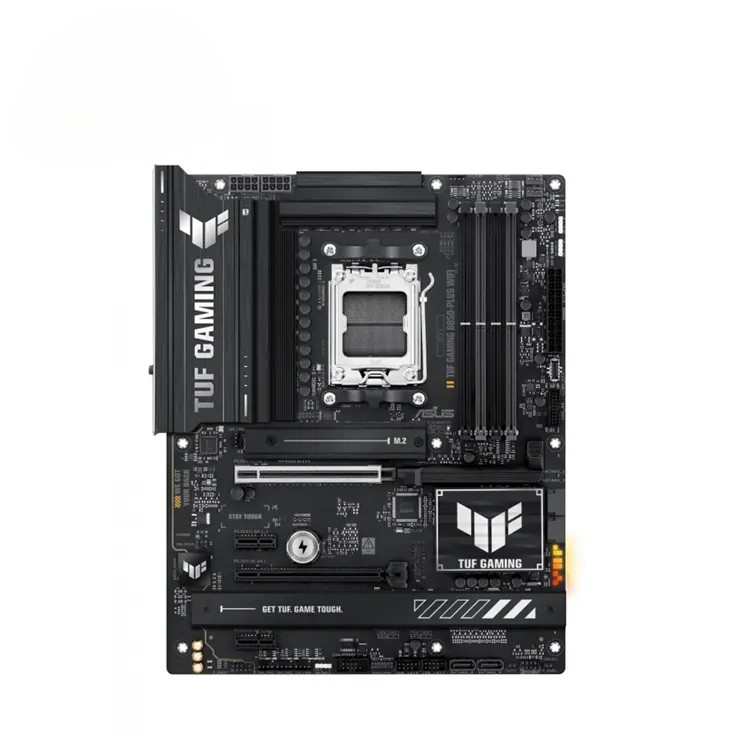

TUF GAMING B850-PLUS WIFI

CPU

AMD Socket AM5

Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset

AMD B850

Memory

4 x DIMM slots, up to 256GB DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series Processors

ECC and Non-ECC Unbuffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x DisplayPort (Supports up to 8K@30Hz, DisplayPort 1.4)

1 x HDMI (Supports 4K@60Hz, HDMI 2.1)

Graphics specifications vary depending on the CPU

Expansion Slots

Ryzen™ 9000 & 7000 Series Processors

1 x PCIe 5.0 x16 slot (x16 mode)

Ryzen™ 8000 Series Processors

1 x PCIe 4.0 x16 slot (x8/x4 mode)

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (x4 mode)

2 x PCIe 4.0 x1 slots

Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Ryzen™ 9000 & 7000 Series Processors

M.2_1: PCIe 5.0 x4 (2280)

M.2_2: PCIe 4.0 x4 (2242/2260/2280/22110)

Ryzen™ 8000 Series Processors

M.2_1: PCIe 4.0 x4 (2280)

M.2_2: PCIe 4.0 x4/x2 (2242/2260/2280/22110)

AMD B850 Chipset

M.2_3: PCIe 4.0 x4 (2280)

4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology

RAID 0/1/5/10 (Ryzen™ 9000)

RAID 0/1 (Ryzen™ 8000)

RAID 0/1/10 (Ryzen™ 7000)

Networking

Ethernet: Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 7 (802.11be), 2x2

Supports 2.4/5/6GHz frequency bands

Bluetooth® v5.4

USB Ports

Rear I/O (Total 10 ports)

1 x USB 20Gbps (USB Type-C)

3 x USB 10Gbps (Type-A)

4 x USB 5Gbps (Type-A)

2 x USB 2.0 (Type-A)

Front I/O (Total 7 ports)

1 x USB 10Gbps (Type-C)

1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

120 dB SNR stereo playback, 113 dB SNR recording input

Supports up to 32-Bit/192 kHz playback

Audio shielding, premium capacitors, dedicated PCB layers

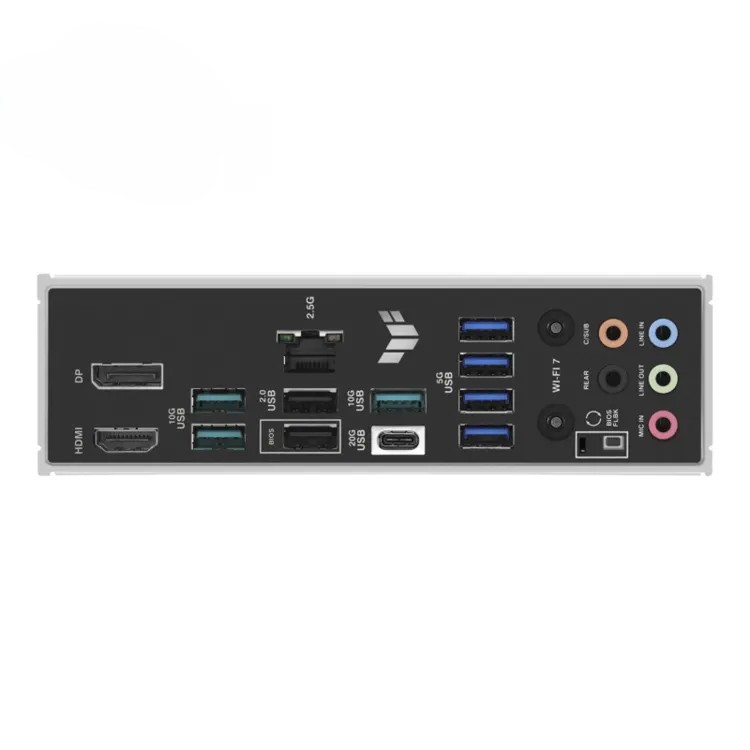

Back Panel I/O Ports

1 x USB 20Gbps (USB Type-C)

3 x USB 10Gbps (Type-A)

4 x USB 5Gbps (Type-A)

2 x USB 2.0 (Type-A)

1 x DisplayPort

1 x HDMI

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Internal I/O Connectors

Cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps (Type-C)

1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Miscellaneous

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header

1 x 10-1 pin Front System Panel header

1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF Protection

DIGI+ VRM with DrMOS

ESD Guards

TUF LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design

M.2 Q-Latch

PCIe Slot Q-Release

Q-Antenna

Q-DIMM, Q-LED, Q-Slot

ASUS Thermal Solution

M.2 heatsink

VRM heatsink

ASUS EZ DIY

BIOS FlashBack™ button

Pre-mounted I/O shield

Software Features

ASUS Exclusive Software

Armoury Crate

Aura Creator & Aura Sync

Fan Xpert 4

TurboV Core

DTS Audio Processing

Norton 360 for Gamers (60-Day Free Trial)

WinRAR (40-Day Free Trial)

UEFI BIOS

ASUS EZ Flash 3

ASUS MyHotkey

ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

2 x SATA 6Gb/s cables

1 x ASUS WiFi Q-Antenna

1 x TUF GAMING sticker

2 x M.2 rubber packages

1 x Quick start guide

Operating System

Windows 11

Form Factor

ATX (30.5 cm x 24.4 cm)
