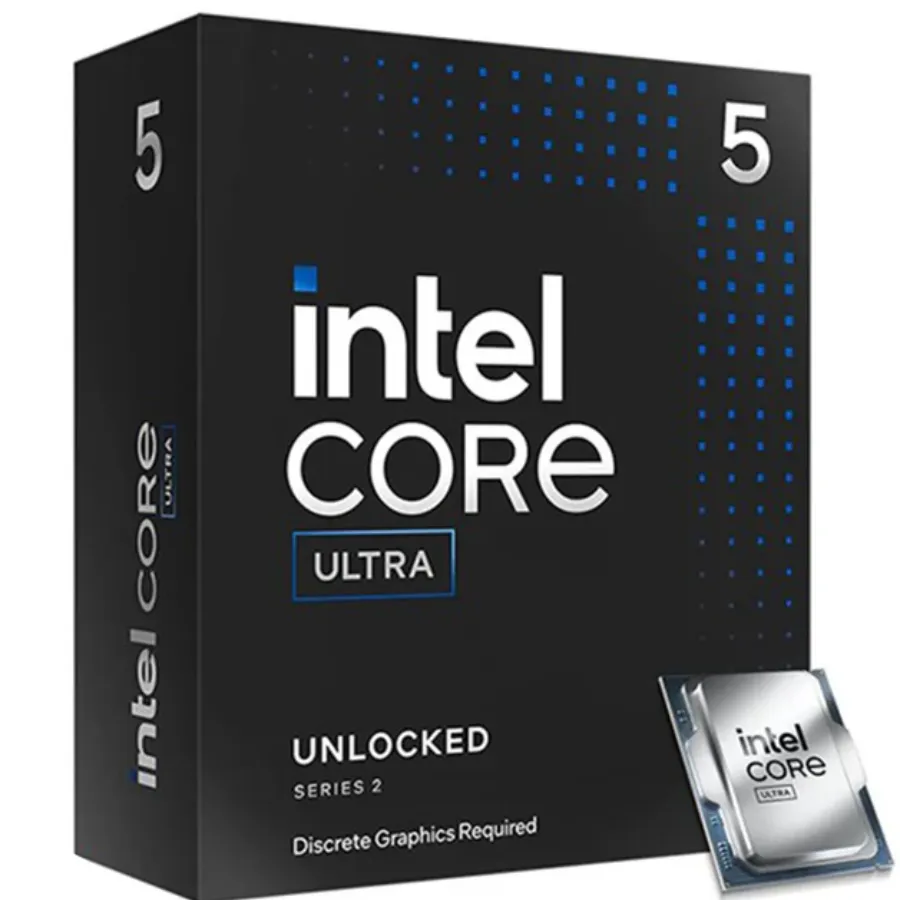

Intel Core Ultra 5 245K – High-Performance Desktop ProcessorCore Specifications:

• Total Cores: 14 (6 Performance + 8 Efficient)
• Total Threads: 14
• Max Turbo Frequency: 5.2 GHz (Performance Cores) | 4.6 GHz (Efficient Cores)
• Base Frequency: 4.2 GHz (Performance Cores) | 3.6 GHz (Efficient Cores)
• Cache: 24MB Intel Smart Cache | 26MB L2 Cache
• Processor Base Power: 125W
• Maximum Turbo Power: 159W
• Manufacturing Process: TSMC N3B

Memory Support:

• Max Memory Capacity: 192GB
• Memory Type: Up to DDR5-6400 MT/s
• Memory Channels: 2
• ECC Support: Yes

Integrated Graphics:

• GPU Model: Intel Graphics
• Graphics Frequency: 300 MHz Base | 1.9 GHz Max Dynamic
• Xe-Cores: 4
• Graphics Output: DP 2.1, HDMI 2.1, eDP 1.4b
• Max Resolution: 8K @ 60Hz (DP, HDMI 2.1 FRL), 4K @ 60Hz (HDMI 2.1 TMDS, eDP)
• Supported APIs: DirectX 12, OpenGL 4.5, OpenCL 3
• Quick Sync Video: Yes

AI & NPU Features:

• Intel AI Boost (NPU): 13 TOPS (Int8)
• CPU AI Performance: 30 TOPS (Int8)
• Supported AI Frameworks: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion & Connectivity:

• PCIe Support: PCIe 5.0 & 4.0
• PCIe Lanes: Up to 24
• PCIe Configurations: Up to 1x16 + 2x4, 2x8 + 2x4, 1x8 + 4x4
• Thunderbolt 4 Support: Yes
• DMI Revision: 4
• DMI Lanes: 8
