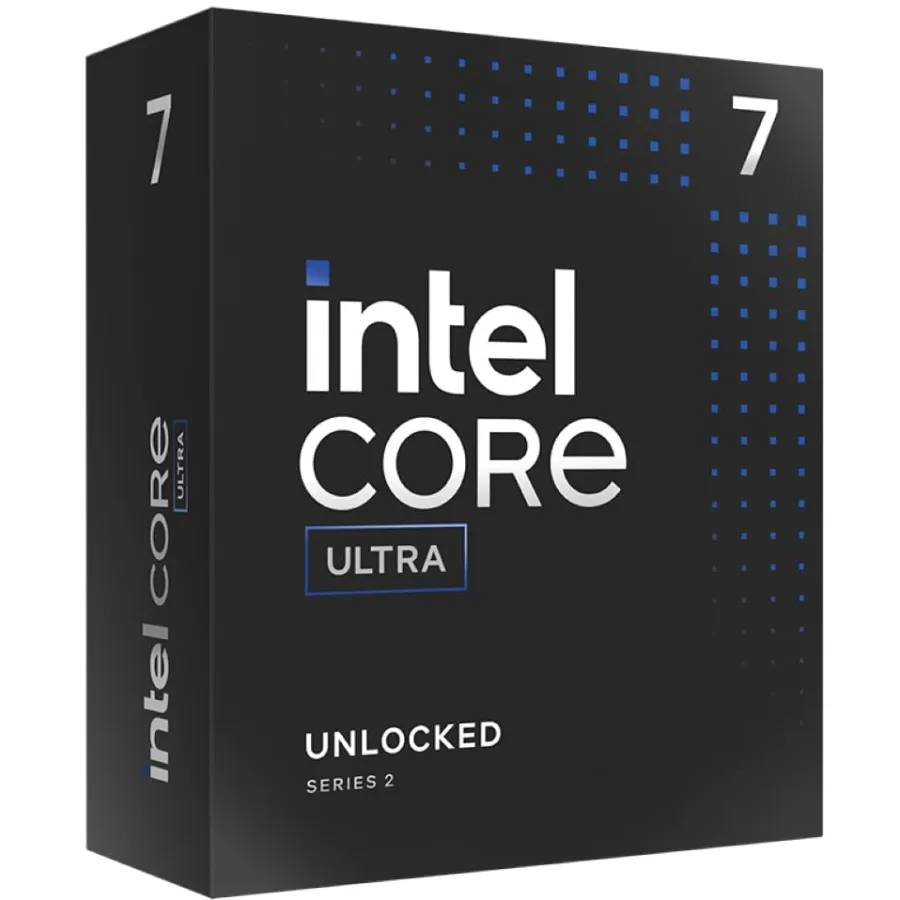

Intel Core Ultra 7 265KF

Core Specifications

• Architecture: Arrow Lake – TSMC N3B Process
• Total Cores: 20 (8 Performance Cores + 12 Efficient Cores)
• Threads: 20
• Frequencies:
• Max Turbo Frequency: 5.5 GHz
• Performance-Core Max Turbo: 5.4 GHz
• Efficient-Core Max Turbo: 4.6 GHz
• Base Frequency:
• Performance Cores: 3.9 GHz
• Efficient Cores: 3.3 GHz
• Cache:
• Intel Smart Cache: 30MB
• Total L2 Cache: 36MB
• TDP:
• Base Power: 125W
• Maximum Turbo Power: 250W

Memory & Expansion

• Max Memory Capacity: 192GB
• Memory Type: DDR5 up to 6400 MT/s
• Memory Channels: 2
• PCIe Support: PCIe 5.0 & 4.0
• PCIe Lanes: Up to 24
• PCIe Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
• Direct Media Interface (DMI): Revision 4 with 8 lanes
• Thunderbolt Support: Yes (Thunderbolt 4)
• Socket: FCLGA1851

AI & Acceleration

• Intel AI Boost (NPU): 13 TOPS (Int8)
• Overall Peak AI Performance: 25 TOPS (Int8)
• Supported AI Frameworks: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• Intel Deep Learning Boost (DL Boost): Yes
• Windows Studio Effects Support: Yes
