Manufacturer

• Manufacturer: XFX
• Model Number: RX-665X8DFDY

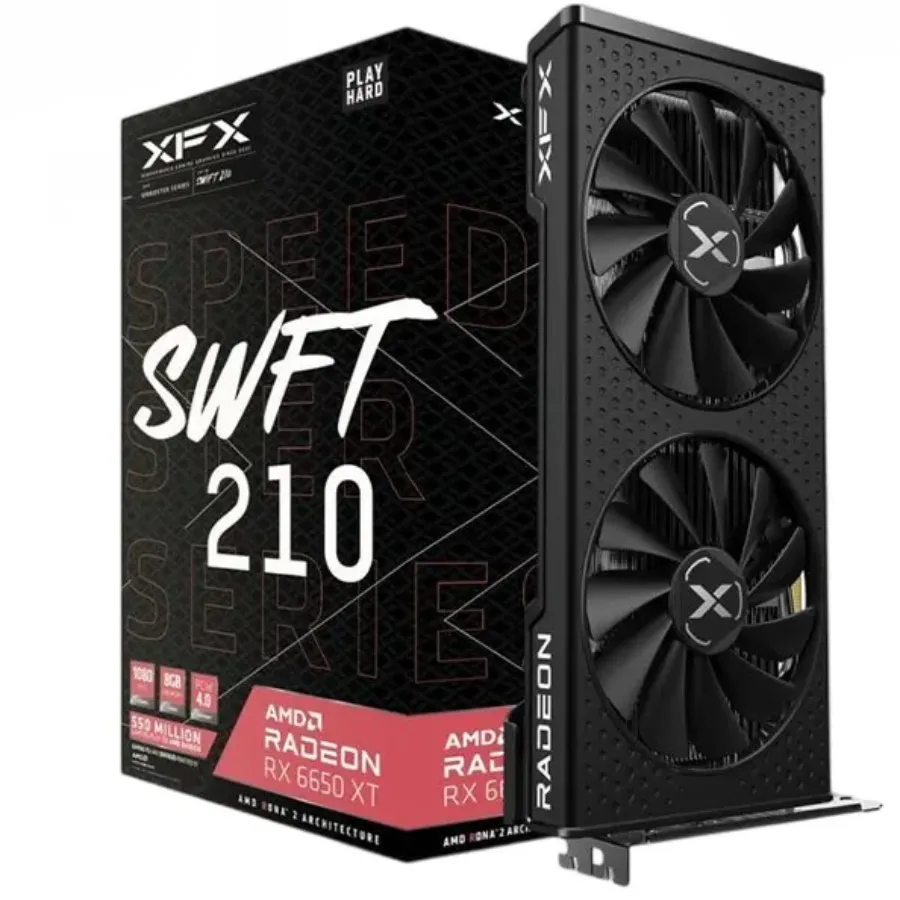

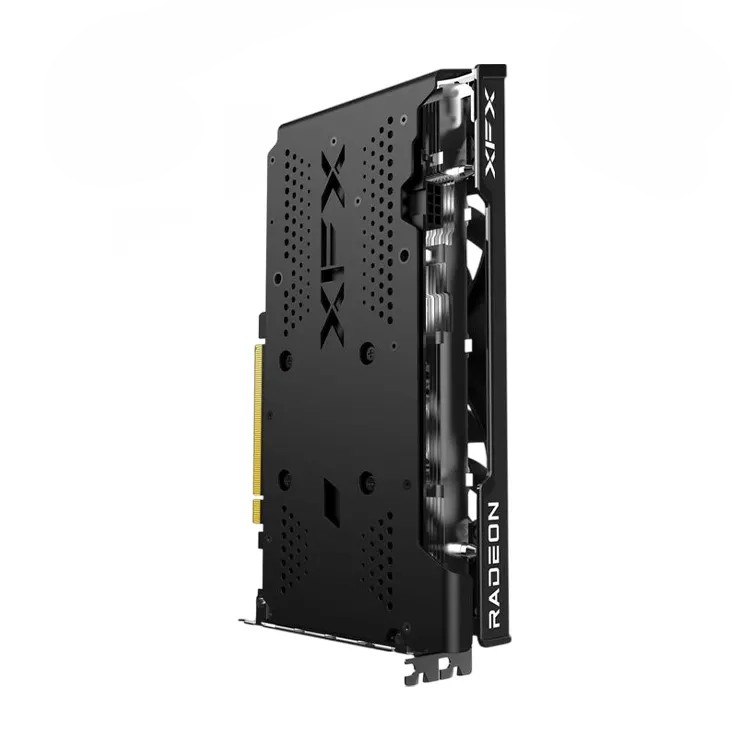

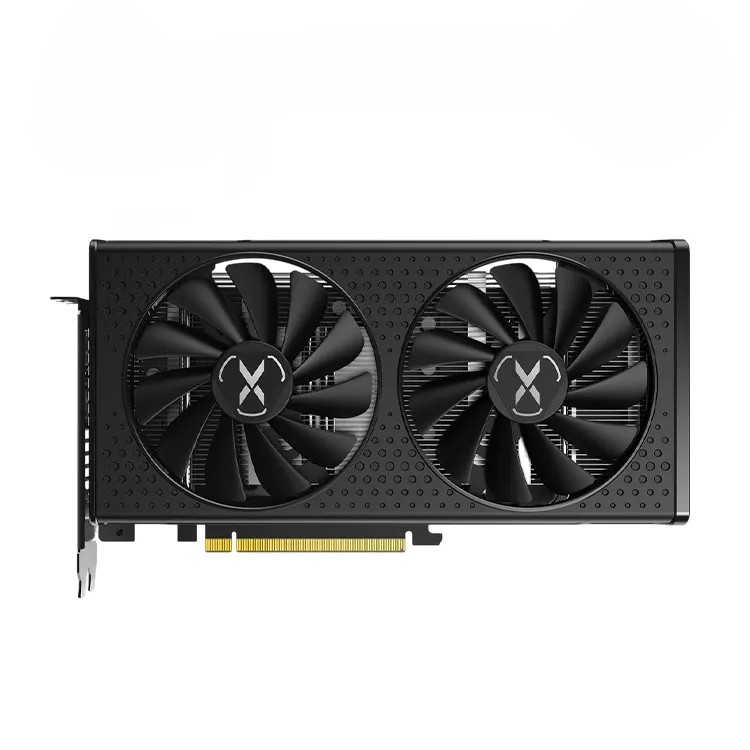

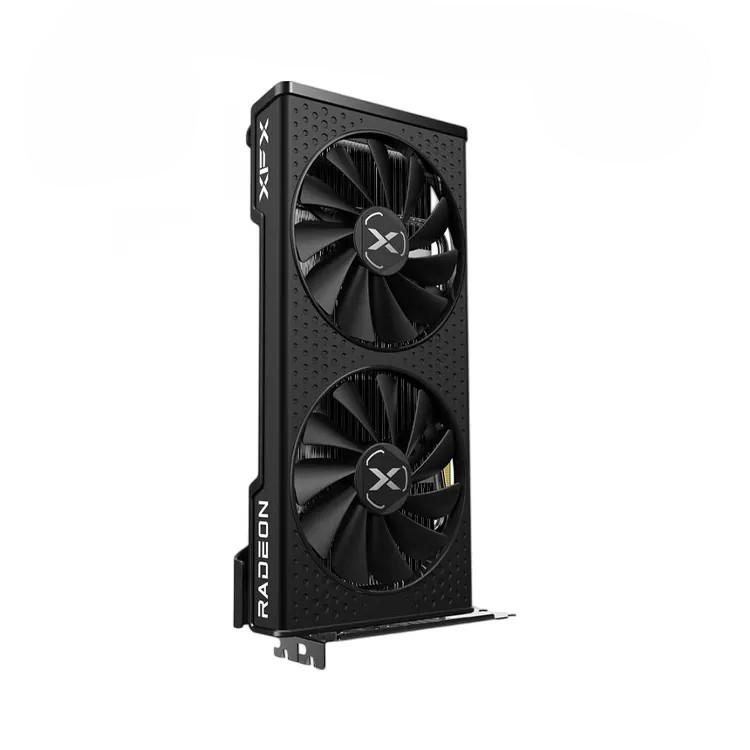

• Product Name: AMD Radeon™ RX 6650 XT
• Product Description: XFX SPEEDSTER SWFT210 RADEON RX 6650 XT CORE Gaming Graphics Card with 8GB GDDR6 HDMI 3xDP, AMD RDNA™ 2
• Short Description: XFX SPEEDSTER SWFT210 RADEON RX 6650 XT CORE Gaming Graphics Card
• Launch Date: May 2022
• UPC Number: 840191500350

Specifications

• Bus Type: PCI-E 4.0 @ 8x
• Clock Speeds:
• Base Clock: Up to 2055 MHz
• Game Clock: Up to 2410 MHz*
• Boost Clock: Up to 2635 MHz**
• Stream Processors: 2048
• Compute Units: 32
• Memory Bus: 128-bit
• Memory Clock: 17.5 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR6
• Card Profile: Dual Slot
• Thermal Solution: Dual Fan

* "Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual results may vary.

** "Boost Clock" is the maximum frequency achievable under burst workloads. The actual frequency may vary based on thermal conditions and application loads.

Outputs

• DisplayPort: 1.4 with DSC (3x DisplayPort)
• HDMI: 2.1 VRR and FRL (1x HDMI)

Power Requirements

• External Power: 1x PCI-E 8-pin
• Minimum Power Supply Requirement: 500W
• XFX Recommended Power Supply: XFX 600W PSU

Certifications

• RoHS Compliant

Package Contents

• Installation Guide: 1

Dimensions & Weight

• Card Dimensions: 24.1 x 13.1 x 4.1 cm (9.49 x 5.16 x 1.61 in)
• Master Carton Dimensions: 47 x 41 x 37.5 cm (18.5 x 16.14 x 14.76 in)
• Master Carton Weight: 12.25 kg (27 lb)
• Package Dimensions: 36.5 x 19.8 x 12 cm (14.37 x 7.80 x 4.72 in)
• Package Weight: 1.07 kg (2.36 lb)
• Units per Carton: 10

Supported Technologies

• AMD RDNA™ 2 Architecture
• DirectX® 12 Ultimate
• Hardware Raytracing
• FidelityFX™
• Radeon™ Anti-Lag
• Microsoft® Windows® 10 Support
• Microsoft® DirectX™ 12 Support
• 7nm Technology
• GDDR6 Memory
• PCI® Express 4.0 Support
• AMD FreeSync™ Technology*
• DisplayPort™ 1.4 with DSC
• HDMI™ 2.1 VRR
• Video Streaming up to 8K
• AMD FidelityFX*
• Radeon™ Image Sharpening*
• Radeon™ Anti-Lag*
• AMD Software: Adrenalin Edition
• Game Driver Optimizations
• OpenGL Support
• OpenCL Support

* Not compatible with Windows 7. For more details on Radeon™ technologies, visit AMD.com/gamingdetails
