• GPU: AMD Radeon™ RX 7800 XT
• Architecture: AMD RDNA™ 3, 5nm
• Engine Clock:
• Boost Clock: Up to 2475 MHz
• Game Clock: Up to 2169 MHz
• Stream Processors: 3840
• Compute Units: 60 CU with Ray and AI Accelerators
• Infinity Cache: 64MB
• Ray Accelerators: 60
• Memory:
• Size: 16GB GDDR6
• Bus: 256-bit
• Memory Clock: 19.5 Gbps effective
• Resolution Support:
• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320
• Maximum Displays: 4
• Interface: PCI-Express 4.0 x16
• Outputs: 2x HDMI, 2x DisplayPort

Cooling and Design:

• Cooling System: Tri-X Cooling Technology with three fans, including intelligent fan control and precision fan control. Features two-ball bearing fans with angular velocity fan blades.
• PCB: High TG Copper PCB with optimized composite heatpipe

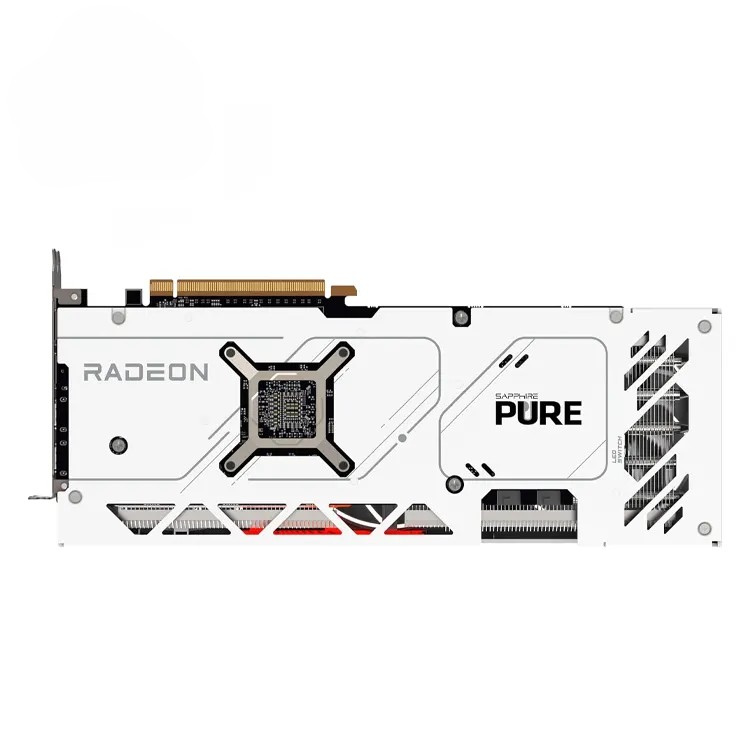

• Metal Backplate: Adds structural support and a premium feel
• Red LED SAPPHIRE Logo

Performance Enhancements:

• TriXX Software: Includes TriXX Boost for better performance optimization
• Fuse Protection: Ensures safety against power surges
• Digital Power Design: Premium design with ultra-high-performance conductive polymer aluminum capacitors

AMD Technologies:

• FidelityFX™ Super Resolution: For enhanced performance and image quality
• FreeSync™ Technology: For smooth, tear-free gaming experiences
• DirectX® 12 Ultimate and Vulkan® Optimized
• DirectStorage and AMD Smart Technologies: Optimized for fast load times and smart gaming performance

System Requirements:

• Power Supply: Minimum 700W with two 8-pin power connectors
• Operating System: Windows 10/11 (64-bit), Linux® supported
• PCI Express Slot: One X16 lane available
• Memory: Minimum 8GB system memory (16GB recommended)

Form Factor:

• Size: 320mm (L) x 128.75mm (W) x 52.57mm (H)
• Power Consumption: 270W Total Board Power
• Slot Size: 2.5 slot, ATX
