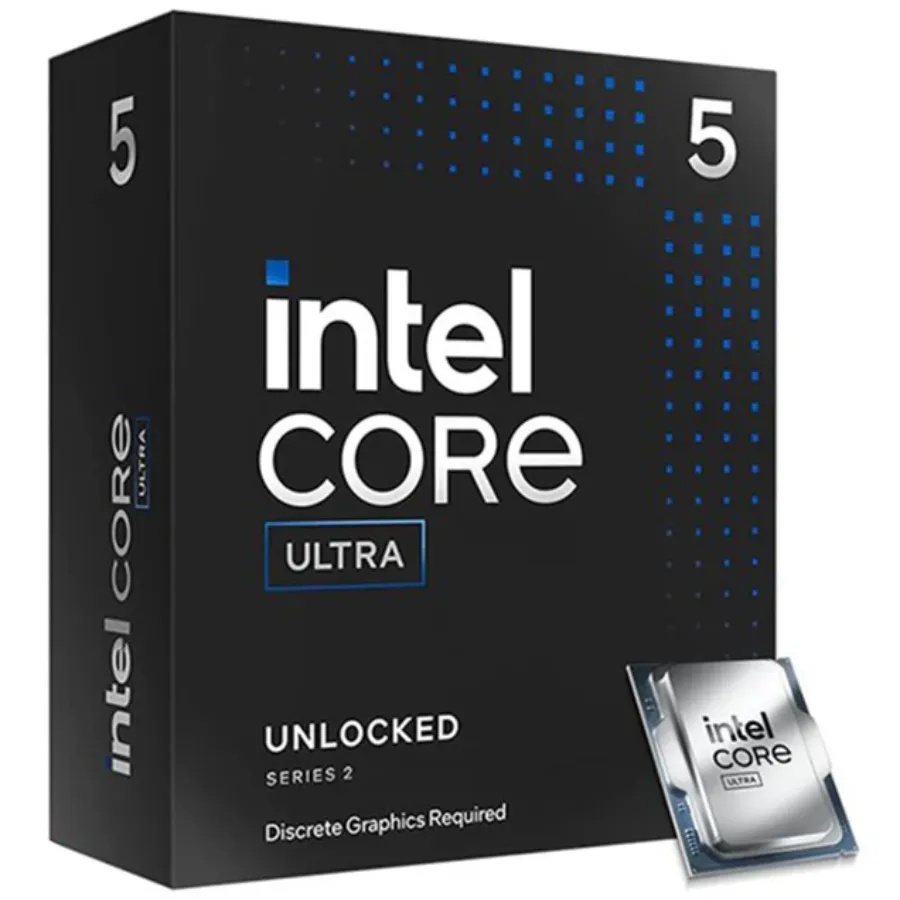

Intel Core Ultra 5 245KF Processor - SpecificationsGeneral Information

• Product Collection: Intel® Core™ Ultra Processors (Series 2)
• Code Name: Arrow Lake
• Segment: Desktop
• Processor Number: 245KF
• Overall Peak TOPS (Int8): 22
• Launch Date: Q4 2024
• Recommended Price: $294.00 - $304.00

CPU Specifications

• Total Cores: 14 (6 Performance-cores, 8 Efficient-cores)
• Total Threads: 14
• Max Turbo Frequency: 5.2 GHz
• Performance-core Max Turbo Frequency: 5.2 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core Base Frequency: 4.2 GHz
• Efficient-core Base Frequency: 3.6 GHz
• Cache: 24 MB Intel® Smart Cache
• Total L2 Cache: 26 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 159 W
• Intel® Deep Learning Boost (DL Boost): Yes
• AI Software Frameworks Supported: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography: TSMC N3B

Memory Specifications

• Max Memory Size: 192 GB
• Memory Type: Up to DDR5 6400 MT/s
• Maximum Memory Speed: 6400 MHz
• Max Number of Memory Channels: 2

NPU Specifications

• NPU Name: Intel® AI Boost
• NPU Peak TOPS (Int8): 13
• Sparsity Support: Yes
• Windows Studio Effects Support: Yes
• AI Software Frameworks Supported: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• DMI Revision: 4
• Max DMI Lanes: 8
• Intel® Thunderbolt™ 4: Yes
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCIe Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
• Max PCIe Lanes: 24

Package Specifications

• Socket: FCLGA1851
• Thermal Solution Specification: PCG 2020A
• Max Operating Temperature: 105°C
