A30 Neo Specifications

Model Name: A30 Neo

Cooling Type: Air Cooling

Dimensions: 98 x 86 x 146 mm (DWH)

Fan Dimensions: 92 x 92 x 25 mm

Type: PWM Fan

Speed Range: 800 - 2000 RPM

Airflow: Up to 43.82 CFM

Noise Level: 23.2 dB (A) ± 20%

Air Pressure: 2.11 mm H₂O (Max)

Connector Type: 4 pin PWM

Rated Voltage: 12 VDC

Rated Current: 0.20 A

Heat Pipe Dimension: Φ6 mm

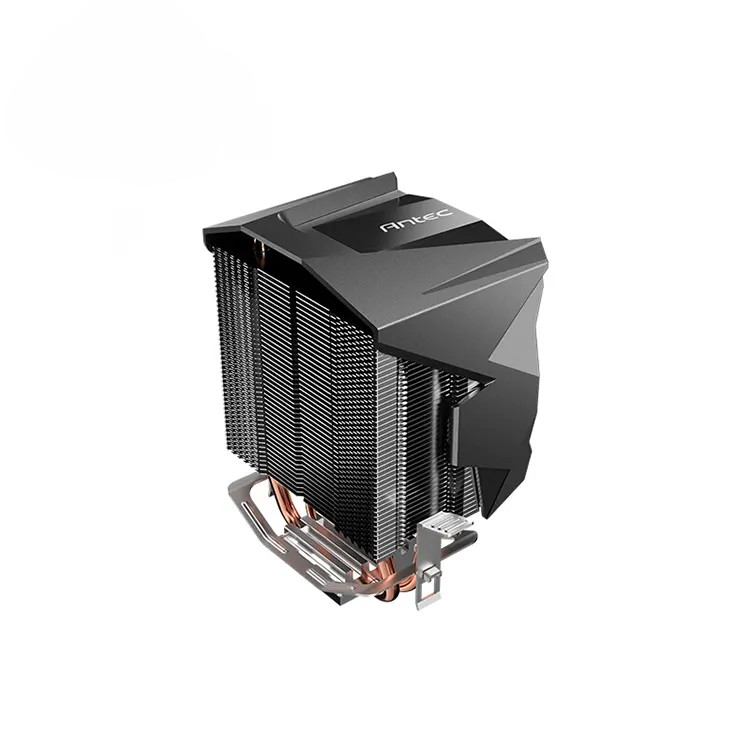

Heat Sink Material: 2 Heat Pipes, Aluminum Fins

Socket Compatibility:

Intel Core i3: 775 / 115X / 1200 / 1700

Intel Core i5: 775 / 115X / 1200 / 1700

AMD: AM3 / AM4 / AM5

Net Weight: 360 g

Gross Weight: 460 g

Key Features

Efficient Cooling: With a max airflow of 43.82 CFM and a noise level of only 23.2 dB, it provides effective cooling with minimal noise.

Versatile Compatibility: Compatible with a range of Intel and AMD sockets, making it a flexible choice for various builds.

PWM Control: The PWM feature allows for dynamic speed adjustment based on temperature, optimizing performance and noise levels.
