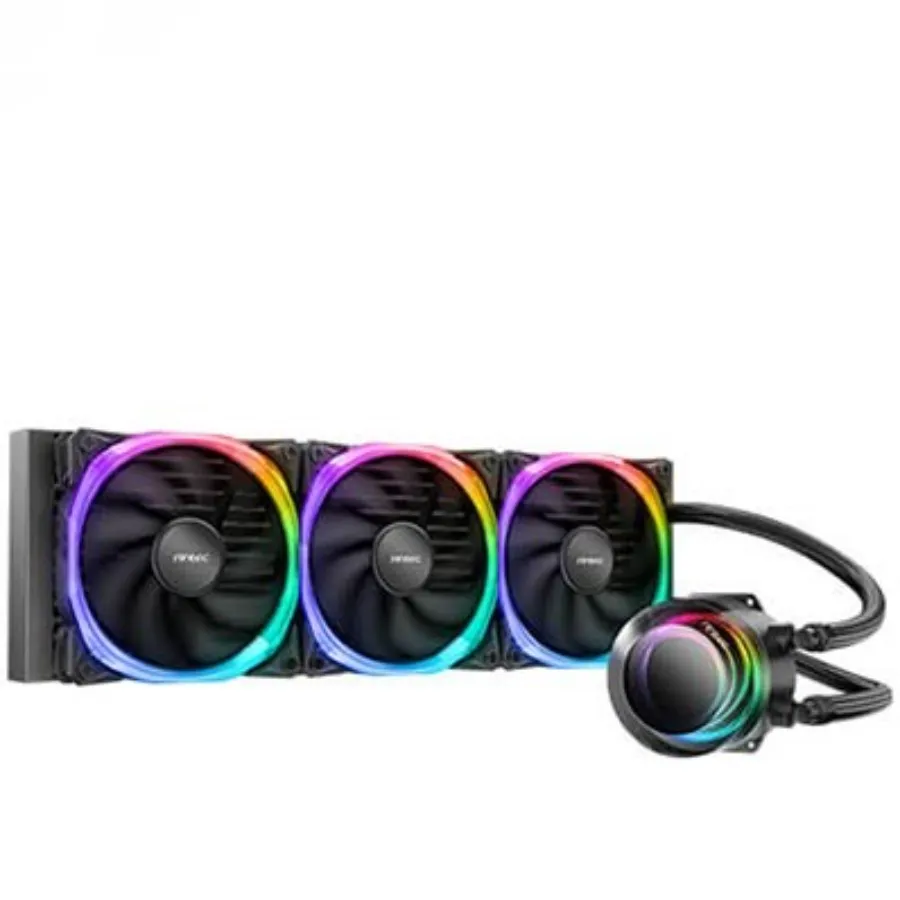

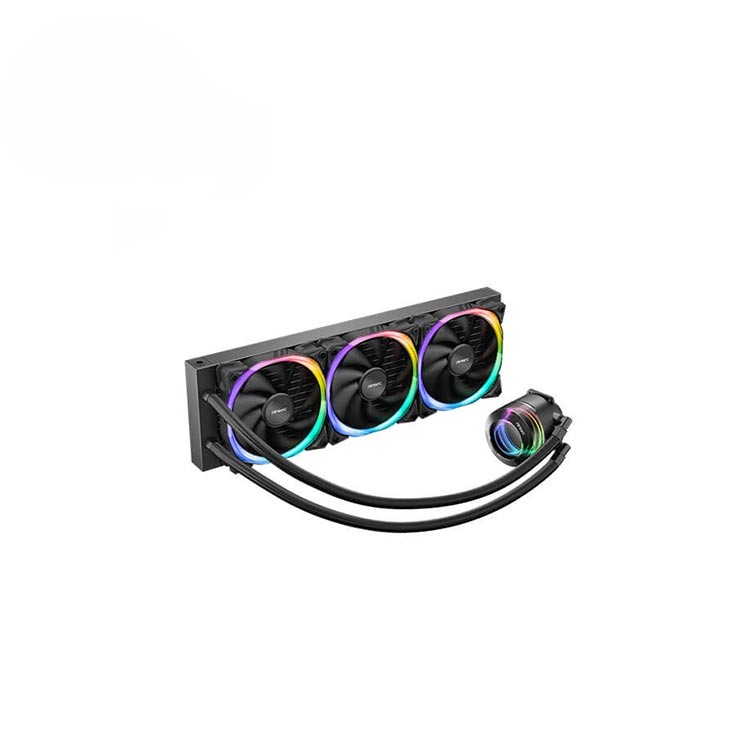

Radiator Dimensions 397 x 120 x 27 mm

Radiator Material Aluminum

Tdp Number

Vortex360 280W

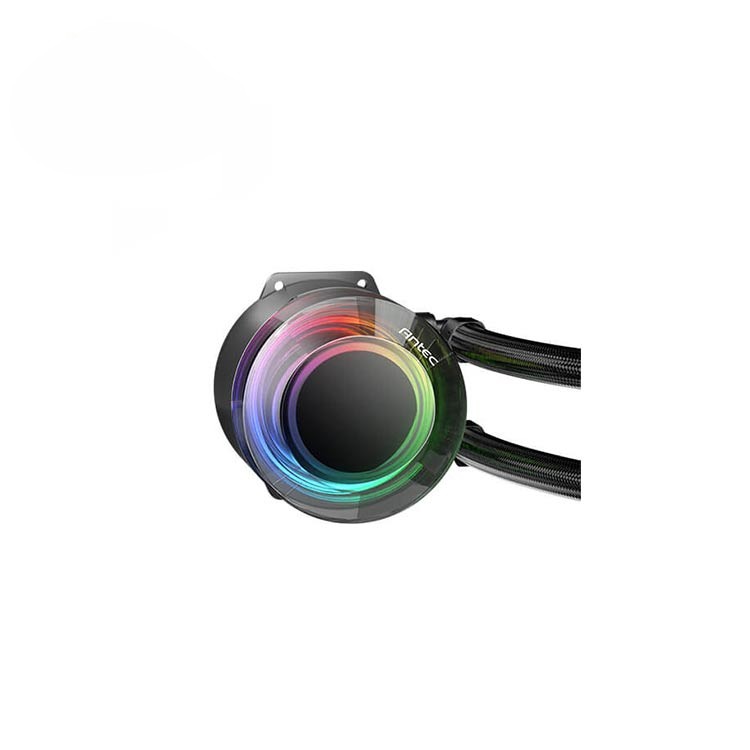

Pump

Dimensions ￠67 x 48.5 mm

Rating Voltage DC 12 V

Minimum Startup Voltage ≥ 5.0 V

Fan Speed 2800±10% RPM

Rated Current 0.25±20% A

Consumed Power 3.0 W

Flow rate ≥ 1300 mL/min

Water Pressure 1.4M

Operation Temperature -10°C ~ +60°C

Noise Level ≤ 28 dB(A)

Lifespan 40,000 hours

Connector PUMP: 3-pin | LED: 3-pin

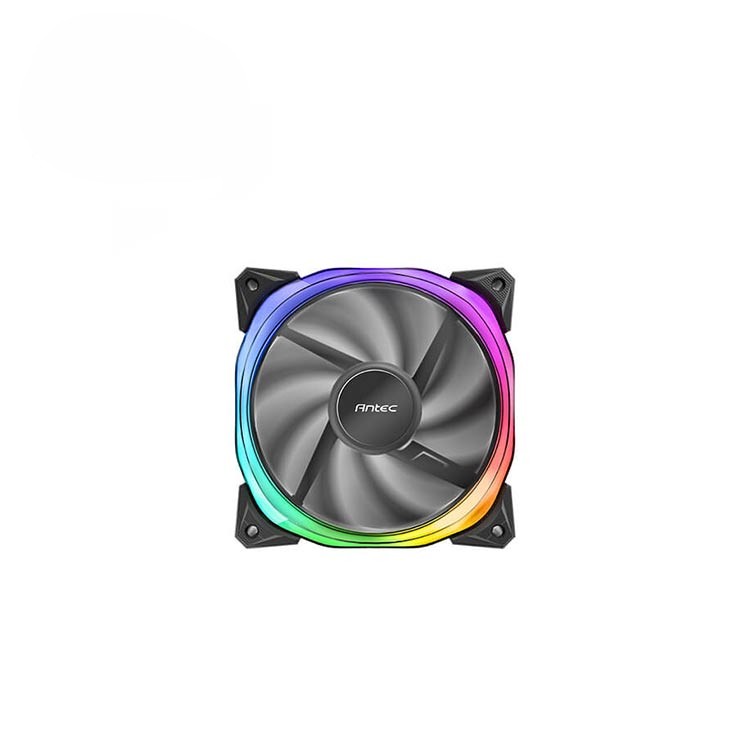

Fan

Model Name Fusion 120 ARGB fan (AH12012FM1)

Fan Type PWM Fan

Dimensions 120 x 120 x 25 mm

Bearing Type Hydraulic Bearing

LED Type Addressable RGB

Fan Speed 600±200 ~ 2000±10% RPM

Airflow 57.93 CFM (max.)

Air Pressure 2.11 mmH₂O (max.)

Fan Noise Level 31.24 dB(A)

Lifespan 40,000 hours

Connector FAN: 4-pin PWM | LED: 3-pin

Rated Voltage FAN: DC 12 V | LED: DC 5 V

Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V

Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A

Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX

AMD : AM3 / AM4 / TR4 / AM5
