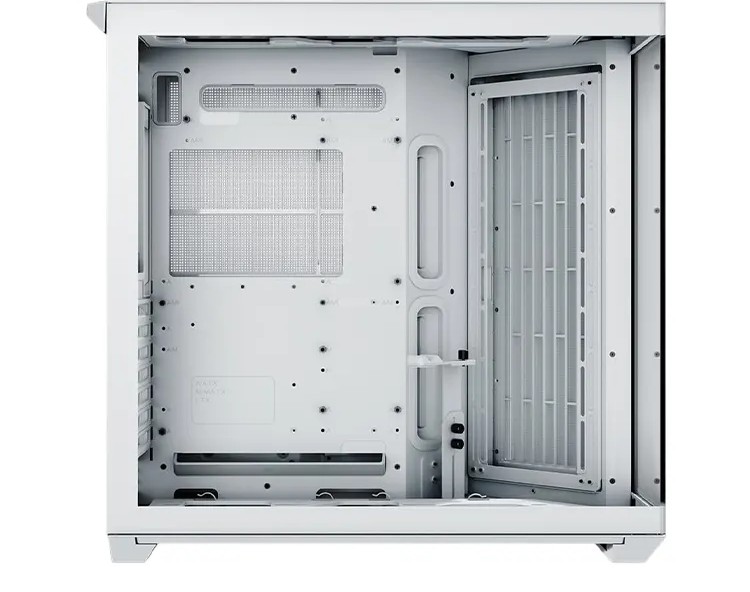

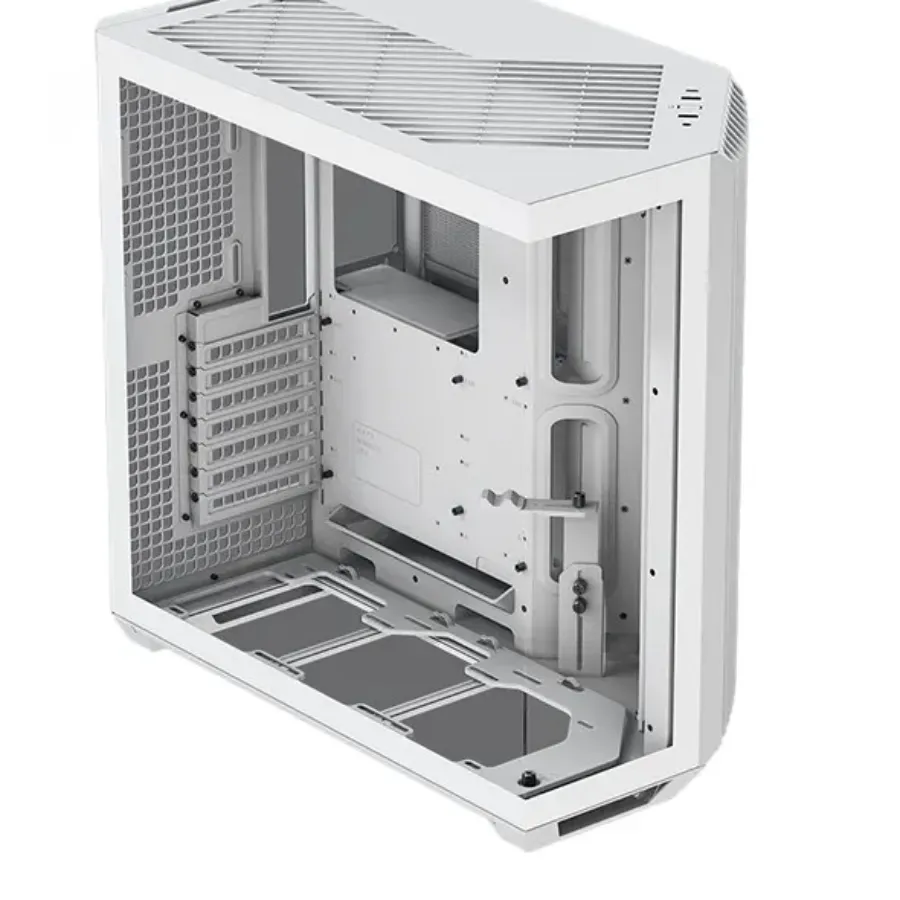

Case Specifications:

Case Type: Mid-Tower

Color Options: White, Black, Black/White

Materials: SGCC with a sturdy ABS front panel

Motherboard Support: ATX, Micro-ATX, Mini-ITX

Dimensions:

Internal: 290 × 460 × 480 mm (W × H × D)

Overall: 290 × 485.5 × 500 mm (W × H × D)

Storage Options:

3.5” Drive Bays: Up to 2 (compatible with 2.5” drives)

2.5” Drive Bays: Up to 6 (4 dedicated + 2 combo with 3.5”)

Expansion & Compatibility:

Expansion Slots: 7

GPU Clearance: Up to 395mm (without front-right radiator)

CPU Cooler Clearance: Up to 170mm

Cooling Support:

Air Cooling:

Front-Right: 3 × 120mm or 2 × 140mm / 160mm

Top: 3 × 120mm or 2 × 140mm

Bottom: 3 × 120mm or 2 × 140mm

Rear: 1 × 120mm

Liquid Cooling:

Front-Right, Top, Bottom: Supports radiators up to 360mm

Rear: 120mm radiator support

Note: Bottom liquid cooling is not recommended unless the motherboard is positioned higher

Additional Features:

Filters: Built-in top filter, removable front-right, side, and bottom filters

I/O Ports:

1 × USB 3.2 Gen 2×2 Type-C

2 × USB 3.2 Gen 1 Type-A

Audio & Mic jacks

Cable Management Depth: 90mm

PSU Support: ATX PSU up to 220mm (optional)

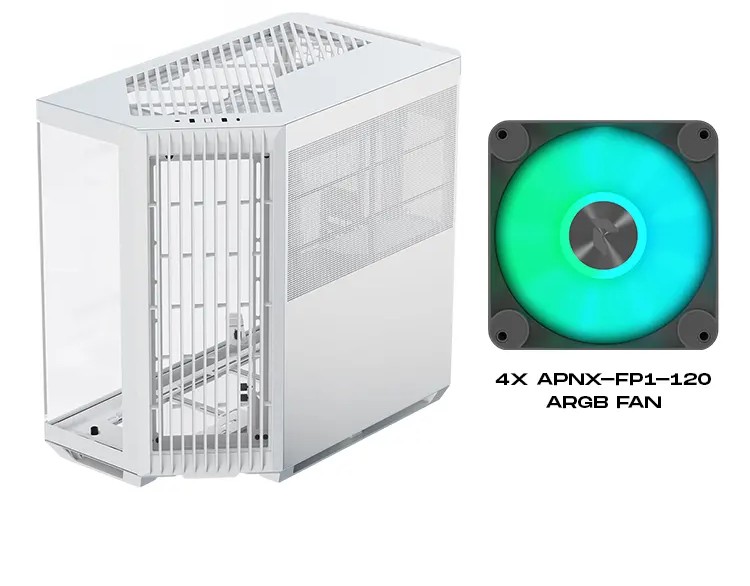

APNX FP1-120 Black Performance ARGB Fan

Fan Specifications:

Size: 120mm

Speed: 500–1600 RPM

Airflow: 74.6 CFM

Air Pressure: 2.26 mmH₂O | 1.67 mmH₂O

Noise Level: 33.2 dBA

Bearing Type: Hydraulic, MTBF 60,000 hours

Connectors: PWM 4-pin + ARGB 3-pin

Features: Shock-absorbing pads, high airflow, ideal for cases & coolers
