Category: Above 750W

Form Factor: ATX

ATX Version: ATX 12V Ver. 3.0

Wattage: 1250W

80 PLUS Certification: 80 PLUS Gold

Electrical Specifications

PFC: Active PFC

Input Voltage: 100-240V

Input Current: 15-7A

Input Frequency: 50-60Hz

Efficiency: ≥90% @ Typical Load

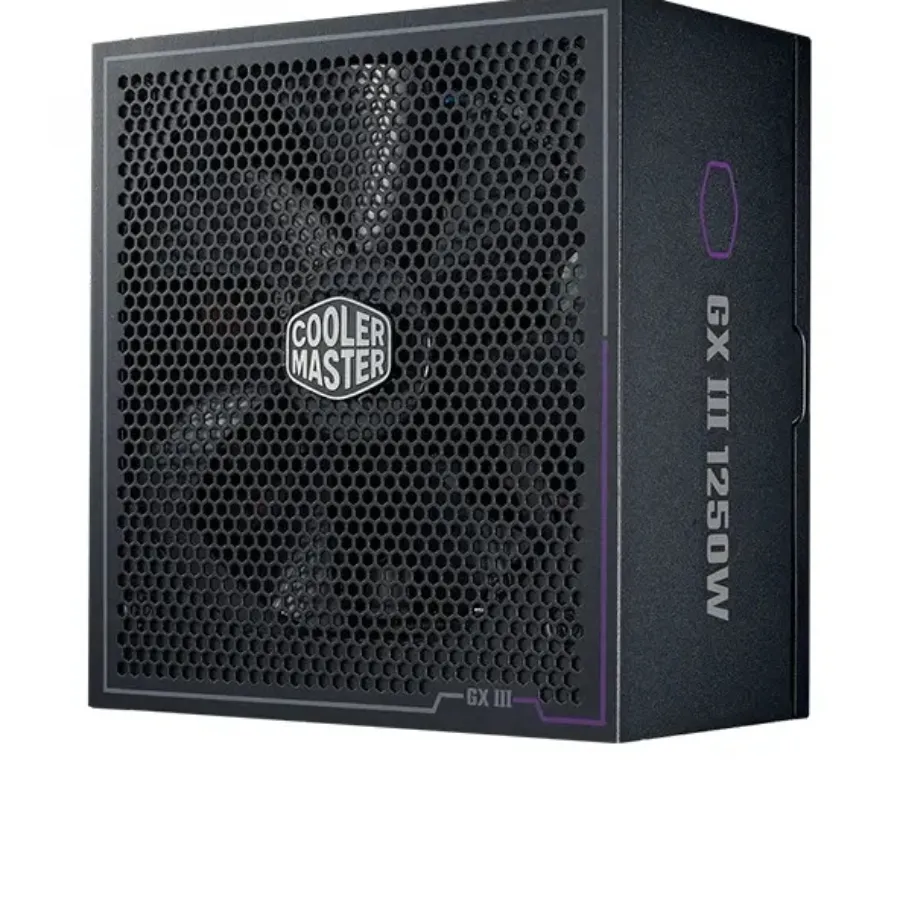

Cooling System

Fan Size: 135mm

Fan Bearing: FDB (Fluid Dynamic Bearing)

Fan Speed: 2300 RPM

Zero-RPM Mode: Yes (Smart Thermal Control)

Physical Dimensions

Dimensions (L x W x H): 160 x 150 x 86 mm

Environmental & Reliability

Operating Temperature: 0-50°C

MTBF: >100,000 Hours

Power Good Signal: 100 - 150 ms

Hold Up Time: ≥16ms

Protection Features

Safety Protections: OPP, OVP, OTP, OCP, SCP, UVP, Surge & Inrush Protection

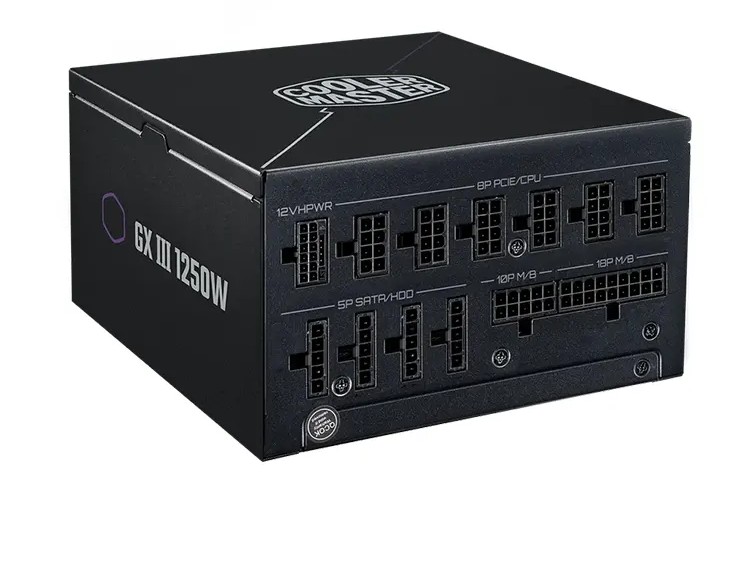

Connectors

ATX 24-Pin: 1

EPS 4+4 Pin: 1

EPS 8 Pin: 1

PCI-e 6+2 Pin: 3

12VHPWR Connector: 1 (90-degree 12+4 pin PCIe 5.0)

SATA Connectors: 12

Peripheral 4-Pin Connectors: 4

Certifications & Compliance

Regulatory Approvals: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Region-specific compliance)

ErP 2014 Lot 3: Yes

Modular Design

Cable Management: Fully Modular
